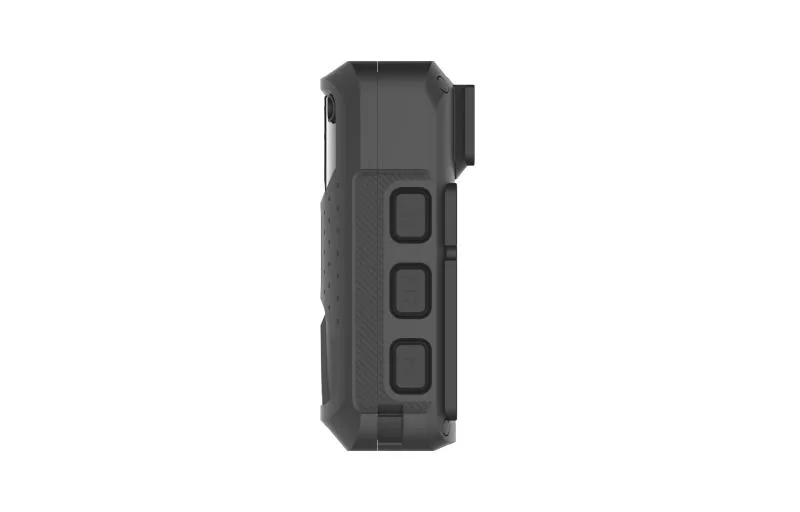

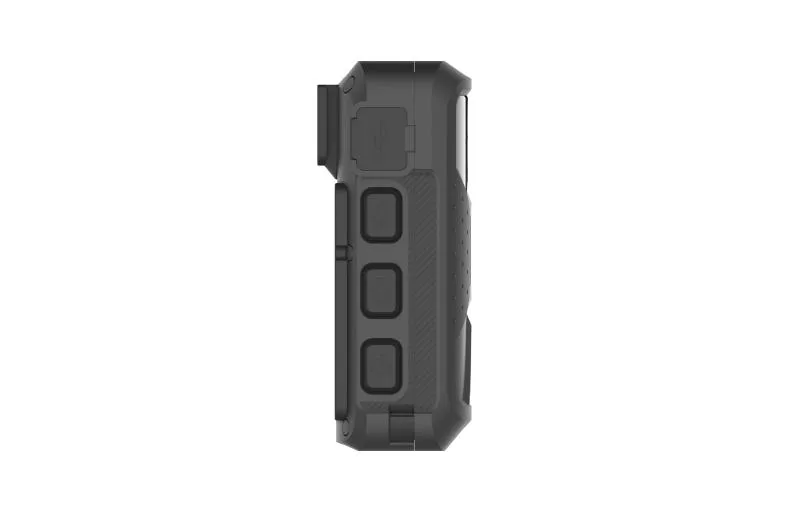

Hikvision DS-MCW407(D)
Markaya göre filtrele
ABB
Absen
Ajax
APart Audio
Aruba
Aselsan
AselsanNET
Astor Şarj
ASUS
Atlas Turnike
Bawcon
Biwin
Bosch
Bticino
BULLWARK
CamBox
CAME
Cenova
Commax
Dahua
Dayline
Dayzip
Decon
Dell
DSC Alarm
EATON
Endikal
Eşarj
EZVIZ
FAAC
Fanvil
Finder
Formrack
Fujitron
Gigaset
Global
GVD
Hikvision
HiLook
Hochiki
HP
Imou
Inform
Inter-M
Jabra
Kamera Kutusu
Karel
Lande
Legrand
Leyard
LifeSmart
Mavili
Multitek
Netelsan
NETGEAR
Neutron
Nice
Notifier
Omada
Osram
Özak
Panasonic
Paradox
Philips
Proxsen
QNAP
Rapoo
Reyee
Ruijie
Schneider Electric
Seagate
Suprema
Teknim
Teknosec
Teletek
Tenda
Tescom
Tiandy
TOA
Toshiba
TP-Link
Ttec
Ubiquiti
Unilumin
Uniwiz
UNV
Vestel
vGUARD
Westa
Western Digital
Wisetech
ZES
ZKTeco
ZYXEL
Eşleşen marka yok.
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
1080p HD recording.. IR function to recognize the facial features in the captured picture even in dim environment.. Realtime status transmitted to central platform via 4G connection, which include GPS and live view.. Built-in battery good for a full-shift work.. Small size, light weight, and convenient to carry.. Large-button in the front for press-and-play recording.
Teknik özellikler
| CPU | Single core, 32 bit, Main frequency: 0.96 GHz |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Max. Recording Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.07 Lux @ (F2.2, AGC ON), 0 Lux with supplement light |
| Day & Night | Switch IR cut filter automatically |
| Zoom | 4x Digital |
| White Light | 1 white light(s) |
| Focal Length | 2.4 mm fixed lens |
| FOV | Horizontal FOV: 135°, Vertical FOV: 75°, Diagonal FOV: 145° |
| Aperture | F2.2 |
| Video Compression | H.264,H.265 |
| Video Format | MP4,PS |
| Main Stream | 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576) |
| Pre-record & Post-record | Pre-record: 10 s, Post-record: 60 s |
| Sub-Stream | 30 fps (1280 × 720, 720 × 576) |
| Audio Compression for Video Recording | G722_1,AAC |
| Audio Compression for Audio Recording | PCM |
| Audio Compression for Group Intercom | G711_A,G711_MU,G722_1 |
| Audio Bit Rate | G711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps),PCM(128 kbps) |
| Image Format | JPEG |
| Image Resolution | 5 MP, 16 MP, 30 MP, 40 MP |
| Image Stabilization Algorithm | Not supported |
| Display Resolution | 320 × 240 |
| Screen Size | 2.0" |
| Touchscreen | Supported |
| Screen Brightness | Typical value: 500 cd/m² |
| RAM | 128 MB |
| ROM | 64 GB by default, 128/256 GB optional |
| IR Range | Up to 10 m |
| IR Wavelength | 850 nm |
| Wi-Fi Protocol | 802.11 a/b/g/n |
| Wi-Fi Frequency Band | 2.412 to 2.472 GHz |
| Cellular Network | Only available for models with /GLE: WCDMA: B1/B5/B8,FDD -LTE: B1/B3/B5/B7/B20,TDD -LTE: B38/B40/B41 |
| Positioning Mode | GPS |
| Bluetooth | Not supported |
| NFC | Not supported |
| Protocol | HTTPS, RTSP, NTP, FTP |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP |
| Encryption | AES128，AES256 |
| Watermark | Supported |
| Audio Type | 1 built-in mic(s),1 speaker(s) |
| Indicator | 2 indicator(s) for charging/working/recording/exception |
| Button | Power,Video recording,Audio recording,Picture capture,PTT,SOS,Fn |
| SIM Card | Only available for models with /GLE:, 1 Nano-SIM card(s) |
| Charging Interface | Type-C, Pin connection |
| USB | 1 USB 2.0 port(s) |
| Smart Functions | Not supported |
| Basic Event | SOS alarm |
| Group Intercom | Supported for firmware version V2.6.0 or above |
| Operating Condition | -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing) |
| Power | 5 VDC, 2.0 A, max. 10 W |
| Dimensions | 82.6 mm × 58 mm × 29 mm (3.3" × 2.3" × 1.1") |
| Weight | 159.5 g (without mounting) (0.4 lb.) |
| Operating System | Linux |
| Client | Hik-Connect,HikCentral Pro,HikCentral Master,HikCentral Master Lite |
| MIC | Supported |
| Speaker | 1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 87 dB (10 cm) |
| Vibration Motor | Optional |
| Gyroscope | Not supported |
| Battery Type | Lithium-ion battery, integral |
| Capacity | 3220 mAh |
| Charging Time | ≤ 4 h |
| Battery Duration | Up to 12h in 720p resolution¹ |
| RF | EN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014) |
| EMC | CE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014 |
| Safety | CB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IP68: IEC 60529-2013 |
| Drop Test | MIL-STD-810G, 2 m drop test |
| Warranty | 2 years for the device without battery, 1 year for the battery |
