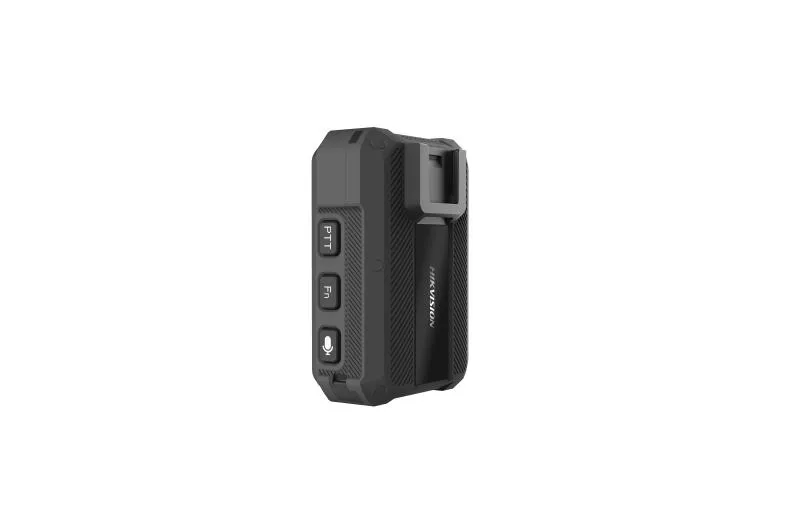

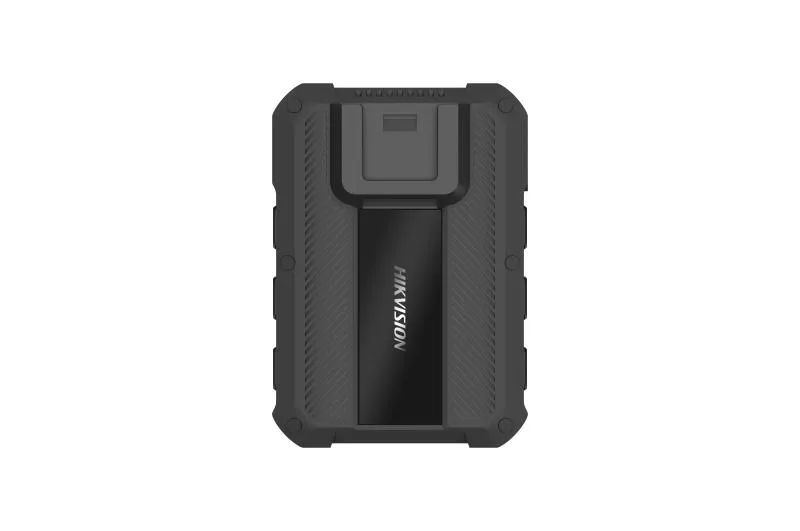

Hikvision DS-MCW40B
Markaya göre filtrele
ABB
Absen
Ajax
APart Audio
Aruba
Aselsan
AselsanNET
Astor Şarj
ASUS
Atlas Turnike
Bawcon
Biwin
Bosch
Bticino
BULLWARK
CamBox
CAME
Cenova
Commax
Dahua
Dayline
Dayzip
Decon
Dell
DSC Alarm
EATON
Endikal
Eşarj
EZVIZ
FAAC
Fanvil
Finder
Formrack
Fujitron
Gigaset
Global
GVD
Hikvision
HiLook
Hochiki
HP
Imou
Inform
Inter-M
Jabra
Kamera Kutusu
Karel
Lande
Legrand
Leyard
LifeSmart
Mavili
Multitek
Netelsan
NETGEAR
Neutron
Nice
Notifier
Omada
Osram
Özak
Panasonic
Paradox
Philips
Proxsen
QNAP
Rapoo
Reyee
Ruijie
Schneider Electric
Seagate
Suprema
Teknim
Teknosec
Teletek
Tenda
Tescom
Tiandy
TOA
Toshiba
TP-Link
Ttec
Ubiquiti
Unilumin
Uniwiz
UNV
Vestel
vGUARD
Westa
Western Digital
Wisetech
ZES
ZKTeco
ZYXEL
Eşleşen marka yok.
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
1080p HD recording.. The recorded videos can be uploaded to the central video platform via 4G wireless communication.. Supports IR night vision. Even in the dark scene, the facial features of the persons in the scene can be recognized clearly.. High IP level to support all-weather filed operation.. Built-in battery with large capacity, supporting longer working hour.. Small size, light weight, and convenient to carry.
Teknik özellikler
| CPU | Single core, 32 bit, Main frequency: 0.96 GHz |
|---|---|
| Image Sensor | 1/3" progressive scan CMOS |
| Max. Recording Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.07 Lux @ (F2.2, AGC ON), 0 Lux with supplement light |
| Day & Night | Switch IR cut filter automatically |
| Zoom | 4x Digital |
| White Light | Supported |
| Focal Length | 2.4 mm fixed lens |
| FOV | Horizontal FOV: 135°, Vertical FOV: 75°, Diagonal FOV: 145° |
| Aperture | F2.2 |
| Video Compression | H.264,H.265 |
| Video Format | PS,MP4 |
| Main Stream | 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576) |
| Pre-record & Post-record | Pre-record: 10 s, Post-record: 60 s |
| Sub-Stream | 30 fps (1280 × 720, 720 × 576) |
| Audio Compression for Video Recording | G722_1,AAC |
| Audio Compression for Audio Recording | PCM |
| Audio Compression for Group Intercom | G711_A,G711_MU,G722_1 |
| Audio Bit Rate | G711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps),PCM(128 kbps) |
| Image Format | JPEG |
| Image Resolution | 5 MP, 16 MP, 30 MP, 40 MP |
| Image Stabilization Algorithm | Not supported |
| Display Resolution | 320 × 240 |
| Screen Size | 2.0" |
| Touchscreen | Supported |
| Screen Brightness | Typical value: 520 cd/m² |
| RAM | 128 MB |
| ROM | 64 GB by default, 128/256 GB optional |
| IR Range | Up to 10 m |
| IR Wavelength | 850 nm |
| Wi-Fi Protocol | 802.11 a/b/g/n |
| Wi-Fi Frequency Band | 2.412 to 2.472 GHz |
| Cellular Network | Only available for models with /GLE: GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20 TDD -LTE: B38/B40/B41 |
| Positioning Mode | GPS |
| Bluetooth | Not supported |
| NFC | Not supported |
| Protocol | HTTPS, RTSP, NTP, FTP |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP |
| Encryption | AES128, AES256 |
| Watermark | Supported |
| Audio Type | 1 built-in mic(s) |
| Indicator | 2 indicator(s) for charging/working/recording/exception |
| Button | Power,Video recording,Tag,Fn,PTT |
| SIM Card | Only available for models with /GLE: 1 Nano-SIM card(s) |
| Charging Interface | Type-C, Pogo Pin |
| USB | 1 USB 2.0 port(s) |
| Face Picture Recognition | Not supported |
| Face Picture Capture | Not supported |
| License Plate Recognition | Not supported |
| Smart Event | Not supported |
| Group Intercom | Supported for firmware version V2.6.0 or above |
| Operating Condition | -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing) |
| Power | 5 VDC, 2.0 A, max. 10 W |
| Dimensions | 83 mm × 58 mm × 33 mm (3.3" × 2.3" × 1.3") |
| Weight | 167 g (without mounting) (0.4 lb.) |
| Operating System | Linux |
| Client | Hik-Connect,HikCentral Pro,HikCentral Master |
| MIC | Supported |
| Speaker | 1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 87 dB (10 cm) |
| Vibration Motor | Not supported |
| Gyroscope | Not supported |
| Battery Type | Lithium-ion battery, integral |
| Capacity | 3220 mAh |
| Charging Time | ≤ 4 h |
| Battery Duration | Up to 12h in 720p resolution¹ |
| RF | EN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014) |
| EMC | CE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014 |
| Safety | CB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IP68: IEC 60529-2013 |
| Drop Test | MIL-STD-810G, 2 m drop test |
| Warranty | 2 years for the device without battery, 1 year for the battery |
