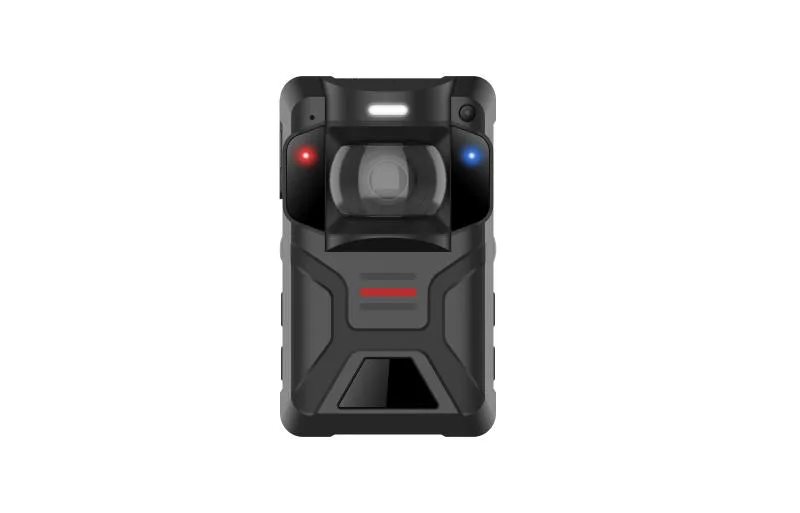

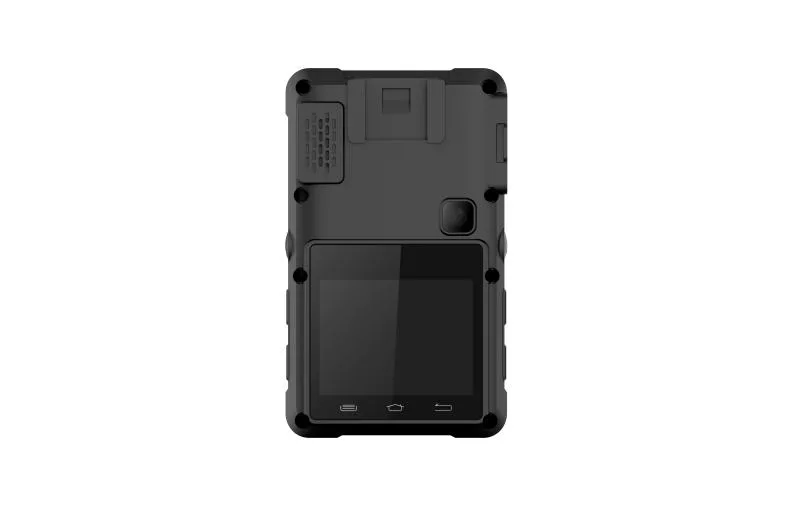

Hikvision DS-MCW40C

Markaya göre filtrele

Hikvision DS-MCW40C
Hikvision

Hikvision DS-MCW40C

Model kodu
DS-MCW40C
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Resolution options include D1,720P, 1080P, and 2K (without EIS).. Max. 40 M (8832 × 4960) resolution of the captured picture.. IR function to recognize the facial features in the captured picture even in dim environment.. Waterproof, dustproof, and anti-fall with 2 m fall protection height, applicable to all-day fieldwork.. 4G/Wi-Fi network connection with flexible wireless transmission.

Teknik özellikler

Image Sensor 1/3" progressive scan CMOS
Max. Recording Resolution 2688 × 1512
Min. Illumination Color: 0.11 Lux @ (F2.2, AGC ON), 0 Lux with supplement light
Day & Night Switch IR cut filter automatically
White Light Supported
Aperture F2.2
FOV Horizontal FOV: 132°, Vertical FOV: 72°, Diagonal FOV: 148°
Focal Length 2.4 mm fixed lens
Main Stream 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 720 × 576)
Pre-record & Post-record Pre-record: 60/10/5/3 s, Post-record: 60/10/5/3 s
Sub-Stream 30 fps (1920 x 1080, 1280 × 720, 720 × 576)
Video Compression H.264,H.265
Video Format MP4,PS
Audio Bit Rate G722(16 kbps) ,AAC(dynamic),PCM(256 kbps),G711.A(64 kbps) ,G711.U(64 kbps)
Audio Compression for Video Recording AAC,G722
Audio Compression for Audio Recording PCM
Audio Compression for Group Intercom G711.A,G711.U,G722
Image Format JPEG
Resolution 40 M (8832 × 4960),30 M (7296 × 4104),16 M (5312 × 2988),5 M (3072 × 1728)
Image Stabilization Algorithm GIS: Optional
Screen Size 2.0"
Touchscreen Supported
Display Resolution 320 × 240
Screen Brightness Typical value: 500 cd/m²
RAM 2 GB
ROM 64 GB by default, 128/256 GB optional
IR Range Up to 10 m
IR Wavelength 850 nm
Wi-Fi Protocol 802.11 a/b/g/n/ac
Positioning Mode GPS
Wi-Fi Frequency Band 2.412 to 2.472 GHz,5.15 to 5.25 GHz,5.725 to 5.875 GHz
Bluetooth BT4.2
Cellular Network GSM: 850/900/1800/1900,WCDMA: B1/B2/B4/B5/B8, FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28, TDD-LTE: B38/B39/B40/B41
API ISAPI,SDK,ISUP
Protocol HTTPS, RTSP, NTP, FTP
Encryption AES128, AES256
Watermark Supported
Button Power,Video recording,PTT,SOS,Picture capture,Audio recording
Charging Interface Type-C, Pogo Pin
Indicator 2 indicator(s) for charging/working/recording/exception
Laser Positioning Supported
SIM Card 1 Nano-SIM card(s)
USB 1 USB 2.0 port(s)
Audio Type 1 built-in mic(s),1 speaker(s)
Face Picture Capture Supported
Basic Event SOS alarm
Power 5 VDC, 2.0 A, max. 10 W
Weight 215 g (without mounting) (0.5 lb.)
Dimensions 100 mm × 60 mm × 38 mm (3.9" × 2.4" × 1.5")
Speaker 1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 95 dB (10 cm)
Client HikCentral Pro,HikCentral Master
Operating System Android 9.0
Operating Condition -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
Vibration Motor Supported
Gyroscope Supported
Battery Type Lithium-ion battery, integral
Capacity 3220 mAh
Charging Time ≤ 4 h
Battery Life Up to 10h in 720p resolution¹
EMC CE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014
Environment CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006,CE-RoHS: EN IEC63000:2018
Protection IP68: IEC 60529-2013
RF EN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014),CE-RED: EN 300 330V2.1.1
Safety CB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017
Drop Test MIL-STD-810G, 2 m drop test
Warranty 2 years for the device without battery, 1 year for the battery
