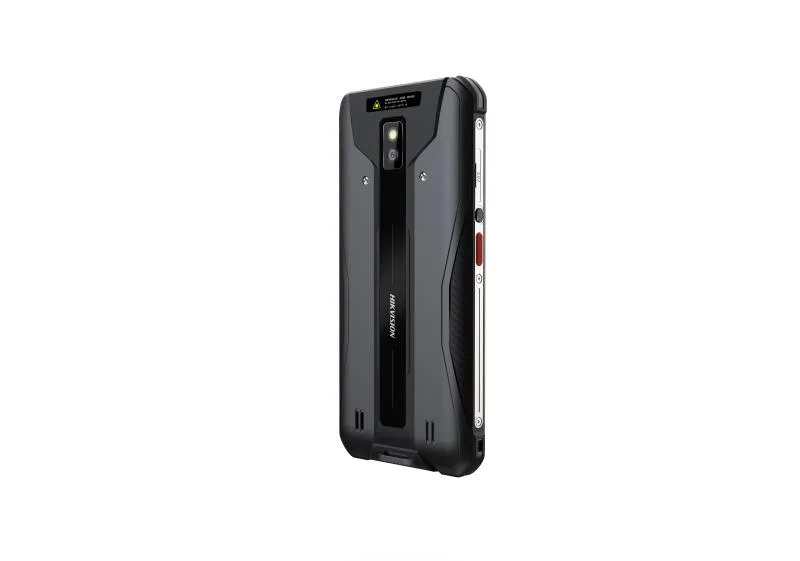

Hikvision DS-MDT201

Markaya göre filtrele

Hikvision DS-MDT201
Hikvision

Hikvision DS-MDT201

Model kodu
DS-MDT201
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Support various one-dimensional codes ：EAN/UPC/ISBN13/Codabar/ITF25/ITF14/Matrix25/Code39/Code93/Code128/Code11/MSI/IND25. Support various QR codes ：DM/QR/MicroQR/Aztec. Support continuous code scanning and single code scanning. Scanning interval: 10-2000ms. Support NFC protocol; Support ISO15693, ISO14443A/B, ISO14443A. It can quickly identify blurry, distorted and dirty barcodes

Teknik özellikler

Image Sensor Front camera: 5 MP; Fix-focus Rear camera: 13 MP; Auto-focus
Max. Resolution 1920 × 1080
Flashing Light Supported
Zoom 4x Digital
Focal Length Front camera: 2.23 mm Rear camera: 3.44 mm
FOV Front camera: Horizontal FOV: 61.3°, Vertical FOV: 46° Rear camera: Horizontal FOV: 67.9°, Vertical FOV: 53.7°
Aperture Lens 1: F2.2 Lens 2: F2.2
Screen Size 5.5"
Screen Type IPS; Capacitive touch panel; multi-touch
Resolution 720 × 1440
CPU 8cores,2.0GHz
RAM 4 GB
ROM 64GB
Extended Storage 1 TF card (Max. 256 GB)
Wi-Fi Working Mode STATION;AP
Cellular Network FDD -LTE: B1/B3/B8 TDD -LTE: B38/B39/B40/B41
Wi-Fi Protocol 802.11 a/b/g/n/ac
Wi-Fi Frequency Band 2.412 to 2.472 GHz, 5.15 to 5.25 GHz, 5.725 to 5.875 GHz
Bluetooth BT5.0
Positioning Mode GPS
NFC Working Frequency: 13.56 MHzProtocol Standard: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.Label Standard: M1 card (S50, S70), CPU card, NFC label, etc.
Button Side Keys Volume+,Volume-,Left Scan Key, Right Scan Key,Power Button,Function Key
SIM Card Only available for models with /GLE /5G:2 (Nano-SIM)
Charging Interface Type-C
USB USB 2.0
Fingerprint Module Not supported
Operating System Android 10.0
Dimension 157 mm × 75 mm × 14 mm (6.2" × 3.0" × 0.6")
Weight 240 g (0.5 lb.)
Material Antimicrobial casing, easy to disinfect. Blue-white, cozy for Healthcare.
Power 5 VDC, 2.0 A, max. 10 W
Client MDM
OCR Supported;Not supported
Vibration Motor Supported
MIC Supported
Speaker 1 Built-in speaker, Max. power consumption: 1 W, Max. sound pressure level: 103dB (10 cm)
Gyroscope Supported
G-sensor Supported
Distance Sensor Supported
Light Sensor Supported
Drop Specifications 1.5 m
Sealing IP68
Operating Condition -10 °C to 55 °C (14 °F to 131 °F). Humidity 95% or less (non-condensing)
Electro Static Discharge (ESD) ±15KV air discharge
Battery Type Lithium-ion battery, integral
Capacity 4900 mAh
Charging Time ≤ 4 h
Battery Duration Standby Time > 500h
RF EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
Safety CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020 CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP68: IEC 60529-2013, MIL STD 810G
Standard Accessories USB cable*1, power adapter*1,Wrist Strap*1
Optional Accessories Single Charging Dock, Six Bays Charging Base, Scan Handle (Only DS-MDT201/4&64G/GLE/AI support)

Dokümanlar

Data Sheet - Handheld Scanner Quick Start Guide - Handheld Scanner
