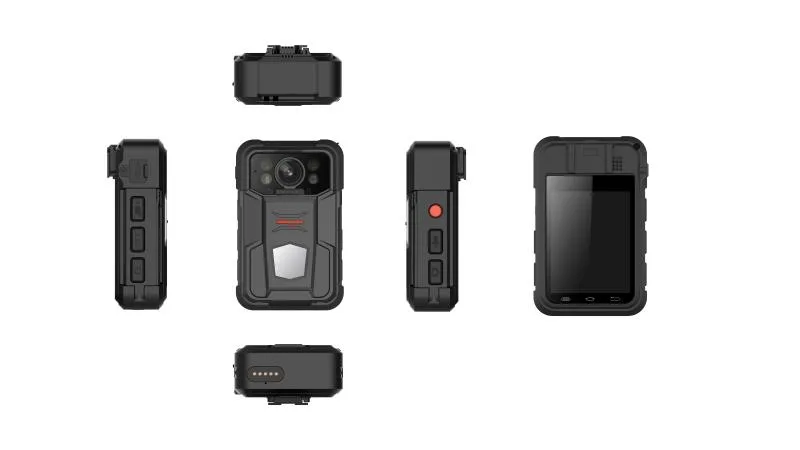

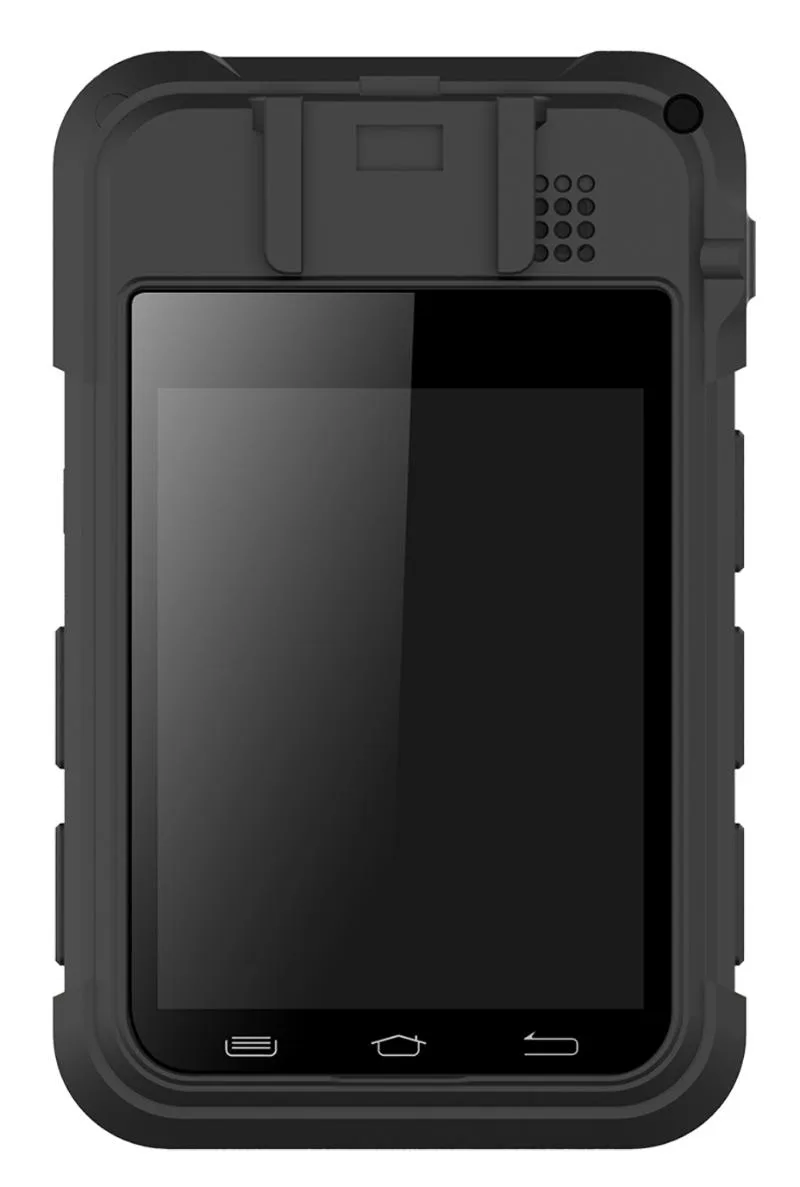

Hikvision DS-MH2311/5G(C)

Markaya göre filtrele

Hikvision DS-MH2311/5G(C)
Hikvision

Hikvision DS-MH2311/5G(C)

Model kodu
DS-MH2311/5G(C)
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2K recording.. Max. 40 M (8832 × 4960) resolution of the captured picture.. Transmits videos to central video platform via 5G wireless communication.. Dual positioning modules of GPS and Beidou, uploading the location information to the center in real time.. IR function to recognize the facial features in the captured picture even in dim environment.. Waterproof, dustproof, and anti-fall with 1.8 m fall protection height, applicable to all-day field work.. 3G/4G/5G/Wi-Fi network connection with flexible wireless transmission.

Teknik özellikler

Image Sensor 1/3" progressive scan CMOS
Max. Recording Resolution 2560 × 1440
Min. Illumination Color: 0.15 Lux @ (F2.0, AGC ON), 0 Lux with supplement light
Day & Night Switch IR cut filter automatically
White Light Supported
Zoom 4 × digital
Aperture F2.2
FOV Horizontal FOV: 134°, Vertical FOV: 75°, Diagonal FOV: 154°
Focal Length 2.4 mm fixed lens
Main Stream 60 Hz: 30 fps (2560× 1440,1920 × 1080, 1280 × 720, 720 × 576)
Pre-record & Post-record Pre-record: 60/10/5/3 s, Post-record: 60/10/5/3 s
Sub-Stream 30 fps (1920 × 1080, 1280 × 720, 720 × 576)
Video Compression H.264,H.265
Video Format MP4,PS
Audio Bit Rate G722(16 kbps) ,AAC(dynamic),PCM(256 kbps),G711.A(64 kbps) ,G711.U(64 kbps)
Audio Compression for Video Recording G722,AAC
Audio Compression for Audio Recording PCM
Audio Compression for Group Intercom G711.A,G711.U,G722
Image Format JPEG
Display Resolution 320 × 240
Screen Size 2.4"
Touchscreen Supported
RAM 4 GB
ROM EMMC 64 GB
IR Range Up to 10 m
IR Wavelength 850 nm
Bluetooth BT5.1
Cellular Network TDD-LTE: B34/B38/B39/B40/B41, TDD-LTE: B1/B3/B5/B8, WCDMA: B1/B8, GSM: 900/1800,5G NR SA: N1/N28/N41/ N78/ N79,5G NR NSA: N41/N78/N79
Positioning Mode GPS
Wi-Fi Frequency Band 2.412 to 2.472 GHz
Wi-Fi Protocol 802.11b/g/n
API SDK,ISAPI,ISUP
Protocol NTP,RTSP,RTP,TCP/IP,UDP,DHCP,IPv4
Button Power,Video recording,Audio recording,Picture capture,PTT,SOS
Charging Interface Type-C, Pogo Pin
Indicator 2 indicator(s) for charging/working/recording/exception
Laser Positioning Not supported
SIM Card SIM card slot(fit for nano-SIM card)
USB 1 USB 2.0 port(s)
Audio Type 1 built-in mic(s)
Client HikCentral Pro,HikCentral Master
Dimensions 95 mm × 60 mm × 31.52 mm (3.74" × 2.36" × 1.24")
Operating Condition -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
Operating System Android 11.0
Power 5 VDC, 2.0 A, max. 10 W
Speaker 1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 92 dB (10 cm)
Weight 190 g (without mounting) (0.42 lb.)
Battery Type Lithium-ion battery, dismountable
Capacity 3300 mAh
Charging Time ≤ 4 h
Battery Life Up to 12h in 720p resolution¹
EMC CE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014
Environment CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013,MIL STD 810G
RF EN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014)
Safety CB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017

Dokümanlar

Data Sheet - Android 5G Dismountable Battery Body Camera User Manual - Android 5G Dismountable Battery Body Camera
