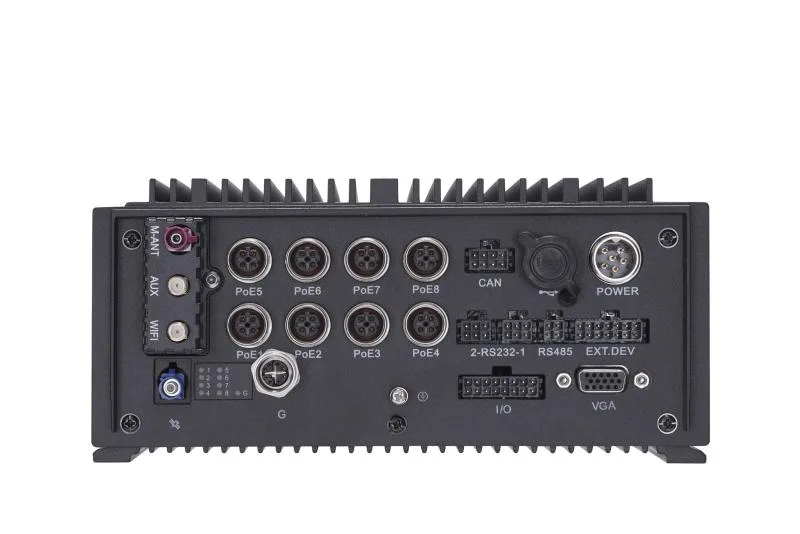

Hikvision DS-MP7608HN(B) - NVR kayıt cihazı

Markaya göre filtrele

Hikvision DS-MP7608HN(B) - NVR kayıt cihazı
Hikvision

Hikvision DS-MP7608HN(B) - NVR kayıt cihazı

Model kodu
DS-MP7608HN(B)
Sistem
Kamera sistemi
Kategori
NVR kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Connects 8-ch IP cameras via PoE interfaces. Connects 8 more IP cameras via PoE switch.. Up to 1080p resolution of H.264/H.265 compression for each IP camera.. One CVBS video output interface. One VGA video output interface with up to 1080p resolution.. 1-ch abnormal detection: fatigue driving, and not looking straight ahead.. 2-ch LPR or 1-ch object recognition (work separately).. Two pluggable 2.5-inch HDDs/SSDs, adopting hard disk vibration damping technology.. Pluggable 3G/4G module and Wi-Fi module providing flexible data transmission solutions.. Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream.. Information collection interfaces collecting driving information such as left/right turning, braking, reversing, etc.. Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.. Wide-range power input (+9 VDC to +32 VDC).. Power-off protection prevents key data from loss.. Supports accessing via WEB browser.. Aluminum die-cast chassis.

Teknik özellikler

IP Camera 16 in total: 8 IP cameras connected via PoE interfaces, 8 IP cameras extendable via PoE interfaces
Two-way Audio 1, integrated in EXT.DEV interface
Video Output 1 CVBS output (PAL: 704 × 576, NTSC: 704 × 480), 1 VGA output (1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768)
Audio Output 1
HDD/SSD 2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD,Dummy HDD with USB 3.0 interface
SD Card 1 × SD card, up to 256 GB
Network Interface Front panel: 1 × 10M/100M/1000M RJ45 Ethernet interface Rear panel: 1 × 10M/100M/1000M M12 Ethernet interface
USB Interface Front panel: 1 × USB 3.0,Rear panel: 1 × USB 2.0 of 5-pin aviation plug
Alarm Input 4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input (reserved)
Alarm Output 2 relay signal outputs
Serial Port 2 × RS-232. 1 × RS-485. 1 × RS-422 (integrated in EXT.DEV interface)
CAN interface 2
Sensor-in 4 high/low level signal inputs
3G/4G Dialing 1 × 3G/4G card slot, 1 × Rosenberger antenna
Wi-Fi WI58 model: 2 × 5.8 G Wi-Fi SMA antenna,WI model: 1 × 2.4 G Wi-Fi SMA antenna
Working Temperature Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F),Other devices: -10 °C to +60 °C (14 °F to 140°F)
Working Humidity 10% to 95%
Power Supply 9 to 32 VDC
Consumption Standby: ≤ 0.5 W,Full load: ≤ 99 W ,Note: Without peripheral and storage media ≤ 20 W
Operating Method Mouse, IR remote control, Web control, and touchscreen
Dimensions (W × D × H) 202 × 267.6 × 93.9 mm (7.95 × 10.5 × 3.7 inch)
Weight (Without Storage Media) 3.66 kg (8.07 lb)
GNSS (Global Navigation Satellite System) GPS (Global Positioning System), 1 × Rosenberger antenna
Video Compression H.264, H.265
Encoding Resolution Main stream: 1080P/720P/WD1/4CIF, sub-stream: 4CIF/2CIF/CIF
Frame Rate PAL: 1 to 25fps; NTSC: 1 to 30fps
Audio Compression G.722
Stream Type Video, video & audio
Audio Bitrate 16 Kbps
Dual Stream Supported
PoE Interface 8 × M12 PoE interface
Max. Consumption 51 W

Dokümanlar

Data Sheet - 8-ch 1080p, 2 x HDD/SSD Mobile Intelligent NVR User Manual - 8-ch 1080p, 2 x HDD/SSD Mobile Intelligent NVR 【Release Note】Mobile Video Recoder V5.3.1 - 8-ch 1080p, 2 x HDD/SSD Mobile Intelligent NVR
