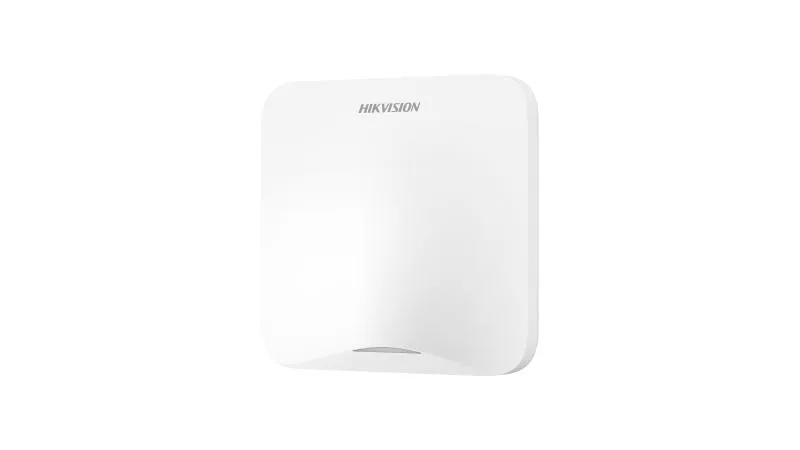

Hikvision DS-PA201PS-32WE

Markaya göre filtrele

Hikvision DS-PA201PS-32WE
Hikvision

Hikvision DS-PA201PS-32WE

Model kodu
DS-PA201PS-32WE
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Simple and elegant appearance design. Wi-Fi, GPRS, 4G network for cloud communication. Friendly app interface makes installation and use easier. Up to 2000 m radio signal transmission range in open space

Teknik özellikler

ARC 1
Installer 3
User 12
Areas 8
Wireless zones 32
Wireless keypads 4
Wireless sounders 4
Admin 1
Logs 1000
Wireless keyfobs 16
Transmission technology 868.0-868.6 MHz
Transmission range (free space) Up to 2,000 m (Between control panel and detectors/peripherals in open space and without nearby frequency band interference). *In actual applications, the maximum transmission distance may be affected by Radio Frequency environment and depends on the connected devices.
Maximum effective radiated power (ERP) 25 mW max
Radio signal modulation 2GFSK
Encryption AES-128
Ethernet 1 8P8C socket
Ethernet speed ≤10Mbps
Wi-Fi 802.11 b/g/n
Cellular 4G
SIM slots 1
Upgrade OTA Yes
Protocol SIA-DCS *SIA-DCS ADM-CID *ADM-CID OTAP Other proprietary protocols
APP notifications Yes
SMS notifications Yes
Calls notifications Yes
ARC notifications Yes
Event types Alarms Faults System Events Operations
Indication method LED
Tamper-Proof Yes
Mains power 110-240 V~, 50/60 Hz
Power consumption max current: 0.2 A quiescent current: 90 mA
Built-in backup battery Yes
Battery life Up to 12 hours at normal temperature *Under standalone mode without control panel actions(arm or alarm trigger). Battery life may be reduced due to low environmental temperature.
Dimension (W×H×D) 165 x 165 x 37.5 mm
Weight 410 g
Operation temperature -10 °C to +55 °C
Operation humidity 10% to 90%
Shell material Plastic

Dokümanlar

Data Sheet - Control Panel
