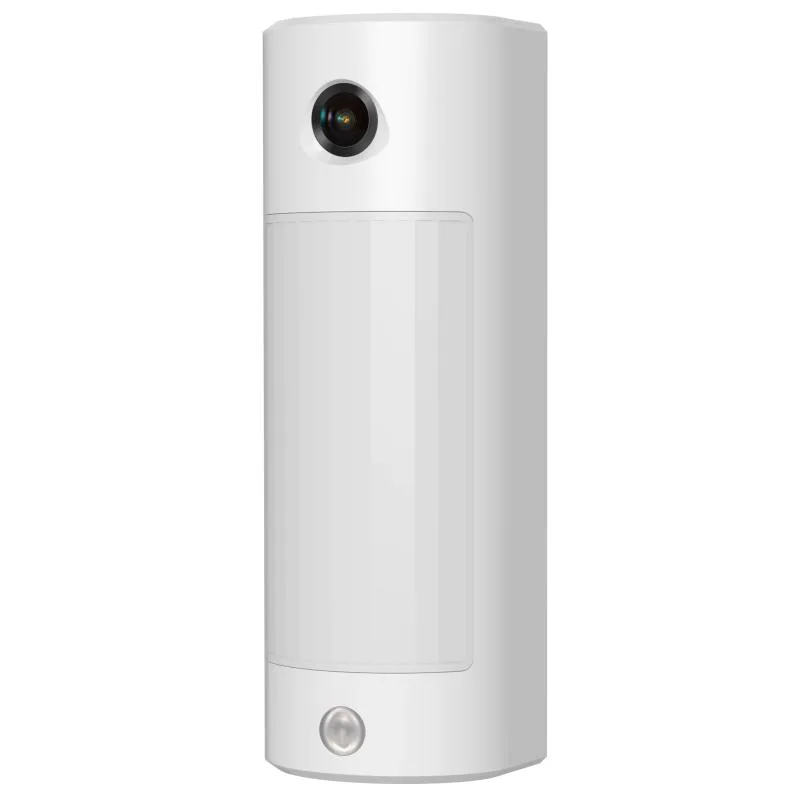

Hikvision DS-PDPC18-HM-WE

Markaya göre filtrele

Hikvision DS-PDPC18-HM-WE
Hikvision

Hikvision DS-PDPC18-HM-WE

Model kodu
DS-PDPC18-HM-WE
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Detection range: 18m/90°. IP65 weather resistance for outdoor application. Up to 24 kg pet immunity. Polarizing IR lens design for more uniform night illumination and excellent night shots. Fully remote configurable through APP. Multiple enrollment method and easy installation design. Easy replaceable battery with PCB protected

Teknik özellikler

Detection Method Passive Infrared;Video Verification
Detection Range 18m
Detection Angle 90°
Detection Zones 118
Detectable Speed 0.3～2m/s
Sensitivity High;Auto;Low
Pet Immunity 24Kg
White Light Filter 20000lux
Digital Temperature Compensation Support
Digital Processing Support
Sealed Optics Support
Tamper Protection Front;Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Field Angle 113°(H), 60°(V)
Image Type JPEG
Resolusion 160*120;320*240;640*480
Fill Light Infrared Light
Fill Range 12m
Day/Night Switch Color/Black & White
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission Technology CAM-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 800m
Enrolling Method Power up;Remote ID;QR Code
Standard Battery Life Up to 3 years at normal temperature (The battery working time can be significantly reduced at low temperatures)
Power Supply Battery powered
Battery Type CR123A × 4
Typical Voltage 3V
Operation Temperature -25 °C to 60 °C (-13 °F to 140 °F)
Storage Temperature -25 °C to 60 °C (-13 °F to 140 °F)
Operation Humidity 10% to 90%
IP rate IP65
Dimension(WxHxD) 67.6mm × 193.4mm × 65mm
Weight 500g
Mounting Height 2.5 to 3 m high mount. 0.8 to 1.2 m low mount
Mounting Method Wall
Application Scenario Outdoor
Bracket Adjustment bracket included

Dokümanlar

Data Sheet - Double PIR-Camera Outdoor
