Hikvision DS-PEA103-CK1

Markaya göre filtrele

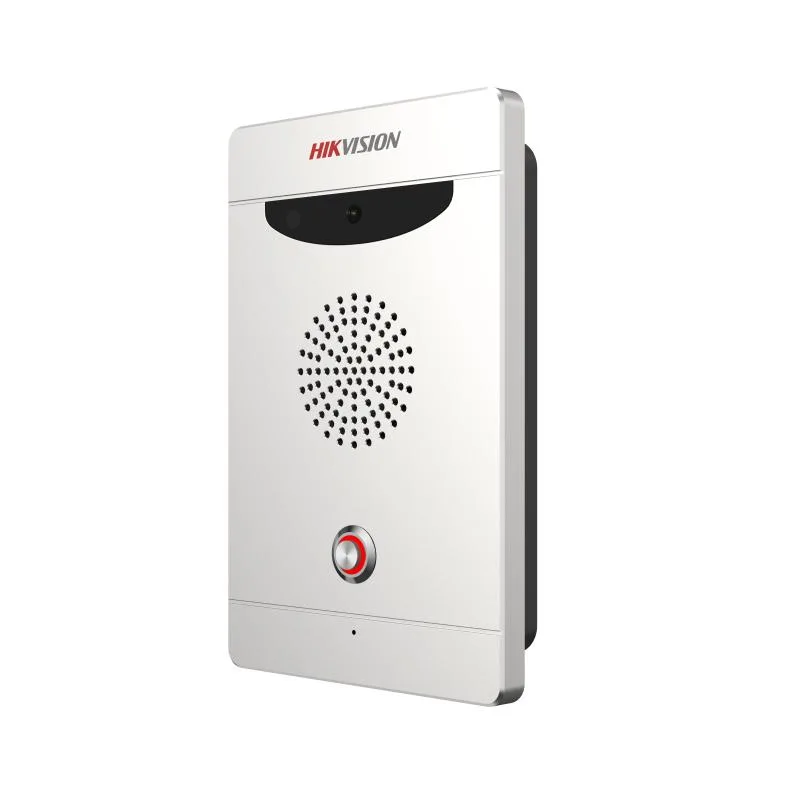

Hikvision DS-PEA103-CK1
Hikvision

Hikvision DS-PEA103-CK1

Model kodu
DS-PEA103-CK1
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Supports quick alarm, two-way audio with the management center, and the center supports calling the front-end alarm box.. 2MP Camera and H.264/H.265 encoding.. Supports monitoring and broadcasting functions.. External connection of alarm lights and sirens, and the alarm lights and sirens can be controlled independently.. Supports device tampering alarm and noise alarm.. Equipped with a surface mounting hanging plate to achieve surface mounting installation; supports a flush mounting hanging plate to achieve flush installation(optional).

Teknik özellikler

SD card Standard Micro SD Card Slot, Max. 256G
Tamper-Proof Support
Fill light Infrared Light
Resolusion 1920*1080
Field angle Horizontal: 86° Vertical: 47° Diagonal: 99°
Day/night switch mode Auto switching
Video compression standard H.264;H.265
Frame rate 25fps
Audio output 1-ch 3 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output
Audio input 1-ch Built-in Omnidirectional Microphone Pickup Distance: 1 m 1-ch 3.5 mm Audio Interface for External Audio Input
Audio encoding/decoding standard G.711U/PCM/ADPCM/AAC/OPUS
Audio compression code rate 16Kbps;64Kbps
Audio quality Smart Noise Suppression
Power supply 12 VDC
Operation humidity 10％ to 90％
Operation temperature -25°C to 55°C
Power consumption ≤ 8W
IK rate IK08
IP rate IP65
Installation method Wall-mounted and Embedded-mounted
Dimension(WxHxD) 114 mm × 179mm × 41.1 mm
Application scenario Outdoor
Shell material Aluminium Alloy
Alarm output 2
Alarm input 2

Dokümanlar

Data Sheet - Video panic intercom panel

Bu ürünü satan firmalar

1 firma
TESAN İLETİŞİM A.Ş
Bahçelievler, İstanbul
