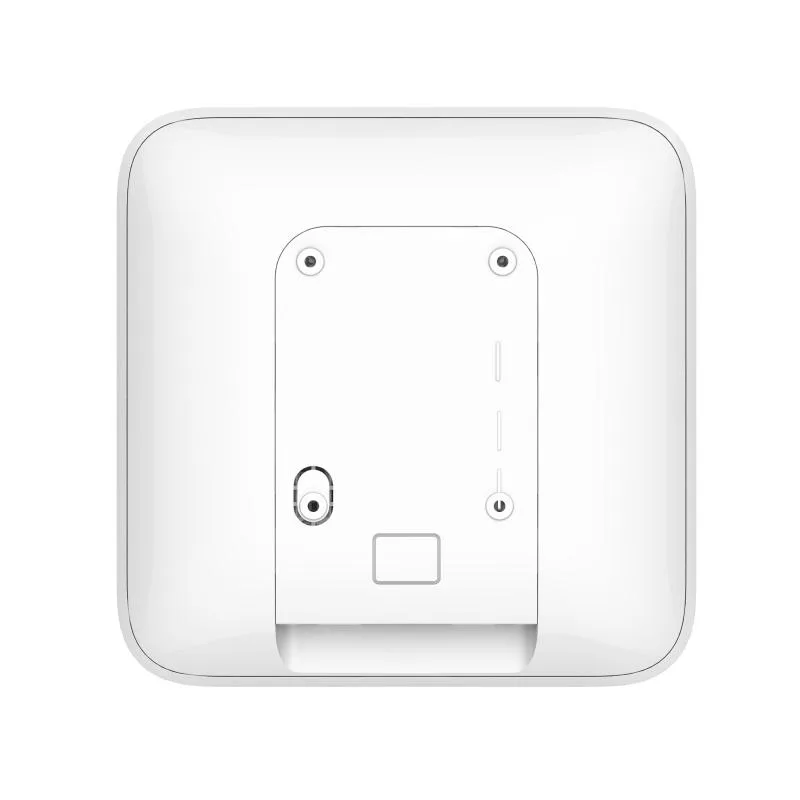

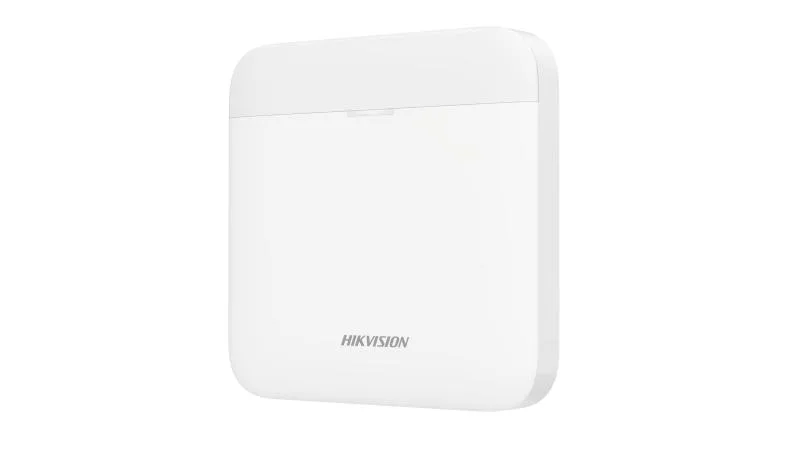

Hikvision DS-PWA48-E-WB

Markaya göre filtrele

Hikvision DS-PWA48-E-WB
Hikvision

Hikvision DS-PWA48-E-WB

Model kodu
DS-PWA48-E-WB
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

TCP/IP, Wi-Fi network. New generation wireless protocol: Tri-X/Cam-X. Long RF transmission distance. Two-way communication with AES-128 encryption. Connects up to 48 wireless zones/outputs (including 48 PIRCAMs), 16 wireless keyfobs, 2 repeaters, 4 sounders, 8 tag readers and keypads. Supports up to 16 network users, including 1 installer, 1 administrator, and 14 normal users. Voice prompt. Configuration via Web client, mobile client, and Convergence Cloud. Hik-Connect and Hik-ProConnect configuration depends on the user access level. Views live videos from Hik-Connect. Alarm video clips via emails and APP. Supports LED indicator to indicates system status. 4520 mAh lithium backup battery. SIA-DC09 protocol, and supports both Contact ID and SIA data format. Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Teknik özellikler

Tag 16
Area 8
Zones 48 (up to 48 PIRCAMs)
Installer 1
User 14
Admin 1
Voice Prompt Supported
Loudspeaker built in Supported
Memory Log stored 5000
Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
Firmware upgrade APP/Web Portal
Arm modes Away/Stay
Automatic Arm/Disarm Timers Supported
Forced Arming with Open Zones Supported
Diagnostics via the APP or Web Supported
ARC protocol SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
User APP for operating Supported
Installer APP for programming Supported
Web server for maintenance (offline configuration) Supported
RS232 output Supported
SIM slot N/A
RF Frequency 433 Mhz
Wireless Security Supported
GPRS on board N/A
LEDs Status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
Power supply Built in power supply
Battery type Built in on board Battery Li
Battery life span Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
Wired network Supported
Wi-Fi Standard Supported
Operation temperature -10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
Shell material Plastic
Dimension(WxHxD) 170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5")
Weight 557.5 g (19.7 oz)
Color White
Keyfob 16
Wireless sounder 4
Keypad 8 (including tag reader)
Wireless Repeater 2
Multi Transmitter 3
PIR Cam Supported

Dokümanlar

Data Sheet - AX PRO (433MHz) Quick Start Guide - AX PRO (433MHz) User Manual - AX PRO (433MHz) How To - AX PRO (433MHz)
