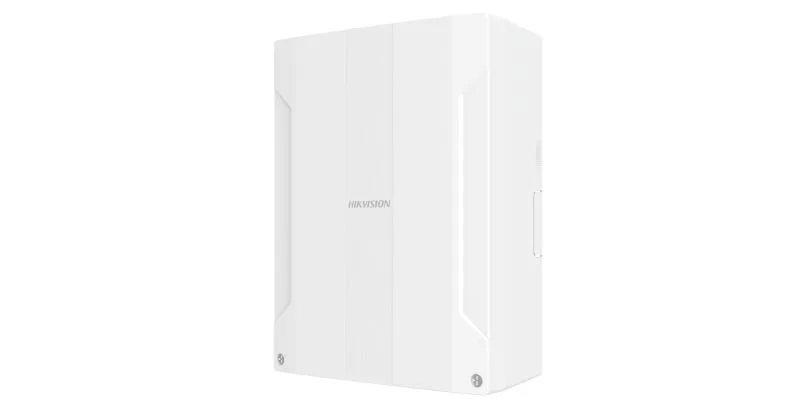

Hikvision DS-PWA96-M2H-WB

Markaya göre filtrele

Hikvision DS-PWA96-M2H-WB
Hikvision

Hikvision DS-PWA96-M2H-WB

Model kodu
DS-PWA96-M2H-WB
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

TCP/IP, Wi-Fi, and 3/4G network. New generation wireless protocol: Tri-X/Cam-X. Long RF transmission distance. Two-way communication with AES-128 encryption. Connects up to 96 zones/outputs (Including 48 PIRCAMs & onboard Wired Zones/Outputs), 48 wireless keyfobs, 4 repeaters, 6 sounders (3 internal+3 External), 8 tag readers & keypads.. Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users. Voice prompt. Configuration via Web client, mobile client, and Convergence Cloud. Hik-Connect and Hik-ProConnect configuration depends on the user access level. Pushes alarm notification via messages or phone calls. Views live videos from Hik-Connect. Alarm video clips via emails and APP. Supports LED indicator to indicates system status. SIA-DC09 protocol, and supports both Contact ID and SIA data format. Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Teknik özellikler

Tag 48
Area 32
Zones Up to 96 (including 48 PIRCAMs & 16 onboard Wired Zones & 2 onboard Wired Outputs)
Onboard video clips 4
Installer 1
User 46
Admin 1
Voice Prompt Supported
Loudspeaker built in Supported
Tag reader built in No
Memory Log stored 5000
Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
Firmware upgrade APP/Web Portal
Arm modes Away/Stay
Automatic Arm/Disarm Timers Supported
Forced Arming with Open Zones Supported
Diagnostics via the APP or Web Supported
ARC protocol SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control
User APP for operating Supported
Installer APP for programming Supported
Web server for maintenance (offline configuration) Supported
Power Output 2 onboard (12v, total 1A)
RS232 output Supported
SIM slot Dual
Two-way Wireless Communication Support
RF Frequency 433Mhz
Wireless Security Frequency Hoping 128 AES Encryption
3/4G on board Supported
LEDs Status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
Power supply Built in power supply
Battery type 12v 7Ah Storage battery (Battery is not included by default)
Battery life span Up to 36 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)(Battery life varies from different battery types)
Wired network Supported
Wi-Fi Standard Supported
Operation temperature -10 °C to 40 °C
Shell material Plastic
Dimension(WxHxD) 261*199*86.4mm
Weight 1083g (No battery)
Color White
Keyfob 48
Wireless sounder 6 (3 internal+3 External)
Keypad 8 (Including Tag reader)
Wireless Repeater 4
Multi Transmitter 5
PIR Cam Supported

Dokümanlar

Data Sheet - AX PRO Ultra User Manual - AX PRO Ultra How To - AX PRO Ultra
