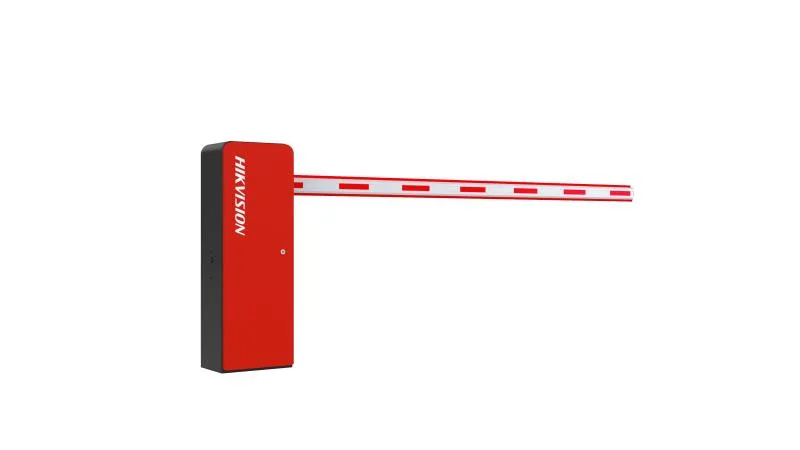

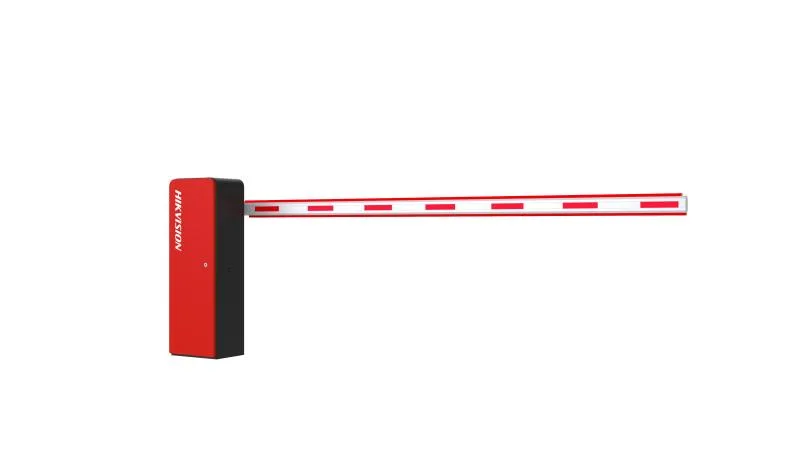

Hikvision DS-TMG420/A
Hikvision

Hikvision DS-TMG420/A

Model kodu
DS-TMG420/A
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Adopts integrated machine core. Parallel gear decelerates linkage arm transmission to ensure stability and efficiency.. Supports convenient side installation with compact structure.. Adopts quenching process for carbon steel gear to realize wear-resistant and impact-resistant functions and extend product life.. Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.. Supports rebound for obstacle and opening priority.. Adopts DC variable frequency control to enable smooth operation with fast boom pole opening and slow boom pole closing.. Supports event log to enable convenient monitoring.. Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.. Supports fault code detection on the nixie tube, log record, and abundant status indicating. Based on the fault code displayed on the nixie tube, you can realize quickly problems locating and maintenance.. Supports manually opening boom pole. You can turn hand wheel to keep barrier gate opening during power cutoff.. Delayed boom pole closing (10 s delay time by default). Supports 99 shifts (initial status 2 s, 2 s gap between each shift).. Supports auto boom pole opening during power cutoff. The barrier gate can open automatically to allow fire trucks in (optional components required).. Intergated with strip light to show barrier gate status

Teknik özellikler

Barrier Housing Material SGCC
Barrier Housing Thickness 1.5 mm
Barrier Housing Door Thickness 1.2 mm
Barrier Housing Color Iron gray
Barrier Housing Door Color Orange red
Boom Pole Installation Height 885 mm
Body Indicators with body indicator. Green: arrow indicator. Red: prohibition indicator
Rising Speed 3m light pole: 2s, 4m light pole: 3s
Falling Speed 3m light pole: 2s, 4m light pole: 3s
Boom Pole Direction right by default, direction switchable
Motor Type DC brushless motor
Matched Boom Pole Type Octagonalstraight boom pole: 3 to 4 m
Boom Pole Falling Delay 10 s by default (configurable), min. 2 s (every 2 s followed a gap)
Number of Cycles 5,000,000
Working Voltage 100-120VAC / 200-240VAC (default 220-240V，switchable)
Consumption Max. 139 W
Temperature and Humidity Temperature: -30 °C to 60 °C (-22 °F to 140 °F),Humidity: ≤ 90%
Rising Boom Pole for Poweroff Optional, not supported by default
Duty Cycle 100%
RS-485 1 group
Rising to Limit 1 group
Falling to Limit 1 group
Open 1 group
Close 1 group
Stop 1 group
IR/Vehicle Detector/Radar 1 group
Traffic Signal Light 1 group, external power supply required, max. 220 VAC supported
Boom Pole Color White background with red bar
Boom Pole Weight 3 m boom pole with LED strip light: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.) 4 m boom pole with LED strip light: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.)
Boom Pole Dimensions (with Package) 3 m boom pole with LED strip light: 100 × 60 × 3035 mm (3.94 × 2.36 × 120.07 inch) 4 m boom pole with LED strip light: 100 × 60 × 4035 mm (3.94 × 2.36 × 159.45 inch)
Boom Pole Weight (with Package) 3 m boom pole with LED strip light: 4.0 ± 0.3 kg (8.82 ± 0.66 lb.) 4 m boom pole with LED strip light: 5.2 ± 0.3 kg (11.46 ± 0.66 lb.)
Color of Boom Pole with LED Strip Light with LED strip light, green indicator for boom pole opening status Boom pole other status: red indicator Photometric parameters: Red: luminous flux 39.44 lm, light effect 17.86 lm/W Green: luminous flux 107.56 lm, light effect 45.65 lm/W Working life (lighting time): 5800 h
Boom Pole Dimensions 3 m boom pole with LED strip light: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch) 4 m boom pole with LED strip light: 95 × 49 × 4013 mm (3.74 × 1.93 × 157.99 inch)
Boom Pole Material AL6061
RF CE-RED EN 300220-1 V3.1.1 EN 300220-2 V3.1.1 EN 301489-1 V2.2.3 EN 301489-3 V2.1.1 EN IEC 62311: 2020
EMC CE-EMC： EN 55032: 2015/A11: 2020 + A1: 2020, EN IEC 61000-3-2: 2019/A1: 2021, EN 61000-3-3: 2013 + A1: 2019/A2: 2021, EN 50130-4: 2011 + A1: 2014
Security CE-LVD: EN 62368-1: 2014/A11: 2017 CB: IEC 62368-1: 2014 IEC 62368-1: 2018
Environment ROHS
Protection IP54, IK09
Barrier Housing Dimensions (L × W × H) 1060 × 370 × 262 mm (41.73 × 14.57 × 10.31 inch)
Body Weight 43 ± 3 kg (94.8 ± 6.61 lb.)
Body Dimensions (with Package, Without Boom Pole) (L × W × H) 1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch)
Body Weight (with Package, Without Boom Pole) 47 ± 3 kg (103.61 ± 6.61 lb.)

Dokümanlar

Data Sheet - 42 Series Octagonal Straight Pole Barrier Gate
