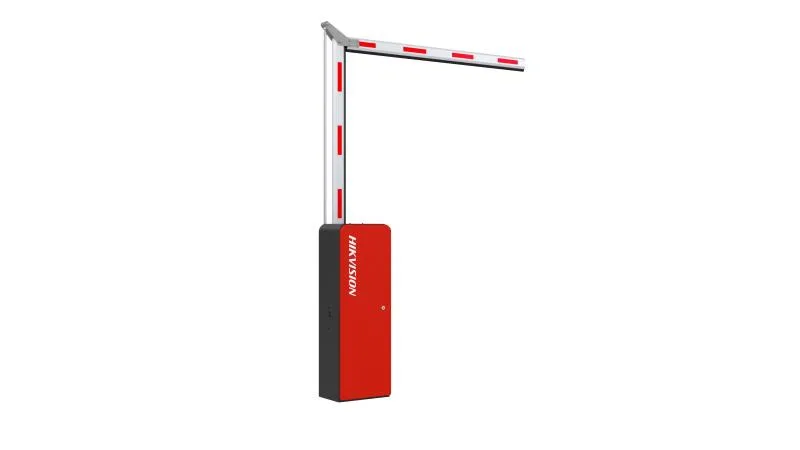

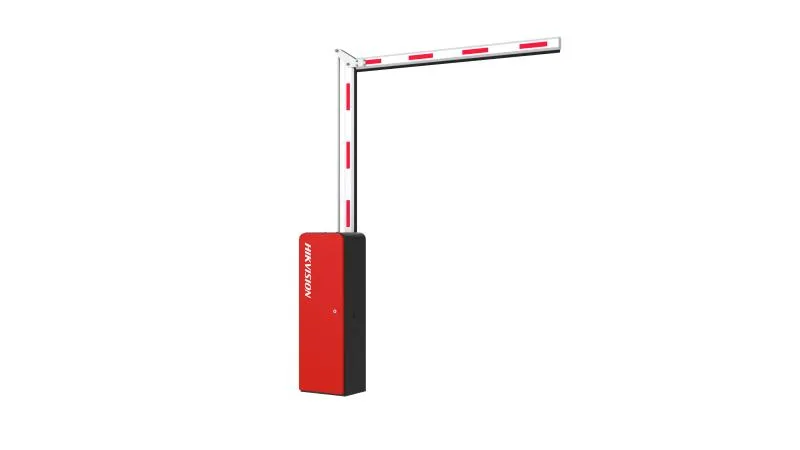

Hikvision DS-TMG421
Markaya göre filtrele
ABB
Absen
Ajax
APart Audio
Aruba
Aselsan
AselsanNET
Astor Şarj
ASUS
Atlas Turnike
Bawcon
Biwin
Bosch
Bticino
BULLWARK
CamBox
CAME
Cenova
Commax
Dahua
Dayline
Dayzip
Decon
Dell
DSC Alarm
EATON
Endikal
Eşarj
EZVIZ
FAAC
Fanvil
Finder
Formrack
Fujitron
Gigaset
Global
GVD
Hikvision
HiLook
Hochiki
HP
Imou
Inform
Inter-M
Jabra
Kamera Kutusu
Karel
Lande
Legrand
Leyard
LifeSmart
Mavili
Multitek
Netelsan
NETGEAR
Neutron
Nice
Notifier
Omada
Osram
Özak
Panasonic
Paradox
Philips
Proxsen
QNAP
Rapoo
Reyee
Ruijie
Schneider Electric
Seagate
Suprema
Teknim
Teknosec
Teletek
Tenda
Tescom
Tiandy
TOA
Toshiba
TP-Link
Ttec
Ubiquiti
Unilumin
Uniwiz
UNV
Vestel
vGUARD
Westa
Western Digital
Wisetech
ZES
ZKTeco
ZYXEL
Eşleşen marka yok.
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
Adopts integrated machine core. Parallel gear decelerates linkage arm transmission to ensure stability and efficiency.. Supports convenient side installation with compact structure.. Adopts quenching process for carbon steel gear to realize wear-resistant and impact-resistant functions and extend product life.. Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.. Supports rebound for obstacle and opening priority.. Adopts DC variable frequency control to enable smooth operation with fast boom pole opening and slow boom pole closing.. Supports event log to enable convenient monitoring.. Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.. Supports fault code detection on the nixie tube, log record, and abundant status indicating. Based on the fault code displayed on the nixie tube, you can realize quickly problems locating and maintenance.. Supports manually opening boom pole. You can turn hand wheel to keep barrier gate opening during power cutoff.. Delayed boom pole closing (10 s delay time by default). Supports 99 shifts (initial status 2 s, 2 s gap between each shift).. Supports auto boom pole opening during power cutoff. The barrier gate can open automatically to allow fire trucks in (optional components required).
Teknik özellikler
| Barrier Housing Material | SGCC |
|---|---|
| Barrier Housing Thickness | 1.5 mm |
| Barrier Housing Door Thickness | 1.2 mm |
| Barrier Housing Color | Iron gray |
| Barrier Housing Door Color | Orange red |
| Boom Pole Installation Height | 885 mm |
| Body Indicators | DS-TMG421, DS-TMG421-L, DS-TMG421-R: no body indicator DS-TMG421/B, DS-TMG421-L/B, DS-TMG421-R/B: With body indicator. Green: access indicator. Red: prohibition indicator. |
| Boom Pole Direction | DS-TMG421, DS-TMG421/B: right by default DS-TMG421-L, DS-TMG421-L/B: Left DS-TMG421-R, DS-TMG421-R/B: Right |
| Motor Type | DC brushless motor |
| Matched Boom Pole Type | Folding boom pole |
| Rising/Falling Speed | 1.5 + 1.5 m: 2 s,2 + 2 m: 3s,2.5 + 2.5 m: 5s |
| Boom Pole Falling Delay | 10 s by default (configurable), min. 2 s (every 2 s followed a gap) |
| Number of Cycles | 5,000,000 |
| Working Voltage | 100-120VAC / 200-240VAC (default 220-240V，switchable) |
| Consumption | DS-TMG421, DS-TMG421-L, DS-TMG421-R: Max. 158 W DS-TMG421/B, DS-TMG421-L/B, DS-TMG421-R/B: Max. 168 W |
| Temperature and Humidity | Temperature: -30 °C to 60 °C (-22 °F to 140 °F),Humidity: ≤ 90% |
| Rising Boom Pole for Poweroff | Optional, not supported by default |
| Duty Cycle | 100% |
| RS-485 | 1 group |
| Rising to Limit | 1 group |
| Falling to Limit | 1 group |
| Open | 1 group |
| Close | 1 group |
| Stop | 1 group |
| IR/Vehicle Detector/Radar | 1 group |
| Traffic Signal Light | 1 group, external power supply required, max. 220 VAC supported |
| Boom Pole Color | White background with red bar |
| Boom Pole Weight | 1.5 + 1.5 m: 5 ± 0.3 kg (11.02 ± 0.66 lb.) 2 + 2 m: 6.35 ± 0.3 kg (14 ± 0.66 lb.) 2.5 + 2.5 m: 7.45 ± 0.3 kg (16.42 ± 0.66 lb.) |
| Boom Pole Dimensions (with Package) | 1.5 + 1.5 m: 220 × 90 × 1720 mm (8.66 × 3.54 × 67.71 inch) 2 + 2 m: 220 × 90 × 2220 mm (8.66 × 3.54 × 87.4 inch) 2.5 + 2.5 m: 220 × 90 × 2720 mm (8.66 × 3.54 × 107.09 inch) |
| Boom Pole Weight (with Package) | 1.5 + 1.5 m: 5.46 ± 0.3 kg (12.04 ± 0.66 lb.) 2 + 2 m: 6.63 ± 0.3 kg (14.62 ± 0.66 lb.) 2.5 + 2.5 m: 8.0 ± 0.3 kg (17.64 ± 0.66 lb.) |
| Boom Pole Dimensions | 1.5 + 1.5 m: 178 × 79 × 3065.5 mm (70.08 × 31.1 × 1206.89 inch) 2 + 2 m: 178 × 79 × 4065.5 mm (70.08 × 31.1 × 1600.59 inch) 2.5 + 2.5 m: 178 × 79 × 5065.5 mm (70.08 × 31.1 × 1994.29 inch) |
| Boom Pole Material | AL6061 |
| RF | CE-RED EN 300220-1 V3.1.1 EN 300220-2 V3.1.1 EN 301489-1 V2.2.3 EN 301489-3 V2.1.1 EN IEC 62311: 2020 |
| EMC | CE-EMC： EN 55032: 2015/A11: 2020 + A1:2020, EN IEC 61000-3-2: 2019/A1: 2021, EN 61000-3-3: 2013 + A1: 2019/A2: 2021, EN 50130-4: 2011+A1: 2014 |
| Security | CE-LVD: EN 62368-1: 2014/A11: 2017 CB: IEC 62368-1: 2014 IEC 62368-1: 2018 |
| Environment | ROHS |
| Protection | IP54, IK09 |
| Barrier Housing Dimensions (L × W × H) | 1060 × 370 × 262 mm (41.73 × 14.57 × 10.31 inch) |
| Body Weight | 43 ± 3 kg (94.8 ± 6.61 lb.) |
| Body Dimensions (with Package, Without Boom Pole) (L × W × H) | 1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch) |
| Body Weight (with Package, Without Boom Pole) | 47 ± 3 kg (103.61 ± 6.61 lb.) |
