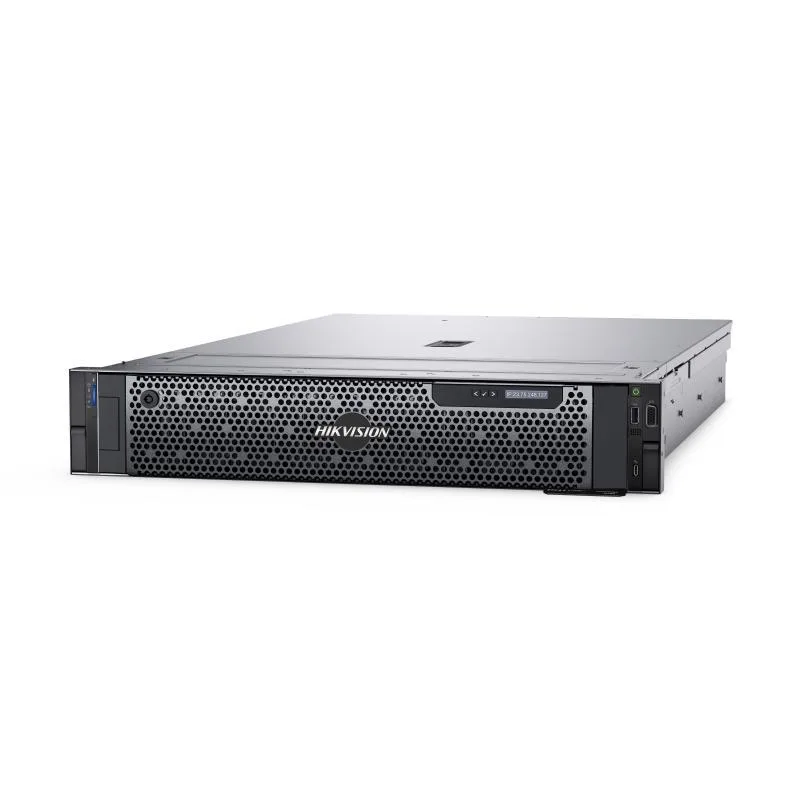

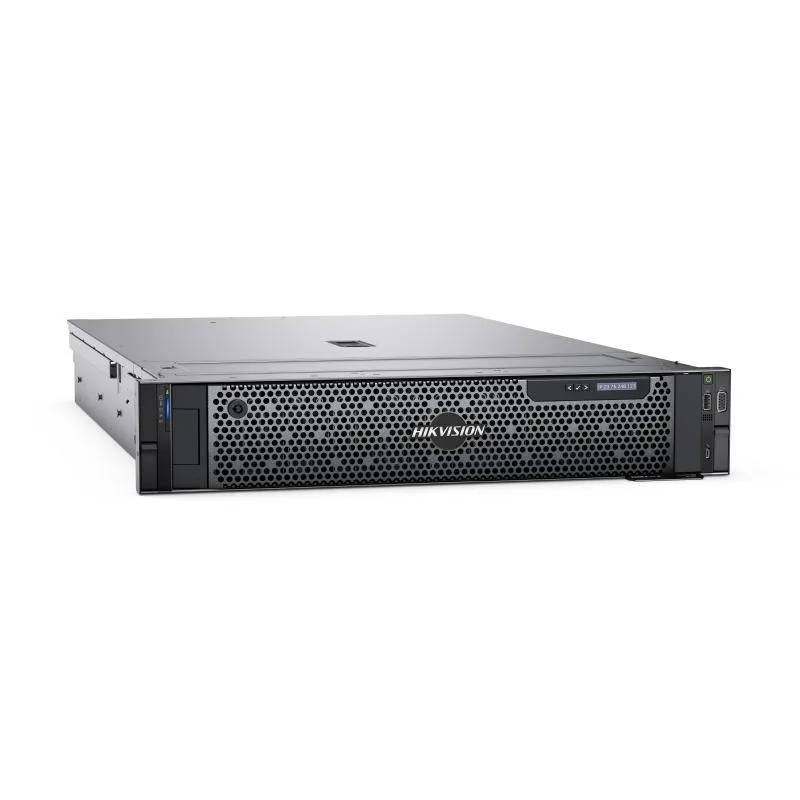

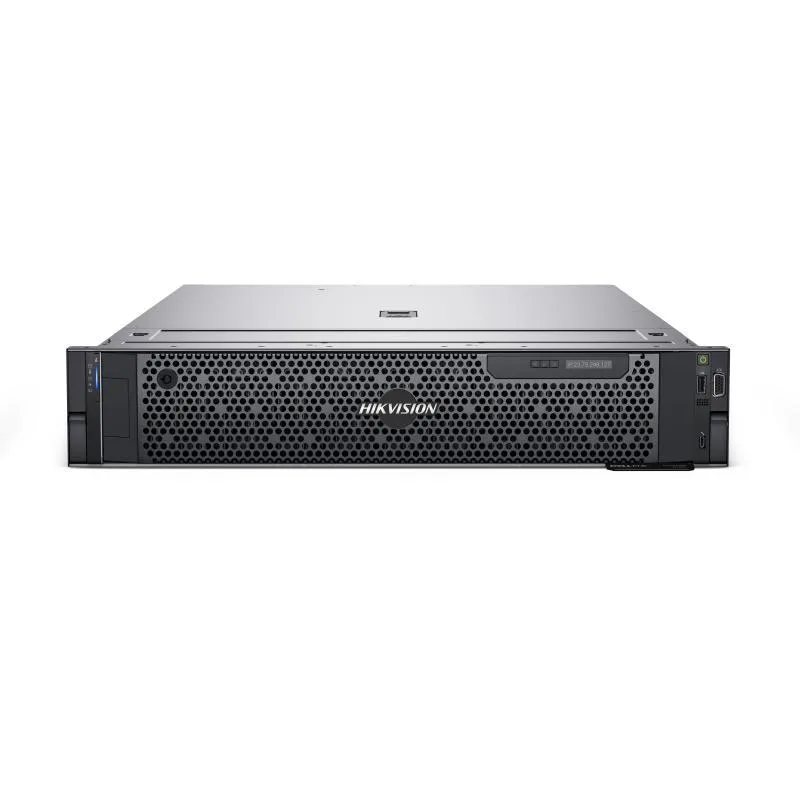

Hikvision DS-VH22-R/HW22E

Markaya göre filtrele

Hikvision DS-VH22-R/HW22E
Hikvision

Hikvision DS-VH22-R/HW22E

Model kodu
DS-VH22-R/HW22E
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Innovate at scale with challenging and emerging workloads, purpose-built for growing scale-out solutions. Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery. Supports multiple management models,best to manage your device.1:1 or 1:Many; Full remote control and management functions.. Feature-optimized server with ideal selection of CPU, I/O, and storage performance for scale-out environments to meet data needs, suitable for various scale scenarios

Teknik özellikler

CPU • 4510 (2.4 GHz-4.1 GHz, 30 MB Cache， 12 Cores, 24 Threads ) /4410T (2.7 GHz-4.0 GHz, 26.25 MB Cache， 10 Cores, 20 Threads )
Memory • Support 16GB/32GB/64GB DDR5 RDIMM, 4800MT/s ECC • Slots: 16 x DDR5 DIMM slots, supports RDIMM 16x64 GB MAX (1 CPU Configuration with 8 slots available，2 CPU configuration with 16 slots available.)
Hard Disks • 2TB/ 4TB/ 8TB/ 12TB/ 16TB/22TB 7.2K SATA Hot-plug HDD • 480GB/ 960GB/ 1.92TB/ 3.84TB SATA Hot-plug SSD • Slots: 8 x 3.5-inch SAS/SATA (HDD/SSD) slots, supports HDD 8 x 22TB max (Empty slots do not include hard drive bays by default)
Storage Controller • PERC H355 adaptor LP, support RAID 0/1 • PERC H755 adaptor LP, support RAID 0/1/5/6/10 (Optional)
Supported Operating Systems Winserver 2022 multilingual version (Optional)
PCIe Slots • 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4) • 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)
Remote Manage •iDRAC9 •iDRAC Direct •iDRAC RESTful API with Redfish •iDRAC Service Manual
OpenManage™ Software •OpenManage Enterprise •OpenManage Power Manager plugin •OpenManage Service plugin •OpenManage Update Manager plugin •CloudIQ for PowerEdge plug in •OpenManage Enterprise Integration for VMware vCenter •OpenManage Integration for Microsoft System Center •OpenManage Integration with Windows Admin Center
Integrations and Connections •BMC Truesight •Microsoft System Center •OpenManage Integration with ServiceNow •Red Hat Ansible Modules •Terraform Providers •VMware vCenter and vRealize Operations Manager
Security •Cryptographically signed firmware •Data at Rest Encryption (SEDs with local or external key mgmt) •Secure Boot •Secured Component Verification (Hardware integrity check) •Secure Erase •Secured-core server •Silicon Root of Trust •System Lockdown (requires iDRAC9 Enterprise or Datacenter) •TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
USB 3.0 0（Front）+1（Rear）
USB 2.0 1（Front）+1（Rear）
Ethernet Port 1 GbE×6/ 1 GbE×2+10 GbE x 2
VGA 2
iDRAC Direct (Micro-AB USB) Port 1
iDRAC Ethernet Port 1
Manager Port 1
Net Weight 28.6 kg (63.0 lb)
Gross Weight 46.4 kg (102.29 lb)
Dimension (W × H × D) 482.0 mm × 86.8 mm × 721.62 mm (18.97'' × 3.41'' × 28.4'')
Package Dimensions (W × H × D) 667.0 mm × 327.0 mm × 930.0 mm (26.26'' × 12.87'' × 36.61'')
Operating Temperature 10 °C to 35 °C (50 °F to 95 °F)
Storage Temperature -40 °C to 65 °C (-104 °F to 149 °F)
Operating Humidity 8% to 80% (no condensation)
Storage Humidity 5% to 95% (no condensation)
Power Supply 800 W，50/60 Hz，100-240 VAC (Auto adjustment)，9.2-4.7 A
Form Factor 2U Rack
