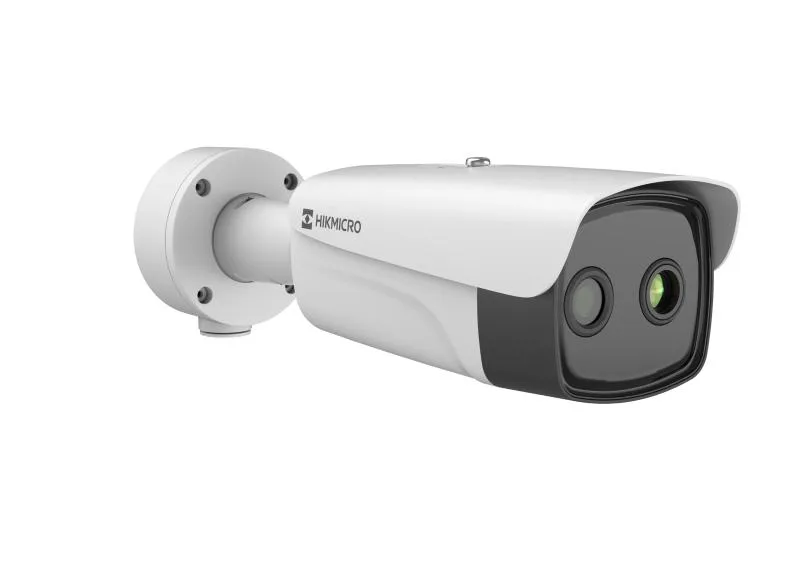

Hikvision HM-TD2668-35/G0/T1Y - Bullet IP kamera
Hikvision

Hikvision HM-TD2668-35/G0/T1Y - Bullet IP kamera

Model kodu
HM-TD2668-35/G0/T1Y
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

640 × 512 resolution, 12 μm, VOx UFPA, NETD ≤ 20 mK (25°C, F1.0). Video content analysis 3.0 (VCA3.0): high accuracy vehicle/human detection and classification. Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F). Fire detection Algorithm. Support sun-reflection filter algorithm. Built-in TPM2.0 encryption module for cybersecurity. Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR. High quality detector with 10 years guarantee

Teknik özellikler

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 640 x 512
Pixel Pitch 12 μm
NETD ≤ 20 mK (@25° C,F# = 1.0)
Focal Length 35 mm
IFOV 0.34 mrad
Aperture F1.0
Field of View 12.4° × 10° (H × V)
Min. Focusing Distance 45 m
Digital Zoom ×2, ×4，×8
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Field of View 24.6° × 14° (H × V)
Focal Length 12.4 mm
Shutter Speed 1 s to 1/100,000 s
White Balance MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night Mode IR Cut Filter with Auto Switch
WDR 120 dB
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target Coloration Yes. Supported in white hot and black hot mode.
EIS Thermal channel supports EIS, mutually exclusive with all smart functions except VCA function
IR Distance Up to 100 m
IR Intensity and Angle Automatically adjusted
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy ± 8 °C (±14.4 °F)
Fire Detection Dynamic fire detection, up to 10 fire points detectable
Main Stream Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280×720P， 704×576， 640×512，352×288)
Sub-stream Optical channel 50 HZ: 25 fps (704 × 576, 352 × 288) 60 HZ: 30 fps (704 × 480, 352 × 240) Thermal channel 25 fps (704 × 576, 640 × 512, 384 × 288)
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Color Palettes 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
Network Storage MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Client iVMS-4200, Hik-Connect
Alarm Input 2, alarm input (0-5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
Analog Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Menu Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block PoE (802.3af, class 3)
Power Consumption 24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.6W 12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.8W PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 12.3W
Working Temperature/Humidity Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less
Protection Level IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing NEMA 4X anti-corrosion housing
Dimensions 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
Weight 1.82 kg (4.01 lb)
VCA Range for Humans 435 m
VCA Range for Vehicles 1050 m
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
Safety CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005 LOA: SANS/IEC 60950-1
Environment CE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
Protection IP67: IEC 60529-2013 IK10: IEC 62262-2002
Anti-Corrosion Protection NEMA 4X (NEMA 250-2018)

Dokümanlar

Data Sheet - Thermal & Optical Bi-spectrum Network Bullet Camera Quick Start Guide - Thermal & Optical Bi-spectrum Network Bullet Camera User Manual - Thermal & Optical Bi-spectrum Network Bullet Camera
