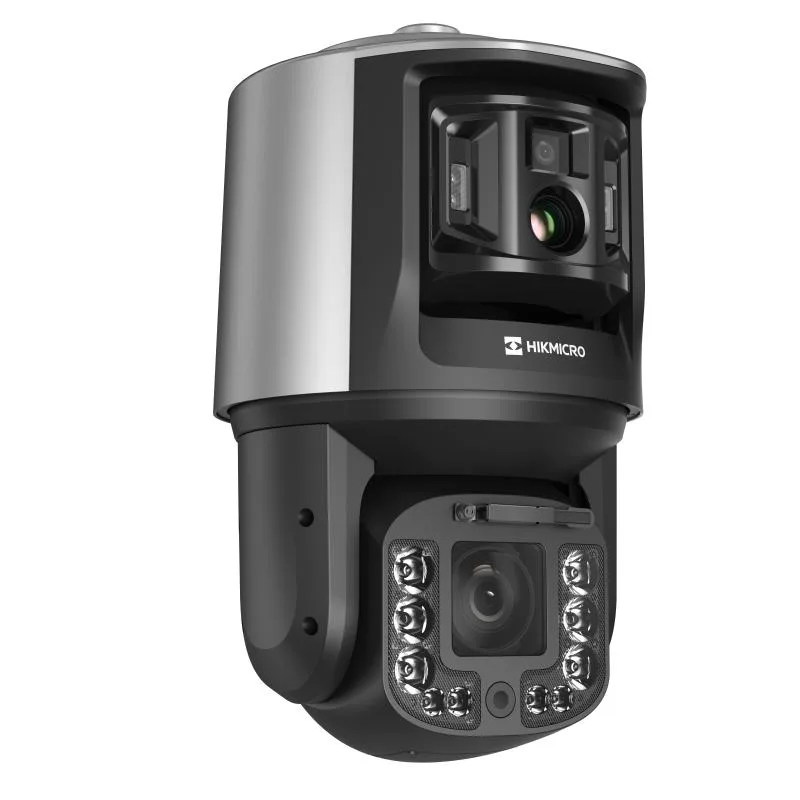

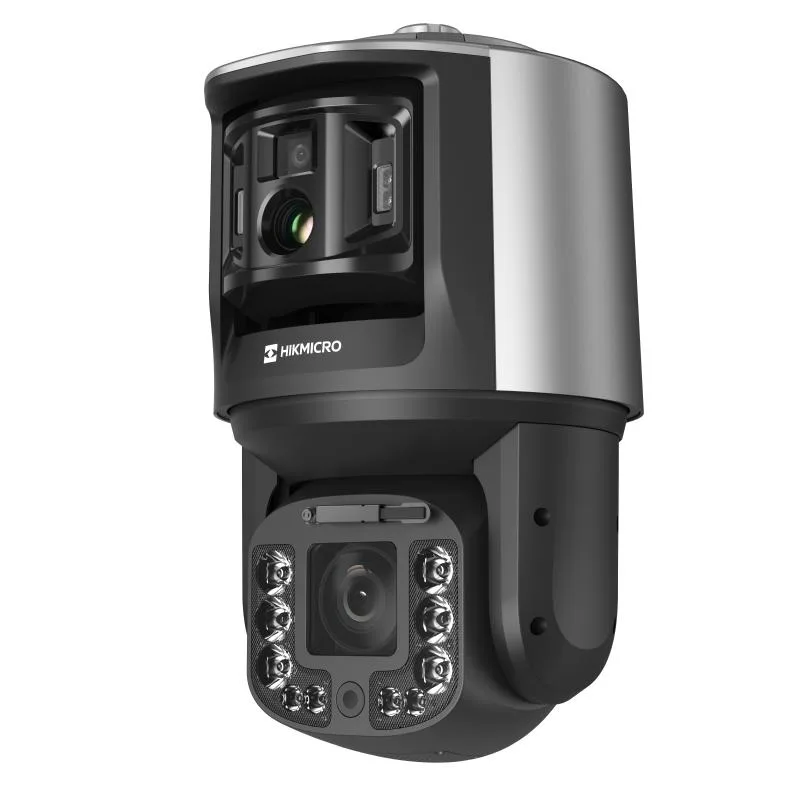

Hikvision HM-TX3840-10/G0/T1 - Bullet IP kamera
Hikvision

Hikvision HM-TX3840-10/G0/T1 - Bullet IP kamera

Model kodu
HM-TX3840-10/G0/T1
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

384×288 resolution thermal image, high sensitivity sensor, adjustable contrast. Thermal image processing: Adaptive AGC, DDE, 3D DNR, NETD<25 mK (@25 °C,F#=1.0). High quality imaging with 4MP optical PTZ and 40X optical zoom. Multi-lens synergy within integrated design provide easy deployment. Built-in speakers to provide audible alarms and LED to provide whitelight supplement

Teknik özellikler

Light Supplement Up to 250m whitelight supplement
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Click Linkage One-Touch automatically calibration
Tracking Mode Manual/Auto
Event Tracking Intrusion Detection, Line Crossing Detection
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 384 x 288
Pixel Pitch 12 μm
Spectral Range 8 μm to 14 μm
NETD (Noise Equivalent Temperature Difference) < 25 mK (25°C, F1.0)
Focal Length 9.7 mm
IFOV 1.2 mrad
Field of View 28.1° × 21.5° (H × V)
Min. Focusing Distance 1.3 m
Aperture F1.0
Digital Zoom x2, x4, x8
Image Sensor 1/1.8”CMOS
Resolution 2688 × 1520
Focal Length 6.4 mm
Field of View 51.7° × 28.2° (H × V)
Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON)
Aperture F1.5
Main Stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/AAC
Alarm Input 2-ch inputs (0-5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Audio Input 1-ch, Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output 1-ch, Linear Level; Impedance: 600 Ω
Communication Interface 1, RJ45 10 M/100 M /1000M Self-adaptive Ethernet interface. 1, RS-485 interface 1, BNC 1.0 V [p-p]/75 Ω video output
Image Sensor 1/1.8'' progressive scan CMOS
Resolution 2688 x 1520
Min. Illumination Color: 0.0003 Lux @(F1.3, AGC ON), 0 Lux with light on
Focal Length 6 - 240mm, 40 × optical zoom
Field of View 59°(H)*34.16°(V)-1.77°(H)*1.0°(V)
Digital Zoom ×2, ×4, ×8, ×16
Aperture Range F1.3-F4.6
Focus Mode Auto/Semi-auto/Manual
WDR 120 dB
Optical Defog Yes
Image Enhancement 3D DNR, EIS, HLC/BLC
Pan Speed configurable from 1° to 160°/s
Tilt Speed configurable from 1°/s to 90°/s
Main Stream 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120) 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144)
Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
API ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client iVMS-4200, Hik-Connect
Web Browser Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +
Power Supply DC36V,AC24V,PoE++
Power Consumption Max. 90W
Working Temperature/Humidity -40 °C to +70 °C (- 40 °F to 149 °F), Humidity: 90% or less
Protection Level IP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions 458.7mm x 266.6mm x 290mm
Weight 13.5kg
VCA Range for Humans 100m
VCA Range for Vehicles 300m
