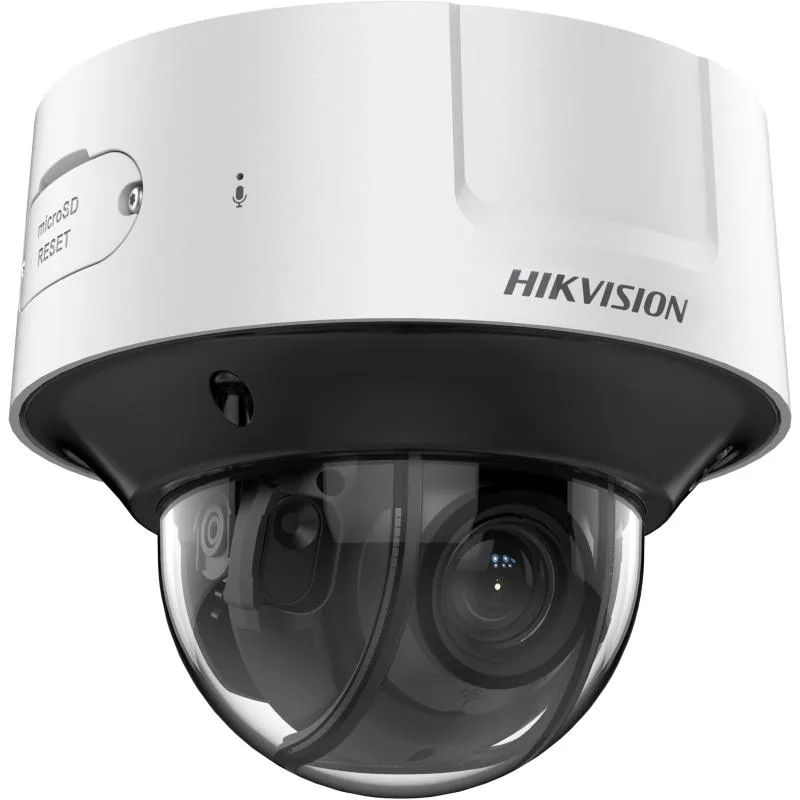

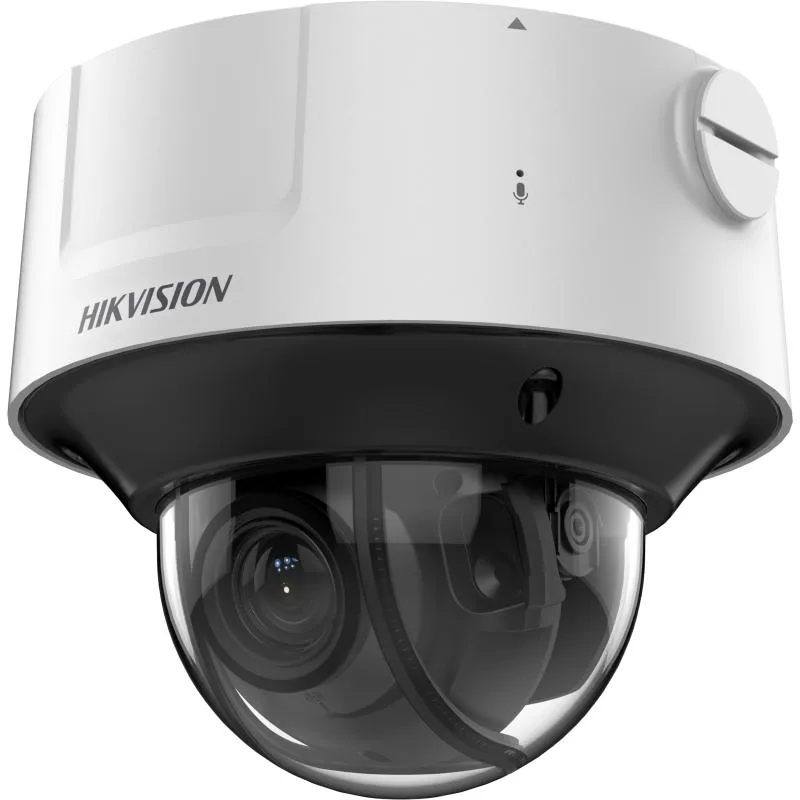

Hikvision iDS-2CD5546G2-XZ(H)S(Y) - Dome IP kamera

Markaya göre filtrele

Hikvision iDS-2CD5546G2-XZ(H)S(Y) - Dome IP kamera
Hikvision

Hikvision iDS-2CD5546G2-XZ(H)S(Y) - Dome IP kamera

Model kodu
iDS-2CD5546G2-XZ(H)S(Y)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Excellent low-light performance via Darkfighter 2.0 technology. Clear imaging against strong back light due to 140 dB Auto-WDR technology. 4 streams to meet a wide variety of applications. Efficient H.265+ compression technology to save bandwidth and storage. Water and dust resistant (IP67) and vandal proof (IK10). High frame rate up to 4MP@60fps. TPM 2.0 for cyber security

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter, Blue glass module (less ghost phenomenon)
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° 8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Iris Type P-iris
Aperture 2.8 to 12 mm: F1.47 to F2.53, 8 to 32 mm: F1.70 to F1.73
Focus Auto,Semi-auto,Manual
DORI Wide: 2.8 to 12 mm: D (Detect) : 60 m, O (Observe) : 23.8 m, R (Recognize) : 12 m, I (Identify) : 6 m 8 to 32 mm: D (Detect) : 150.3 m, O (Observe) : 59.7 m, R (Recognize) : 30.1 m, I (Identify) : 15 m Tele: 2.8 to 12 mm: D (Detect) : 149 m, O (Observe) : 59.1 m, R (Recognize) : 29.8 m, I (Identify) : 14.9 m 8 to 32 mm:D (Detect) : 400 m, O (Observe) : 158.7 m, R (Recognize) : 80 m, I (Identify) : 40 m The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.
Supplement Light Type Hybrid (IR and White Light)
Supplement Light Range 2.8 to 12 mm: Monitoring: 40 m; 8 to 32 mm: Monitoring: 60 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream Monitoring mode: 50 Hz: up to 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: up to 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720) *High frame rate is supported under monitoring mode only. smart mode: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream 50 Hz: 1 fps (704 × 576, 640 × 480) 60 Hz: 1 fps (704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Target Cropping Yes
Region of Interest (ROI) 4 fixed regions for each stream
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API ONVIF (Profile S, Profile T, Profile G, Profile M),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3,TPM 2.0(FIPS 140-2 level 2),AES128/256
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Day/Night Switch Day,Night,Auto,Schedule
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Wide Dynamic Range (WDR) 140 dB
Image Enhancement BLC,HLC,3D DNR,Defog
Privacy Mask 8 programmable polygon privacy masks
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Stabilization EIS
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm -Y: 2 inputs, 2 outputs (max. 12 VDC, 30 mA), Without-Y: 1 input, 1 output (max. 12 VDC, 30 mA)
Built-in Microphone 2 built-in microphones
Audio 1 input (line in), input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Reset Key Yes
Power Output 12 VDC, max. 100 mA
RS-485 -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Basic Event Motion detection,video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
Smart Event scene change detection,audio exception detection,defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Face Capture Detects up to 30 faces simultaneously, Supports swing left and right from -70° to 70°, tilt up and down from -50° to 50°, Uploads face with background and closed-up face pictures
Multi-target-type Detection Supports simultaneous detection and capture of human body, face, and vehicle, Gets face features, Gets human body features, Gets vehicle features, Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle

Dokümanlar

Data Sheet - 4MP Darkfighter Moto Varifocal Dome Camera Quick Start Guide - 4MP Darkfighter Moto Varifocal Dome Camera H13_5.8.1 Release Note - 4MP Darkfighter Moto Varifocal Dome Camera
