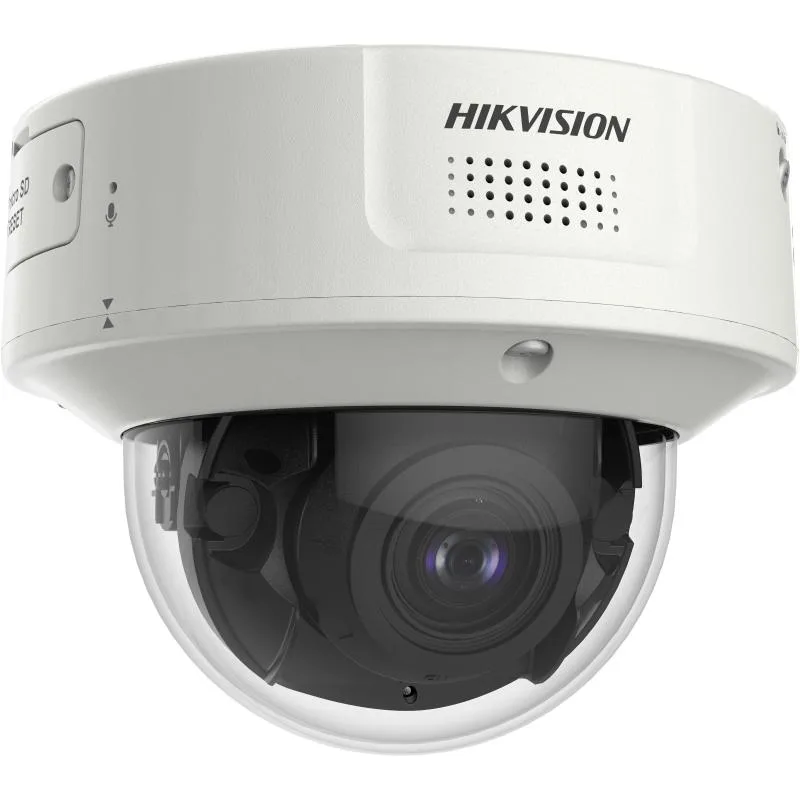

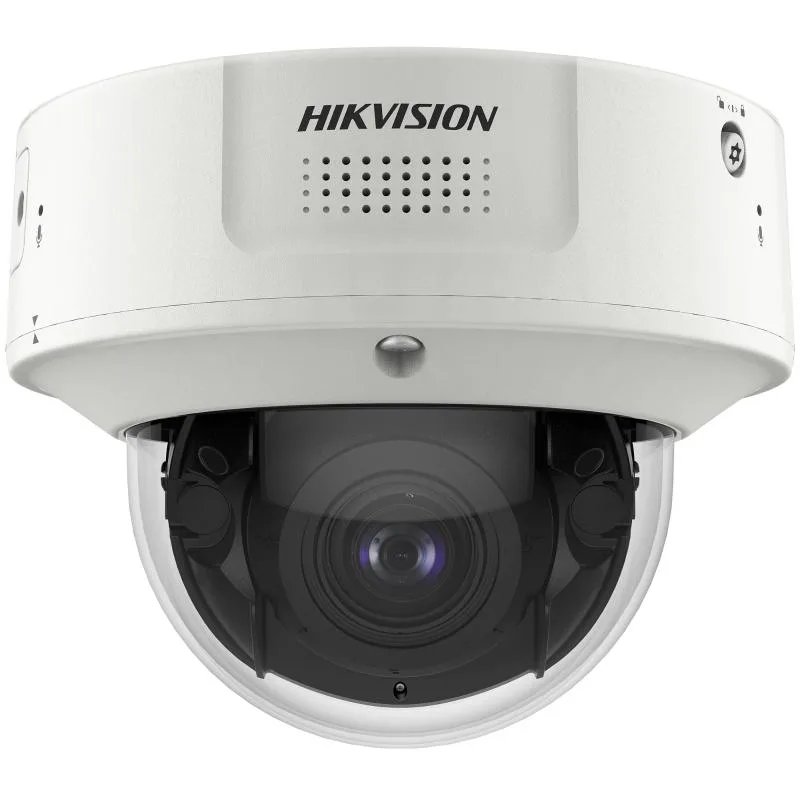

Hikvision iDS-2CD7146G0/H-IZ(H)S(Y) - Dome IP kamera
Hikvision

Hikvision iDS-2CD7146G0/H-IZ(H)S(Y) - Dome IP kamera

Model kodu
iDS-2CD7146G0/H-IZ(H)S(Y)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Hikvsion Embedded Open Platform 2.0 for 3rd party integration. Supports 2 Tops computing power, 150 MB system memory, 1024 MB smart RAM, and 2 GB eMMC storage for sharing resources. High quality imaging with 4 MP resolution. Excellent low-light performance via DarkFighter technology. Clear imaging against strong back light due to 140 dB WDR technology. Efficient H.265+ compression technology to save bandwidth and storage. 5 streams to meet a wide variety of applications. Water and dust resistant (IP67) and vandal proof (IK10)

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 114.6° to 14.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° 8 to 32 mm, horizontal FOV 42.5° to 14°, vertical FOV 23.4° to 8°, diagonal FOV 49.7° to 17°
Focus Auto,Semi-auto,Manual
Iris Type P-iris
Aperture 2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
DORI Wide: 2.8mm to 12mm: D (Detect) : 60 m, O (Observe) : 23.8 m, R (Recognize) : 12 m, I (Identify) : 6 m 8mm to 32mm: D (Detect) : 150.3 m, O (Observe) : 59.7 m, R (Recognize) : 30.1 m, I (Identify) : 15 m Tele: 2.8mm to 12mm: D (Detect) : 149 m, O (Observe) : 59.1 m, R (Recognize) : 29.8 m, I (Identify) : 14.9 m 8mm to 32mm: D (Detect) : 400 m, O (Observe) : 158.7 m, R (Recognize) : 80 m, I (Identify) : 40 m The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.
Supplement Light Type IR
Supplement Light Range 2.8 to 12 mm: Monitoring: 30 m; 8 to 32 mm: Monitoring: 50 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Open Resources Memory: 150 MB, Smart RAM: 1024 MB, eMMC: 2 GB
Computing Power 2 TOPS
Open Capability HEOP 2.0 OpendevSDK
Deep Learning Structure Caffe,PyTorch,TensorFlow
Programming Language C,C++
Main Stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Target Cropping Yes
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.1, TLS 1.2, TLS 1.3
Client iVMS-4200,Hik-Connect
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR) 140 dB
Image Enhancement BLC,HLC,3D DNR,Defog
Privacy Mask 8 programmable polygon privacy masks, mask color or mosaic configurable
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone Yes, 2 built-in microphones
Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m
Audio 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power Output 12 VDC, max. 100 mA
Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,abnormal restart,video quality diagnosis
Smart Event scene change detection,audio exception detection,defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Power 12 VDC ± 20%, 1.02 A, max. 12.4 W,three-core terminal block,reverse polarity protection, 24 VAC ± 20%, 0.82 A, max. 11.8 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.29 A to 0.22 A, max. 12.5 W
Material Base: metal, cover: metal
Dimension Ø144.3 mm × 114.1 mm (Ø5.7" × 4.5")
Package Dimension 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
Weight Approx. 945 g (2.0 lb.)

Dokümanlar

Data Sheet - 4MP DeepinView HEOP Moto Varifocal Dome Camera User Manual - 4MP DeepinView HEOP Moto Varifocal Dome Camera G7-V5.9.1 Release Note - 4MP DeepinView HEOP Moto Varifocal Dome Camera
