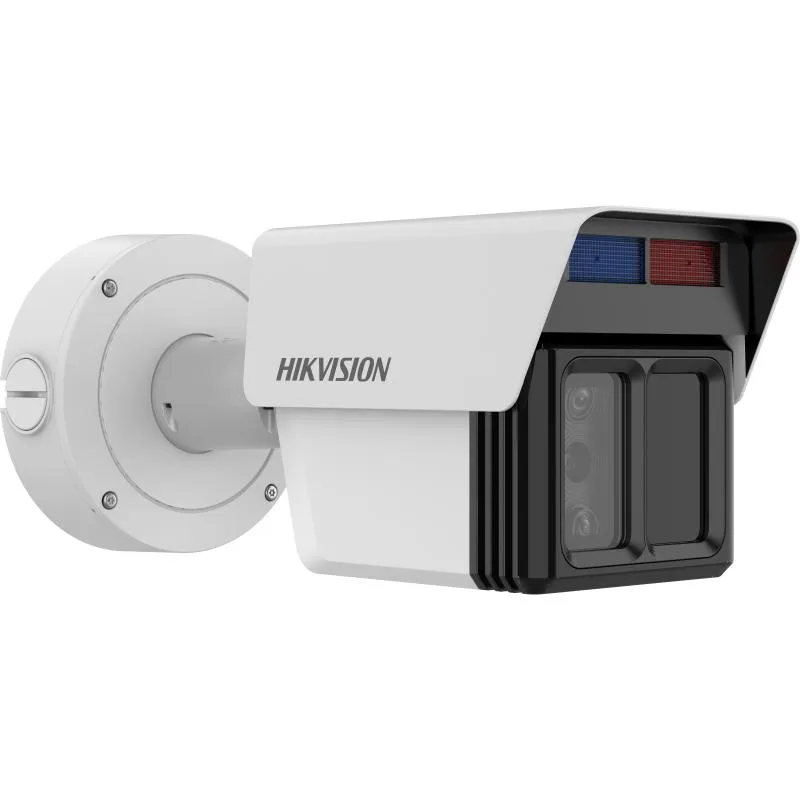

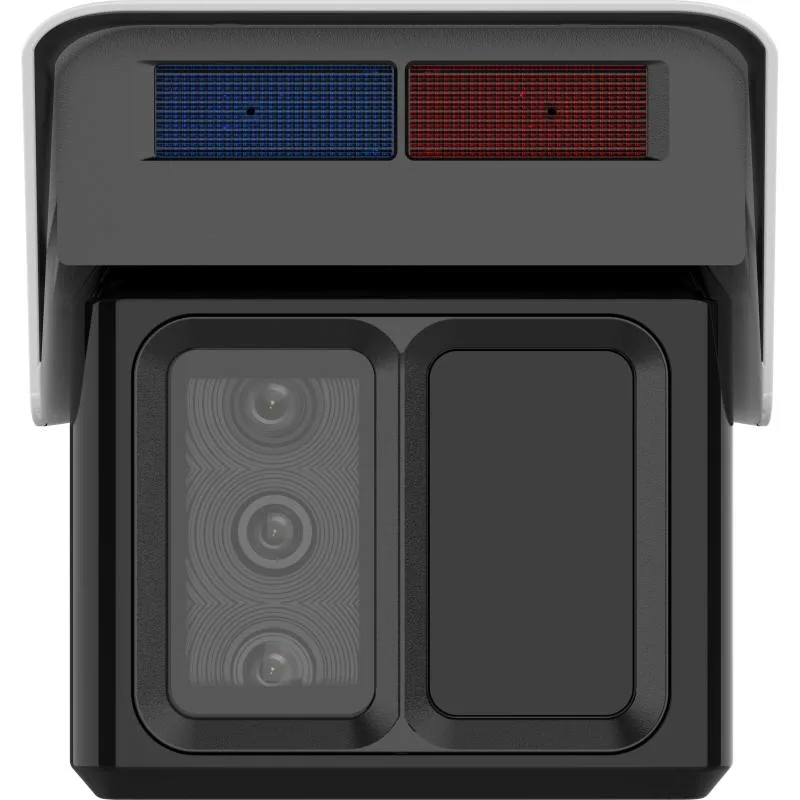

Hikvision iDS-2CD7T46G2/VX3-I(H)S(Y) - Bullet IP kamera

Markaya göre filtrele

Hikvision iDS-2CD7T46G2/VX3-I(H)S(Y) - Bullet IP kamera
Hikvision

Hikvision iDS-2CD7T46G2/VX3-I(H)S(Y) - Bullet IP kamera

Model kodu
iDS-2CD7T46G2/VX3-I(H)S(Y)
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4MP and 2 × 2MP Resolution. Excellent low-light performance via DarkFighter 2.0 Sharpmotion. Efficient H.265+ compression technology to save bandwidth and storage. Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional). Dedicated Guanlan large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras. Detect person and vehicle up to 120 m. Red/blue alarm LED and audible warning. Motorized tilt adjustment from -10° to 10° for easy installation. TPM 2.0 for cyber security

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution Channel 1: 2688 × 1520 Channel 2: 1920 × 1080 Channel 3: 1920 × 1080
Min. Illumination Channel 1: Color: 0.005 Lux @ (F1.2, AGC ON),B/W:0.002 Lux @ (F1.2, AGC ON),0 Lux with IR; Channel 2: Color: 0.005 Lux @ (F1.2, AGC ON),B/W:0.0002 Lux @ (F1.2, AGC ON),0 Lux with IR; Channel 3: Color: 0.005 Lux @ (F1.2, AGC ON),B/W:0.0002 Lux @ (F1.2, AGC ON),0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Aperture 4 mm, F1.6 12 mm, F1.6 25 mm, F2.8
Focal Length & FOV 4 mm, horizontal FOV 82.5°, vertical FOV 45.3°, diagonal FOV 96.1° 12 mm, horizontal FOV 25.4°, vertical FOV 14.4°, diagonal FOV 29.1° 25 mm, horizontal FOV 13.0°, vertical FOV 7.4°, diagonal FOV 14.9°
Iris Type Fixed
DORI 4 mm, D: 77.6 m, O: 30.8 m, R: 15.5 m, I: 7.8 m 12 mm, D: 171 m, O: 67.9 m, R: 34.2 m, I: 17.1 m 25 mm, D: 331 m, O: 131.4 m, R: 66.2 m, I: 33.1 m
Supplement Light Type IR
Supplement Light Range Up to 120 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream Channel 1: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) Channel 3: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream Channel 1 & Channel 2 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream Channel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480) Channel 3: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Bit Rate Control CBR,VBR
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Audio Type Mono sound
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
SNR ≥ 52 dB
Privacy Mask 8 programmable polygon privacy masks
Image Stabilization EIS
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio 2 input (line in), 1 output (line out), 3.5 mm connector.
Built-in Microphone Yes, 2 built-in microphones
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
Built-in Speaker Yes, 1 built-in speaker
RS-485 -Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power Output -Y: 12 VDC, max. 50 mA
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis
Smart Event scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection,fast moving detection,parking detection,people gathering detection,loitering detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Dedicated Guanlan large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras VCA range: The maximum detection distance can reach up to 120 meters *Result based on standard setup and test environment
Metadata Intrusion detection,line crossing detection,region entrance detection,region exiting detection
Power 12 VDC ± 20%, 2.1 A, max. 25.2 W PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.56 A to 0.45 A, max. 25.5 W
Material Front cover: metal, body: metal, bracket: metal
Dimension 128.9 mm × 139.5 mm × 337 mm (5.1" × 5.5" × 13.2")
Package Dimension 423 mm × 200 mm × 198 mm (16.65" × 7.87" × 7.8")
Weight With -Y: Approx. 2500 g (5.51 lb.), Without -Y: Approx. 2510g (5.53 lb.)

Dokümanlar

Data Sheet - 4MP DeepinViewX Triple Fixed Lens Bullet Camera for Perimeter Protection Quick Start Guide - 4MP DeepinViewX Triple Fixed Lens Bullet Camera for Perimeter Protection DeepinViewX Network Camera V5.10.0 Release Note - 4MP DeepinViewX Triple Fixed Lens Bullet Camera for Perimeter Protection
