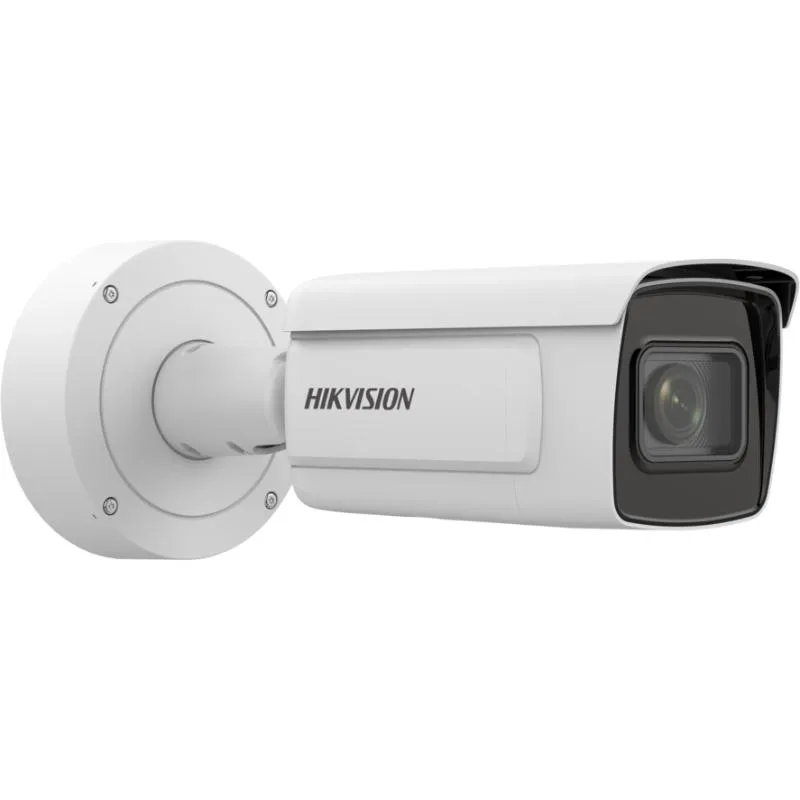

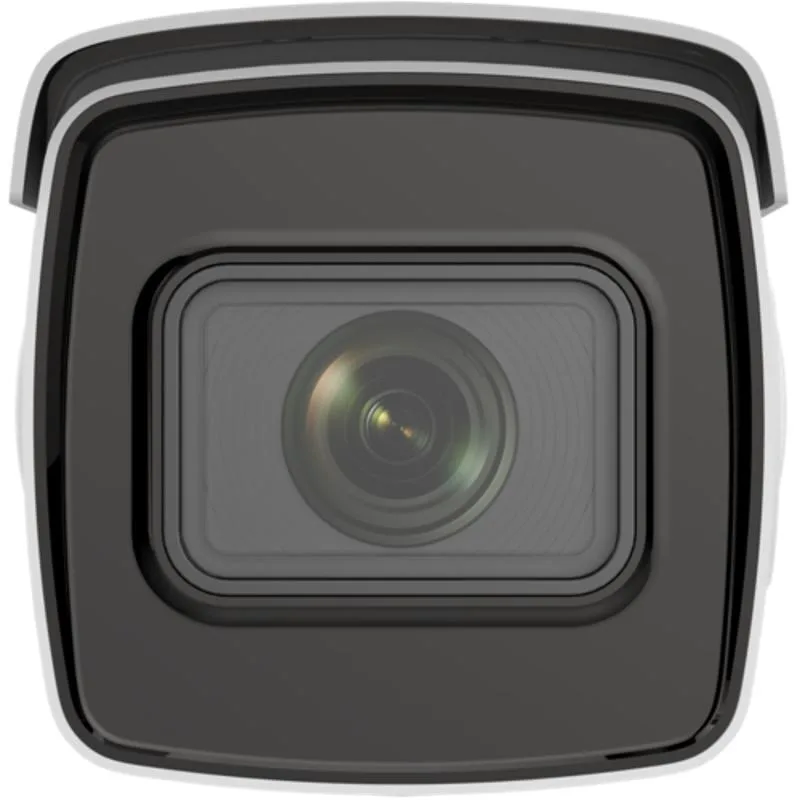

Hikvision iDS-2CD8A46G0-IZ/UH - Bullet IP kamera
Hikvision

Hikvision iDS-2CD8A46G0-IZ/UH - Bullet IP kamera

Model kodu
iDS-2CD8A46G0-IZ/UH
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Starting up and operating even in low temperature as -60 °C. Excellent low-light performance via DarkFighter technology. Clear imaging against strong back light due to LightFighter technology. Efficient H.265+ compression technology to save bandwidth and storage. Water and dust resistant (IP67). AI Open Platform

Teknik özellikler

Image Sensor 1/1.8″ Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0036 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Lens Type Motorized lens, 2.8 to 12 mm
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 110° to 46.2°, vertical FOV 59.6° to 26.2°, diagonal FOV 130° to 53°
Focus Auto,Semi-auto,Manual
Aperture F1.9
Lens Mount Integrated
Supplement Light Type IR
Supplement Light Range Up to 50 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Model Specification Up to 1 model, Model type: detection model, classification model, mixed model (detection model and classification model)
Main Stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream/third stream/fourth stream/fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Target Cropping Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
Smooth Streaming Yes
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Network Storage NAS (NFS, SMB/CIFS),ANR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR) 140 dB
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection,scene change detection,defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
Power 12 VDC ± 10%, 4.28 A, max. 51.4 W,three-core terminal block,reverse polarity protection
Material Metal
Dimension Ø140 mm × 367.8 mm (Ø5.51" × 14.48")
Package Dimension 405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
Weight Approx. 1.82 kg (4.01 lb.)
With Package Weight Approx. 2.94 kg (6.48 lb.)
Storage Conditions -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -60 °C to 60 °C (-76 °F to 140 °F). Humidity 95% or less (non-condensing)
Heater Yes
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat, mirror, flash log, password reset via e-mail, pixel counter, anti-banding
Demist Yes
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002 (excluding glass window)

Dokümanlar

Data Sheet - 4MP DeepinView Ultra Low Temperature Moto Varifocal Bullet Network Camera Network Camera-V5.8.3 Release Note-G5 - 4MP DeepinView Ultra Low Temperature Moto Varifocal Bullet Network Camera
