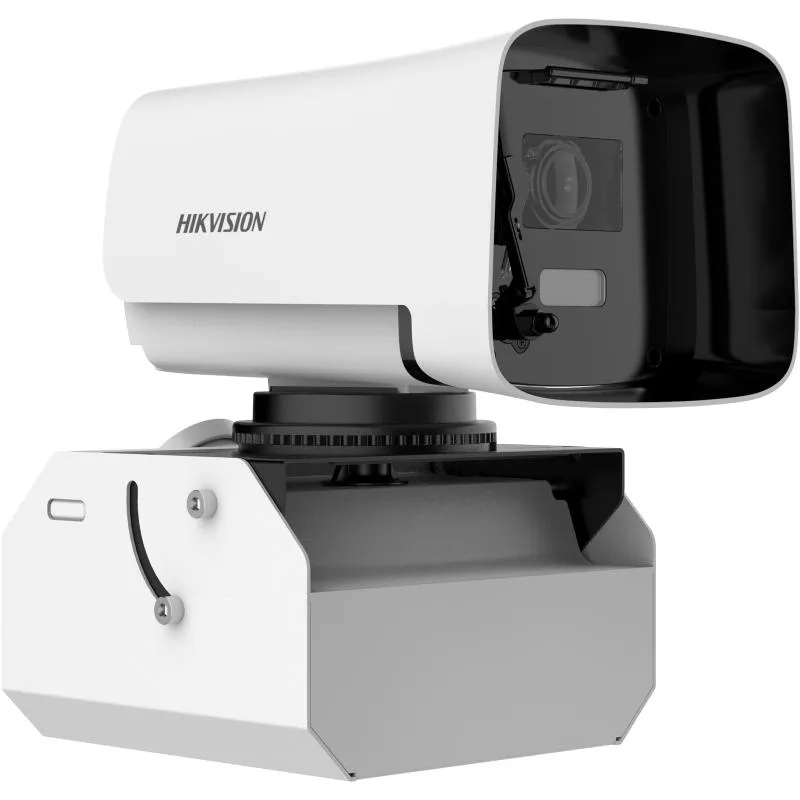

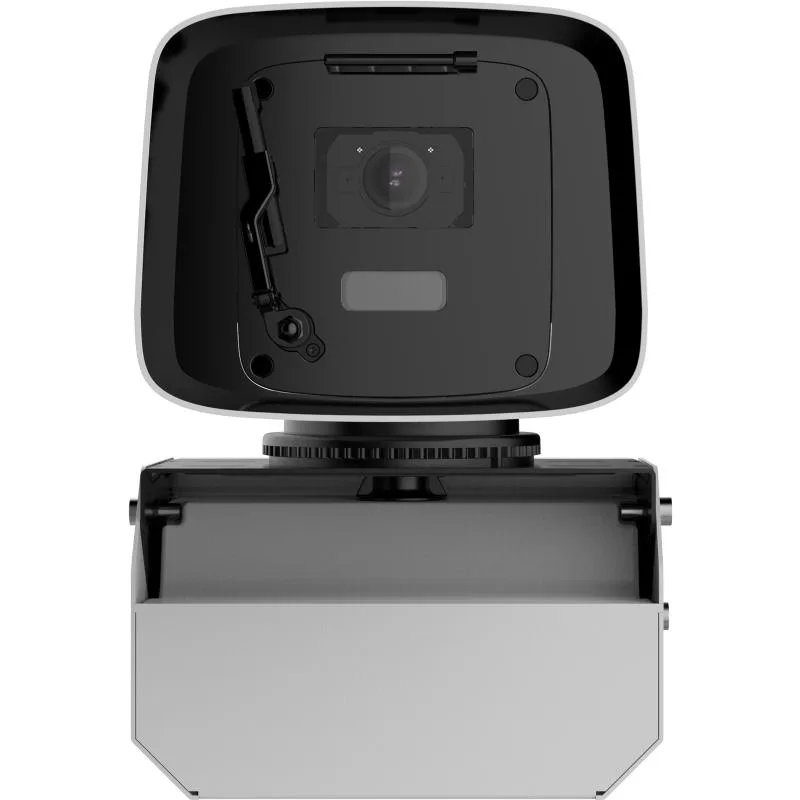

Hikvision iDS-2CD8A46G0/SC-XZY - Bullet IP kamera
Hikvision

Hikvision iDS-2CD8A46G0/SC-XZY - Bullet IP kamera

Model kodu
iDS-2CD8A46G0/SC-XZY
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Excellent low-light performance via Darkfighter technology. Efficient H.265+ compression technology to save bandwidth and storage. Two years maintenance-free with the built-in 2 L large-capacity water box for cleaning the camera window once a week after filling the water box. Ring-type sunshield to block the stray light incident from outside the range of lens field of view and reduce dust adhesion. Built-in heater to ensure clear image under rainy or snowy weather and enhance the lens window glass decontamination ability. Water and dust resistant (IP67) and anti-corrosion protection (NEMA 4X). White and IR supplement light

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination 2.8 to 12 mm: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with light; 8 to 32 mm: Color: 0.002 Lux @ (F1.7, AGC ON), 0 Lux with light
Shutter Time 1 s to 1/100,000 s
Day & Night Blue glass module (less ghost phenomenon)
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 89.1° to 36.3°, vertical FOV 48.3° to 20.7°, diagonal FOV 106.1° to 41.9°; 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°;
Focus Auto,Semi-auto,Manual
Iris Type DC iris
Aperture 2.8 to 12 mm: F1.47; 8 to 32 mm: F1.7
Supplement Light Type IR,White Light
Supplement Light Range IR: 2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m; White Light: 2.8 to 12 mm: Monitoring: 40 m; 8 to 32 mm: Monitoring: 60 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Target Cropping Yes
Region of Interest (ROI) 4 fixed regions for each stream
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect
Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR) 140 dB
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask 8 programmable polygon privacy masks
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Stabilization EIS
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 input, 2 output (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Power Output 12 VDC, max. 100 mA
Basic Event Motion detection,video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error)
Smart Event scene change detection,audio exception detection,defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Multi-target-type Detection Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features
Face Capture Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Metadata Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
Road Traffic and Vehicle Detection Blocklist and allowlist: up to 10,000 records Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.) License plate recognition rate ≥98%
Tunnel Event Detection Fallen object detection, pedestrian detection, parking detection, congestion detection, construction detection
Power 12 VDC ± 20%, 1.55 A, max. 18.6 W,three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.39 A, max. 22.5 W
Material Aluminum and plastic
Dimension 337.3 mm × 193.2 mm × 261.5 mm (13.28" × 7.61" × 10.29")
Package Dimension 350 mm × 270 mm × 355 mm (13.78" × 10.63" × 13.98")
Weight Approx. 3080 g (6.80 lb.)
With Package Weight Approx. 4780 g (10.54 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Dokümanlar

Data Sheet - 4MP DeepinView Self-Cleaning Bullet Camera DeepinView Camera_V5.10.0 release note - 4MP DeepinView Self-Cleaning Bullet Camera
