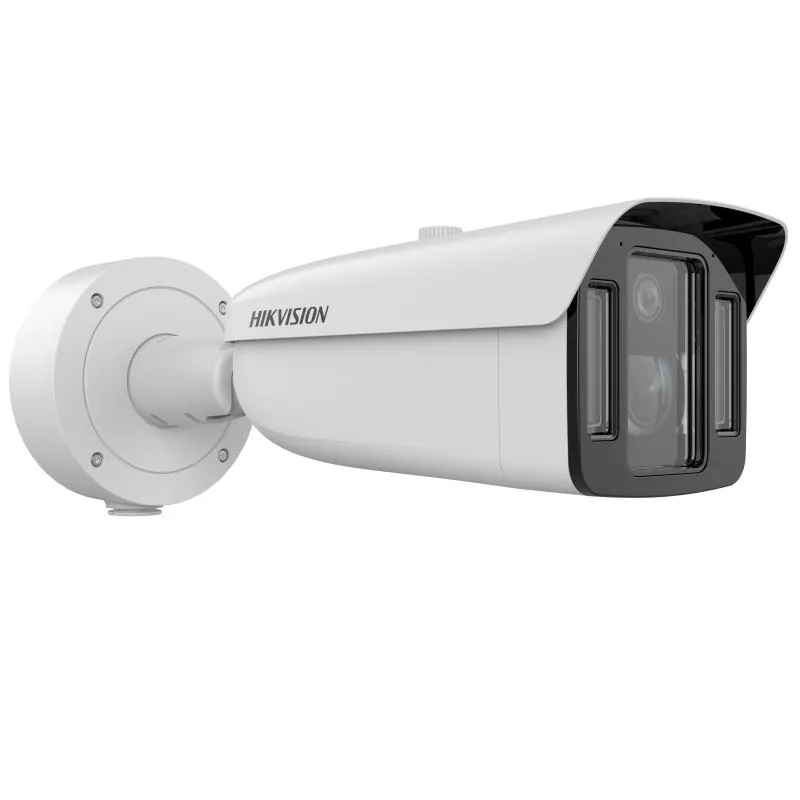

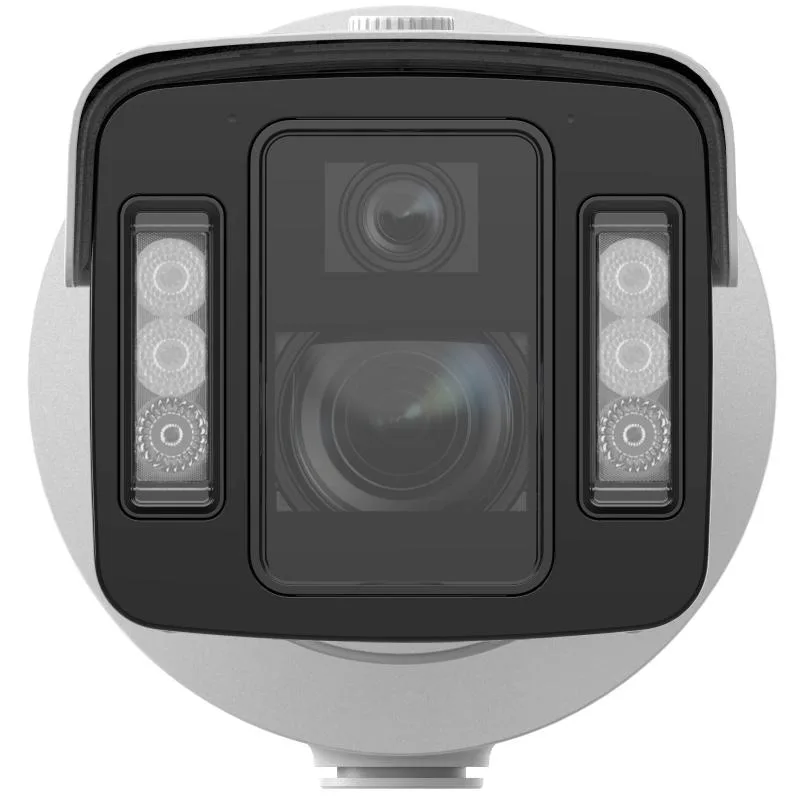

Hikvision iDS-2CD8A48G0-XZ(H)S(Y) - Bullet IP kamera

Model kodu
iDS-2CD8A48G0-XZ(H)S(Y)
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Excellent low-light performance via DarkFighterX and ColorVu technology. Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2. High quality imaging with 4 MP resolution in channel 1 and 4 MP resolution in channel 2. Clear imaging against strong back light due to 140 dB WDR technology. Efficient H.265+ compression technology to save bandwidth and storage. 5 streams to meet a wide variety of applications. Water and dust resistant (IP67) and vandal proof (IK10)

Teknik özellikler

Image Sensor Channel 1: 1/1.8" Progressive Scan CMOS, Channel 2: 1/1.8" Progressive Scan CMOS
Max. Resolution Channel 1: 2560 × 1440, channel 2: 2560 × 1440
Min. Illumination Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR, Channel 2: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night Blue glass module (less ghost phenomenon)
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
Focal Length & FOV Channel 1: 5 to 20 mm : horizontal FOV 59° to 24°, vertical FOV: 33.4° to 13.3°, diagonal FOV 67.5° to 27.5° Channel 2: 4 mm: horizontal FOV: 89°, vertical FOV: 45°, diagonal FOV: 107°
Focus Channel 1: semi-auto
Iris Type Channel 1: P-iris, Channel 2: Fixed
Aperture Channel 1: F1.6, Channel 2: F1.0
DORI Channel 1: Wide: D: 99.3 m, O: 39.4 m, R: 19.9 m, I: 9.9 m Tele: D: 248.3 m, O: 98.5 m, R: 49.7 m, I: 24.8 m Channel 2: D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
Supplement Light Type Hybrid (IR and White Light)
Supplement Light Range Channel 1: up to 60 m, Channel 2: up to 30 m
Smart Supplement Light Yes
IR Wavelength 750 nm
Main Stream Channel 1: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream Channel 1: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Target Cropping Yes
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Day/Night Switch Channel 1: Day, Night, Day (DarkfighterX), Auto (DarkfighterX), Schedule (DarkfighterX), Full Time Color, Channel 2: Day, Night, Auto, Scheduled-Switch, Triggered by Alarm input
Wide Dynamic Range (WDR) 140 dB
Image Enhancement Channel 1: BLC, HLC, 3D DNR, Defog, EIS, Channel 2: BLC, HLC, 3D DNR, Defog
Privacy Mask 8 programmable polygon privacy masks
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
Audio 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power Output 12 VDC, max. 50 mA
Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,video quality diagnosis, vibration detection
Smart Event Scene change detection,audio exception detection,defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing,audible warning
Multi-target-type Detection Channel 1, Detects up to 60 targets simultaneously, Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features
Face Capture Channel 1, Detects up to 120 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures

Dokümanlar

Data Sheet - 4Mp DeepinView multi-sensor bullet camera Quick Start Guide - 4Mp DeepinView multi-sensor bullet camera Network Camera V5.8.0 Release Note --H8G5 - 4Mp DeepinView multi-sensor bullet camera
