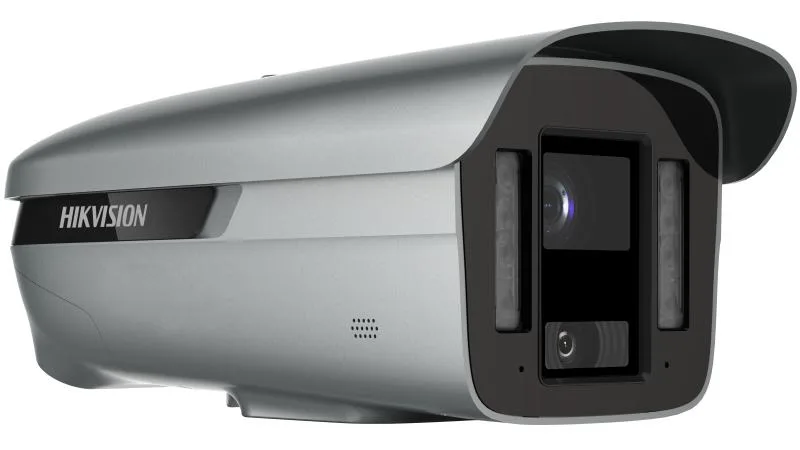

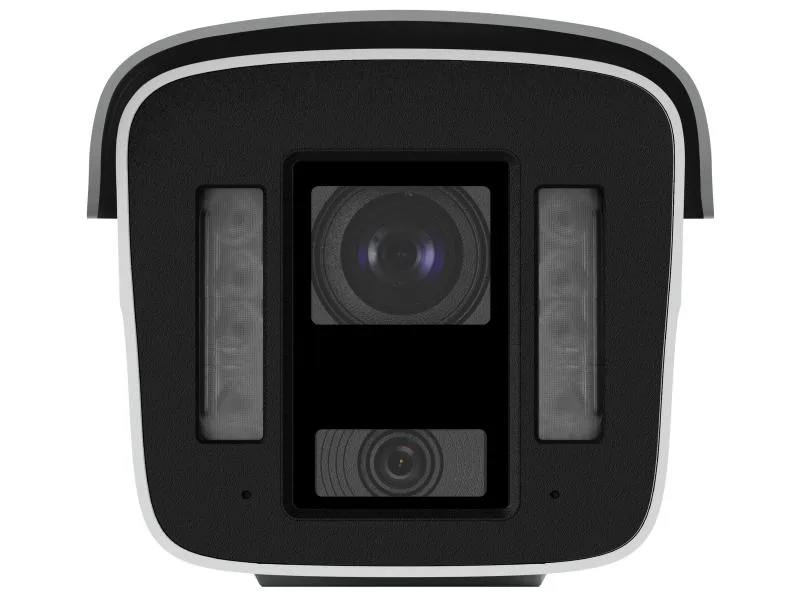

Name: Hikvision iDS-2CD8C46G0-XZS - Bullet IP kamera
Brand: Hikvision

Image Sensor

Channel 1: 1/1.8" Progressive Scan CMOS Channel 2: 1/1.8" Progressive Scan CMOS

Min. Illumination

Channel 1: Color: 0.002 Lux @(F1.4, AGC ON), B/W: 0.0006 Lux @(F1.4, AGC ON), 0 Lux with IR Channel 2: Color: 0.001 Lux @(F1.0, AGC ON) B/W: 0.0003 Lux @(F1.0, AGC ON), 0 Lux with IR

Shutter Speed

1/25 s~1/100,000 s

Slow Shutter

Yes

P/N

Wide Dynamic Range

120 dB

Day & Night

Channel 1: IR cut filter Channel 2: No

Available Camera/Video Channel

Focus

Semi-auto, manual

Lens Type & FOV

Channel 1: 11~40 mm @F1.4, horizontal FOV: 37.0°~11.5°, vertical FOV: 20.2°~6.5°, diagonal FOV: 43.2°~13.2° Channel 2: 4 mm @F1.0, horizontal FOV: 89°, vertical FOV: 46.5°, diagonal FOV: 105°

Lens Mount

Channel 1: CS Channel 2: M16

Aperture Type

Channel 1: P-Iris Channel 2: No

Wavelength

750 nm

Supplement Light Range

Channel 1: hybrid illumination (750+whitelight) Face: 20 m, normal surveillance: 80 m Channel 2: warm lamp Normal surveillance: 30 m

Max. Resolution

Channel 1: 2560 × 1440 Channel 2: 2560 × 1440

Main Stream

Channel 1: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream

Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

Channel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

Fifth Stream

Video Compression

H.265/H.264/MJPEG

Video Bit Rate

32 Kbps~16 Mbps

H.264 Type

BaseLine Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.265 and H.264 support

Region of Interest (ROI)

4 fixed regions for each stream

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2)

Audio Type

Mono sound

API

Open Network Video Interface, ISAPI, SDK, ISUP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+

Smart IR

The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.

Day/Night Switch

Day, Night, Auto, Schedule, Triggered by Alarm In

Target Cropping

Yes

DNR

3D DNR

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Alarm

3 inputs, 2 outputs (max. 24 VAC or 24 VDC, 1 A)

Audio

2 inputs (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 600 Ω, interface type: non-equilibrium, 2 built-in mics, 1 built-in speaker

RS-485

1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Video Output

1 Vp-p Composite Output (For debugging only)

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Power Output

12 VDC, max. 200 mA (supported by all power supply types)

Heater

Yes

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection, defocus detection

Counting

Yes

Multi-target-type Detection

Supports simultaneous detection of human body and face Gets 8 face features and 13 human body features

Face Capture

Face detection performance: detects up to 120 faces simultaneously Face detection angle: swings left and right from -60° to 60°, tilt up and down from -30° to 30° Upload face with background (1080p/720p) and closed-up face pictures

Face Recognition

Detects, captures and selects best human face pictures Recognizes face identity via face modeling, grading and comparing to those in face library Up to 10 face libraries, up to 150000 faces, and each face library is configurable Face library encryption: the camera chip has a hardware encryption module to protect data

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Linkage Method

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Online Upgrade

Yes

Firmware Version

V5.5.150

General Function

Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Software Reset

Yes

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
