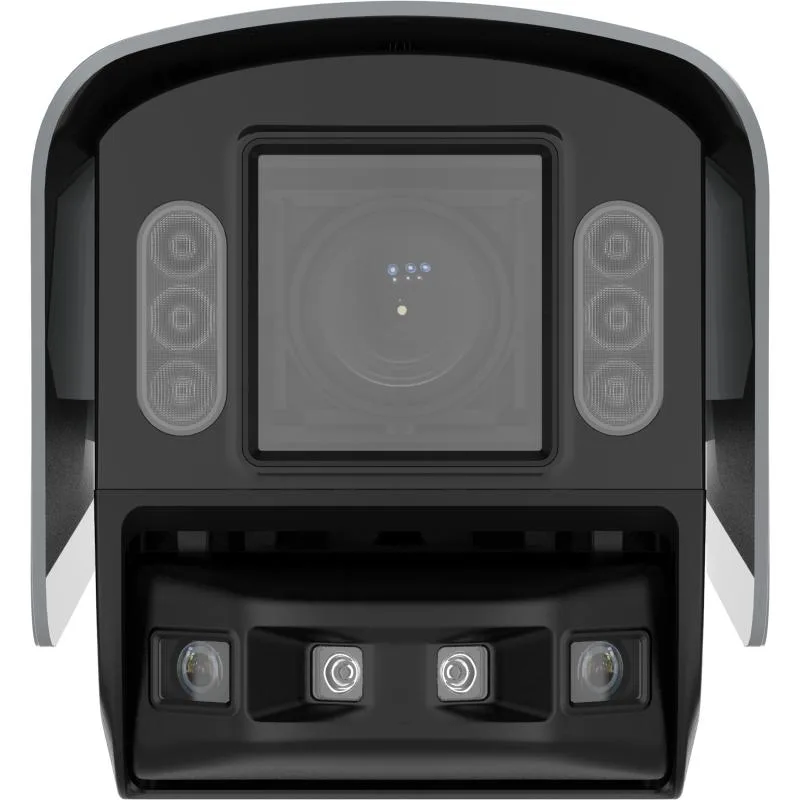

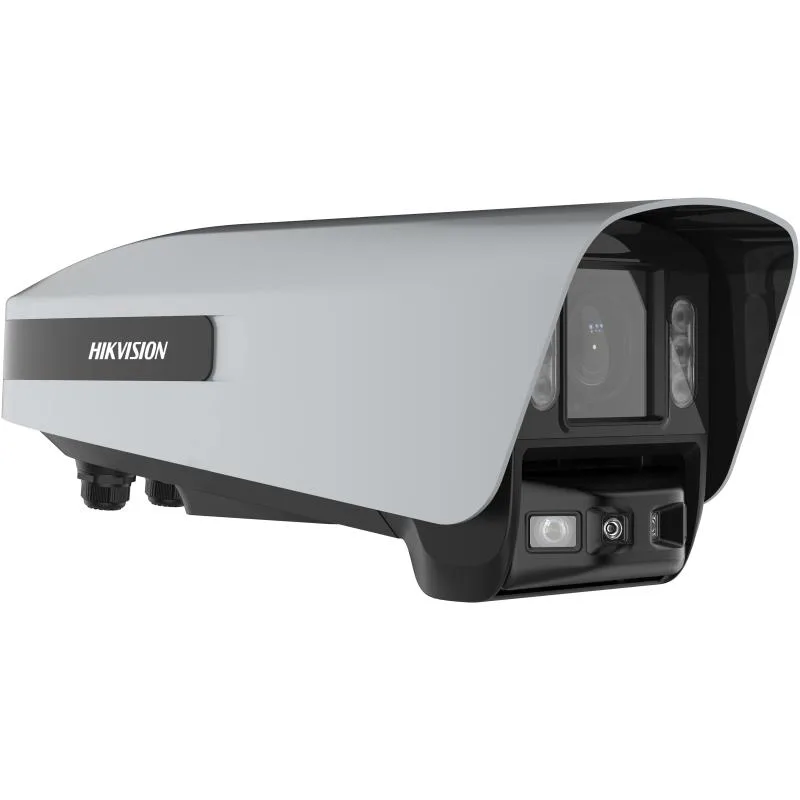

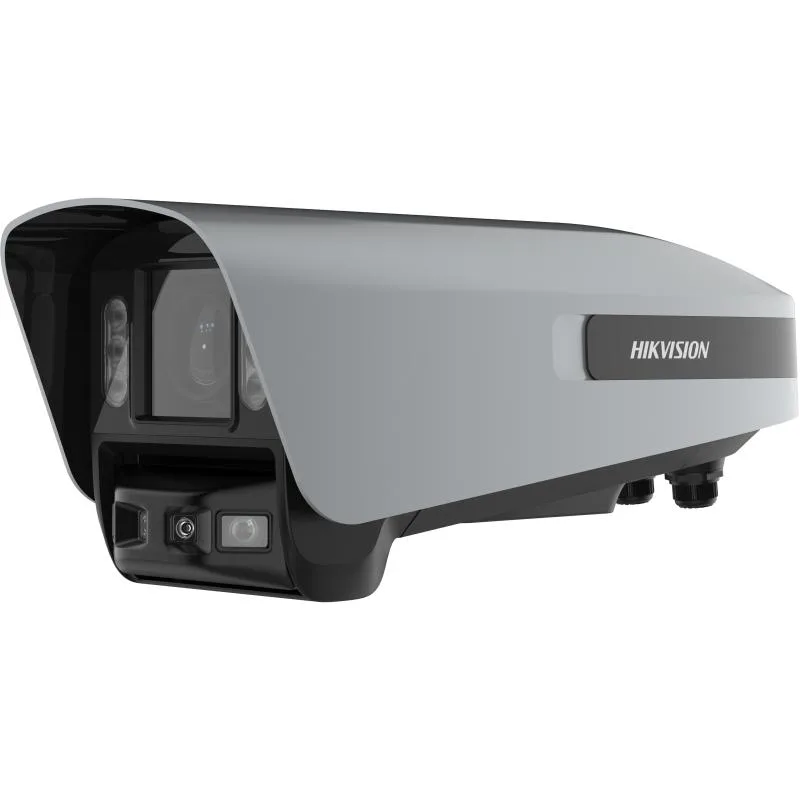

Hikvision iDS-2CD8C46G0P-XZS - Bullet IP kamera

Markaya göre filtrele

Hikvision iDS-2CD8C46G0P-XZS - Bullet IP kamera
Hikvision

Hikvision iDS-2CD8C46G0P-XZS - Bullet IP kamera

Model kodu
iDS-2CD8C46G0P-XZS
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Adopt dual-channel design so you can get details in channel 1 and panorama in channel 2.. High quality imaging with 4 MP resolution in channel 1 and 7 MP in channel 2. Excellent low-light performance via DarkFighter technology. Clear imaging against strong back light due to 120 dB WDR technology in channel 1 and digital WDR in channel 2. Efficient H.265+ compression technology to save bandwidth and storage. Face detection supports up to 120 faces per frame. Built-in high-efficient patent soft supplement light without light pollution, and ensure the face capture in night

Teknik özellikler

Image Sensor Channel 1: 1/1.8" Progressive Scan CMOS Channel 2: 1/1.8" Progressive Scan CMOS
Min. Illumination Channel 1: Color: 0.0014 Lux @(F1.2, AGC ON) B/W: 0.0004 Lux @(F1.2, AGC ON), 0 Lux with IR Channel 2: Color: 0.001 Lux @(F1.0, AGC ON) B/W: 0.0003 Lux @(F1.0, AGC ON), 0 Lux with IR
Shutter Speed 1/25 s~1/100,000 s
P/N P/N
Wide Dynamic Range Channel 1: 120 dB Channel 2: digital WDR
Day & Night Channel 1: IR cut filter Channel 2: No
Angle Adjustment Channel 1: Capture unit: Tilt ±5° motorized ajdustment Channel 2: Monitoring unit: Tilt ±15° motorized adjustment
Power-off Memory Yes
Available Camera/Video Channel 2
Focus Channel 1: (Motorized) 10~50 mm: semi-auto Channel 2: (Fixed) 4 mm: No
Lens Type & FOV Channel 1: (Motorized) 10~50 mm @F1.2, horizontal FOV: 39.9°~9.5°, vertical FOV: 22.0°~5.3°, diagonal FOV: 46.3°~10.9° Channel 2: (Fixed) 4 mm @F1.0: horizontal FOV 160°, vertical FOV: 48°
Aperture Channel 1: (motorzied) 10~50 mm, F1.2 Channel 2: (Fixed) 4 mm, F1.0
Lens Mount Channel 1: (Mortorized) 10~50 mm, CS Channel 2: (Fixed) 4 mm, M16
Fixed Aperture Channel 1: (Mortorized) 10~50 mm, Yes Channel 2: (Fixed) 4 mm, No
Aperture Type Channel 1: (Mortorized) 10~50 mm, auto-iris Channel 2: (Fixed) 4 mm, fixed
Smart Supplement Light Yes
Supplement Light Channel 1: hybrid illumination Channel 2: whitelight
Supplement Light Range Channel 1: 15 m (Face capture/recognition) Channel 2: 30 m (normal surveillance)
Max. Resolution Channel 1: 2560 × 1440 Channel 2: 4976 × 1452
Main Stream Channel 1: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2: 50Hz: 25 fps (4976 × 1452) 60Hz: 30 fps (4976 × 1452)
Sub Stream Channel 1: 50Hz: 25 fps (704 × 576, 640 × 480) 60Hz: 30 fps (704 × 480, 640 × 480) Channel 2: 50Hz: 25 fps (2560 × 748) 60Hz: 30 fps (2560 × 748)
Third Stream Channel 1: 50Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: No
Fourth Stream Channel 1: 50Hz: 25 fps (704 × 576, 640 × 480) 60Hz: 30 fps (704 × 480, 640 × 480) Channel 2: No
Fifth Stream Channel 1: 50Hz: 25 fps (704 × 576, 640 × 480) 60Hz: 30 fps (704 × 480, 640 × 480) Channel 2: No
Video Compression H.265/H.264/MJPEG
Video Bit Rate 32 Kbps~16 Mbps
H.264 Type BaseLine Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Scalable Video Coding (SVC) H.265 and H.264 support
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8- 320Kbps(MP3)
Audio Type Mono sound
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Network Storage microSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
Target Cropping Channel 1: Yes Channel 2: No
DNR 3D DNR
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement Channel 1: BLC, HLC, 3D DNR, Defog, EIS Channel 2: BLC, HLC, 3D DNR, Defog
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR 50 dB
Alarm 2 inputs, 2 outputs (max. 24 VAC or 24 VDC, 1 A)
Audio 1 inputs (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 600 Ω, interface type: non-equilibrium,
RS-485 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Video Output 1 Vp-p Composite Output (For debugging only)
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection, defocus detection
Counting Yes
Multi-target-type Detection Supports simultaneous detection of human body and face Gets 8 face features and 13 human body features
Face Capture Face detection performance: Detects up to 120 faces simultaneously Face detection angle: Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30° Upload face with background (1920 × 1080, 1280 × 720, 2560 × 1440) and closed-up face pictures
Face Recognition Detects, captures and selects best human face pictures Recognizes face identity via face modeling, grading and comparing to those in face library Up to 10 face libraries, up to 150000 faces, and each face library is configurable Face library encryption: the camera chip has a hardware encryption module to protect data
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Human Body Attributes Yes
Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Online Upgrade Yes
Firmware Version V5.5.150
General Function Anti- flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks,flash log, password reset via e-mail, pixel counter
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Dokümanlar

User Manual - 4Mp DeepinView multi-sensor bullet camera
