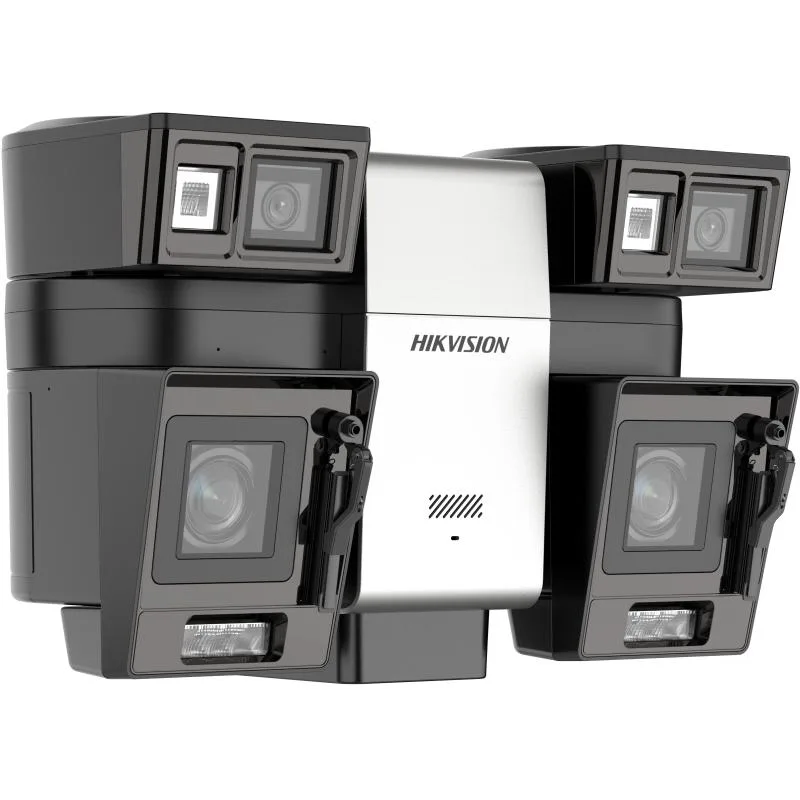

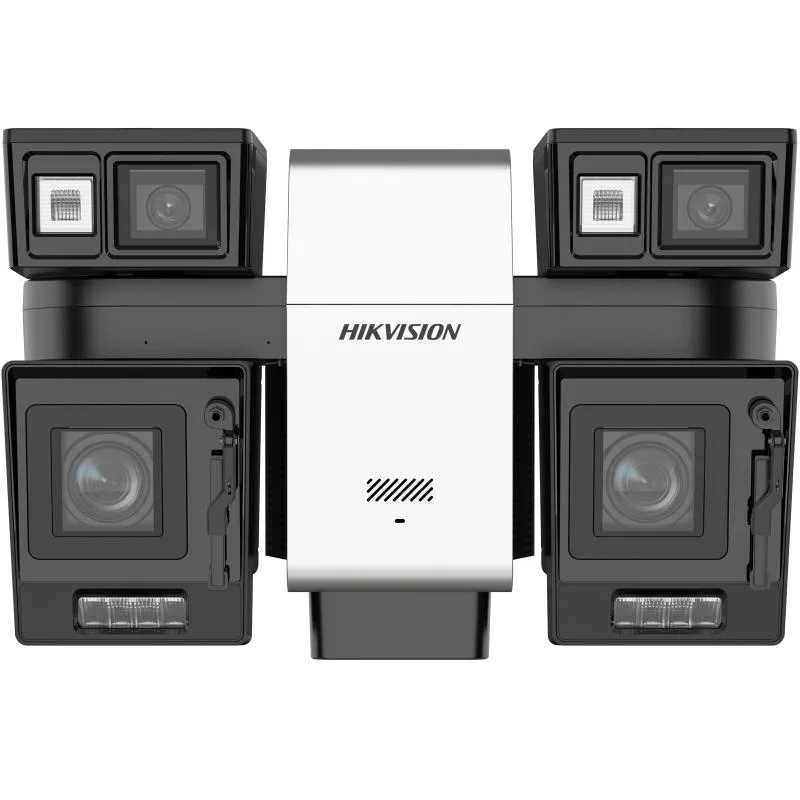

Hikvision iDS-2CD8V446G0/X4-XZHS(Y)

Model kodu: iDS-2CD8V446G0/X4-XZHS(Y)
Sistem: Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Excellent low-light performance via DarkFighter2.0 technology. Intelligent functions based on deep learning in various scenarios. High quality imaging with 4 MP resolution in channel 1/2/3/4. Clear imaging against strong back light due to 150 dB WDR technology. Efficient H.265+ compression technology to save bandwidth and storage. Adopt 4-channel design with motorized PT. Capture vehicles and humans of different speed clearly via ShotN technology. Built-in power meter for historical power statistics. Intrusion-triggered lighting to achieve carbon neutrality and energy saving. Support wiper for window cleaning and built-in heater to ensure clear image. Water and dust resistant (IP67) and corrosion resistant (NEMA 4X)

Teknik özellikler

Image Sensor	Channel 1: 1/1.8" Progressive Scan CMOS, Channel 2: 1/1.8" Progressive Scan CMOS, Channel 3: 1/1.8" Progressive Scan CMOS, Channel 4: 1/1.8" Progressive Scan CMOS
Max. Resolution	Channel 1: 2560 × 1440, Channel 2: 2560 × 1440, Channel 3: 2560 × 1440, Channel 4: 2560 × 1440
Min. Illumination	Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 2: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR Channel 3: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 4: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	Channel 1: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 2: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 3: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 4: IR cut filter, Blue glass module to reduce ghost phenomenon
Angle Adjustment	Channel 1: Pan: -10° to 190°, tilt: -5° to 25°, Channel 2: Pan: 0° to 180°, tilt: -5° to 25°, Channel 3: Pan: -10° to 190°, tilt: -5° to 25°, Channel 4: Pan: 0° to 180°, tilt: -5° to 25°
Lens Type	Channel 1: Varifocal lens, 10 to 50 mm, Channel 2: Fixed focal lens, 4 mm, Channel 3: Varifocal lens, 10 to 50 mm, Channel 4: Fixed focal lens, 4 mm
Focal Length & FOV	Channel 1: 10 to 50 mm, horizontal FOV 39.2° to 8.8°, vertical FOV 21.9° to 5.0°, diagonal FOV 45.2° to 10.1° Channel 2: 4 mm, horizontal FOV 85.2°, vertical FOV 45.2°, diagonal FOV 101.7° Channel 3: 10 to 50 mm, horizontal FOV 39.2° to 8.8°, vertical FOV 21.9° to 5.0°, diagonal FOV 45.2° to 10.1° Channel 4: 4 mm, horizontal FOV 85.2°, vertical FOV 45.2°, diagonal FOV 101.7°
Focus	Auto,Semi-auto,Manual
Min. Focus Distance	Channel 1/3: 1.5 m Channel 2/4: 3 m
Iris Type	DC iris
Aperture	Channel 1: F1.6, Channel 2: F1.0, Channel 3: F1.6, Channel 4: F1.0
Depth of Field	Channel 1: 3.1 m to ∞ Channel 2: 3.1 m to ∞ Channel 3: 3.1 m to ∞ Channel 4: 3.1 m to ∞
Movement Range (Pan)	Channel 1/Channel 3: Pan: -10° to 190° Channel 2/Channel 4: Pan: 0° to 180°
Movement Range (Tilt)	Channel 1/Channel 3: Tilt: -5° to 25° Channel 2/Channel 4: Tilt: -5° to 25°
Pan Speed	Pan speed: configurable from 0.1° to 5°/s, preset speed: 2.5°/s
Tilt Speed	Tilt speed: configurable from 0.1° to 5°/s, preset speed 2.5°/s
DORI	Fixed lens: D: 72.1 m, O: 28.6 m, R: 14.4 m, I: 7.2 m Varifocal lens: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m Tele: D: 635.9 m, O: 252.3 m, R: 127.2 m, I: 63.6 m
Supplement Light Type	IR,White Light,Hybrid (IR and White Light)
Supplement Light Range	Channel 1/3: up to 100 m Channel 2/4: up to 30 m
Supplement Light Number	10
Smart Supplement Light	Yes
IR Wavelength	850 nm
Main Stream	Channel 1 & Channel 3: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2 & Channel 4: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream	Channel 1 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream	Channel 1 & Channel 3: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream	Channel 1 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream	Channel 1 & Channel 3: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2 & Channel 4: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
Video Bit Rate	Channel1/3: 32 Kbps to 16 Mbps, Channel2/4: 32 Kbps to 8 Mbps
H.264 Type	Baseline Profile,High Profile,Main Profile
H.265 Type	Main Profile
Bit Rate Control	CBR,VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	4 fixed regions for each stream
Target Cropping	Yes
Audio Type	Mono sound
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 48 Kbps (PCM)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering	Yes
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
Simultaneous Live View	Up to 20 channels
API	ONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),CVR,NVR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client	iVMS-4200,Hik-Connect
Web Browser	Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 13+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch	Yes
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	150 dB
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction
Privacy Mask	8 programmable polygon privacy masks
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Satellite Positioning Detection	GPS
Ethernet Interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
