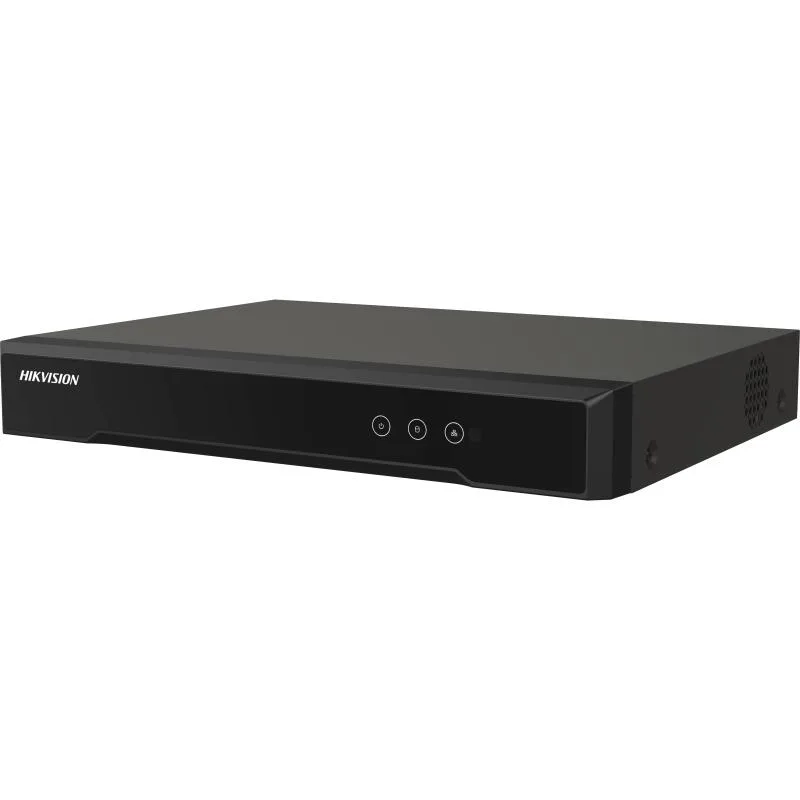

Hikvision iDS-6704HUHI-M - DVR kayıt cihazı

Markaya göre filtrele

Hikvision iDS-6704HUHI-M - DVR kayıt cihazı
Hikvision

Hikvision iDS-6704HUHI-M - DVR kayıt cihazı

Model kodu
iDS-6704HUHI-M
Sistem
Kamera sistemi
Kategori
DVR kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4 channels and 1 HDD 1U AcuSense DVS. False alarm reduction by human and vehicle target classification based on deep learning. Efficient H.265 pro+ compression technology. Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps. 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Teknik özellikler

IP Video Input 2-ch (up to 6-ch) Up to 8 MP resolution Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 4-ch
HDTVI Input 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 8 MP signal input is only available for channel 1.
AHD Input 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection 32
Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface Rear panel: 1 × USB 2.0
Alarm In/Out N/A
Power Supply 12 VDC
Consumption ≤ 10 W
Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 315 × 240 × 48 mm
Weight ≤ 1.16 kg (2.6 lb)

Dokümanlar

Turbo HD DVR V4.70.115build250122Release Notes - 4-ch 5 MP 1U H.265 DVS

Bu ürünü satan firmalar

1 firma
TESAN İLETİŞİM A.Ş
Bahçelievler, İstanbul
