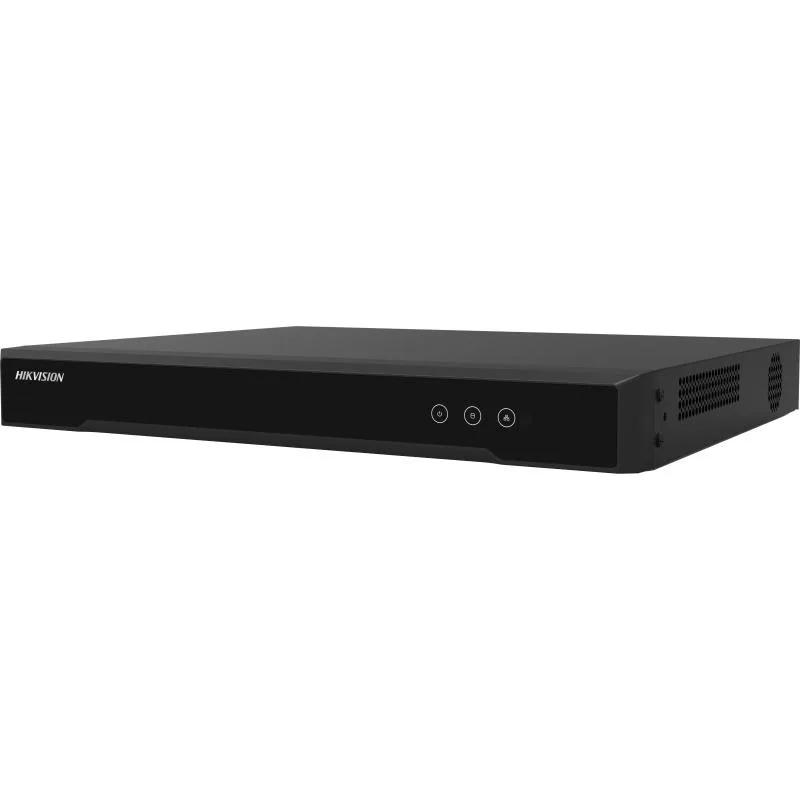

Hikvision iDS-6716HUHI-M - DVR kayıt cihazı
Hikvision

Hikvision iDS-6716HUHI-M - DVR kayıt cihazı

Model kodu
iDS-6716HUHI-M
Sistem
Kamera sistemi
Kategori
DVR kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

16 channels and 2 HDD 1U AcuSense DVS. False alarm reduction by human and vehicle target classification based on deep learning. Efficient H.265 pro+ compression technology. Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps. 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP). Up to 24 network cameras can be connected.

Teknik özellikler

Line Crossing Detection/Intrusion Detection Up to 4-ch
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms; Quick search by object or event type is supported;
IP Video Input 8-ch (up to 24-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDTVI Input 8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
AHD Input 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution Main stream: 8 MP@8 fps/5 MP@12 fps/ 4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Remote Connection 128
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface 1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
SATA 2 SATA interface
Capacity Up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
Alarm In/Out 16/4
Power Supply 12 VDC
Consumption ≤ 19 W
Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
Weight ≤ 2 kg (4.4 lb)

Dokümanlar

Turbo HD DVR V4.70.114build250122Release Notes - 16-ch 5MP 1U H.265 DVR

Bu ürünü satan firmalar

1 firma
TESAN İLETİŞİM A.Ş
Bahçelievler, İstanbul
