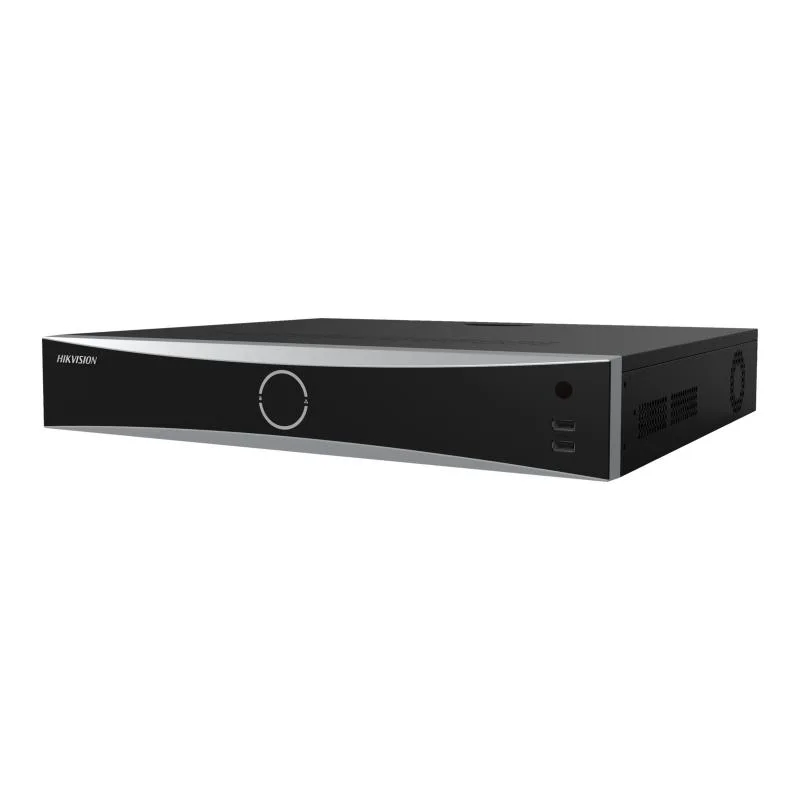

Hikvision iDS-7716NXI-I4/16S(B) - NVR kayıt cihazı
Hikvision

Hikvision iDS-7716NXI-I4/16S(B) - NVR kayıt cihazı

Model kodu
iDS-7716NXI-I4/16S(B)
Sistem
Kamera sistemi
Kategori
NVR kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

H.265+/H.265/H.264+/H.264 video formats. Up to 16 channel IP cameras can be connected. 4 HDD can be used for continuous video recording. Intelligent analytics based on deep learning algorithm. Up to 16-ch perimeter protection. Up to 16-ch 1080p decoding capability

Teknik özellikler

Live view / Playback resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Decoding format H.265/H.265+/H.264/H.264+/MPEG4
Synchronous playback 16-ch
Capability 16-ch @ 1080p
Hard Disk 4 SATA interfaces for 4HDDs/Up to 8 TB capacity for each HDD/1 eSATA interface
Incoming bandwidth 320 Mbps
Outgoing bandwidth 256 Mbps
Remote connection 128
Serial interface RS-485 (half-duplex), RS-232, Keyboard
Network interface 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out 16/8
False alarm filtering Up to 16-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
IP video input 16-ch Up to 12 MP resolution
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 k Ω)
CVBS output (Optional) 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI1 output resolution 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K（2560×1440）/60Hz，1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2 output resolution 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz，1024×768/60Hz
Recording resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio output 1-ch, RCA (Linear, 1 KΩ)
Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Power Supply 100 to 240 VAC, 50 to 60 Hz
Power ≤ 80 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90 %
Consumption (without hard disk) ≤ 30 W
Chassis 19-inch rack-mounted 1.5U chassis
Dimensions(W × D × H) 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
Weight(without hard disk) ≤ 5 kg (11 lb)

Dokümanlar

Quick Start Guide - 16-ch 1.5U 4K DeepinMind NVR User Manual - 16-ch 1.5U 4K DeepinMind NVR
