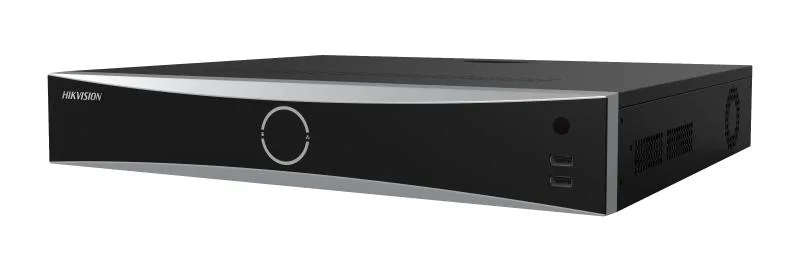

Hikvision iDS-7716NXI-I4/X(B) - NVR kayıt cihazı

Markaya göre filtrele

Hikvision iDS-7716NXI-I4/X(B) - NVR kayıt cihazı
Hikvision

Hikvision iDS-7716NXI-I4/X(B) - NVR kayıt cihazı

Model kodu
iDS-7716NXI-I4/X(B)
Sistem
Kamera sistemi
Kategori
NVR kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

H.265+/H.265/H.264+/H.264 video formats. Up to 16 channel IP cameras can be connected. 4 HDD can be used for continuous video recording. Intelligent analytics based on deep learning algorithm. Up to 16-ch perimeter protection. Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture. Up to 4-ch video structuralization. Up to 16-ch 1080p decoding capability

Teknik özellikler

Human/Vehicle Analysis Up to 16-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
Facial Detection and Analytics 8-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
Face Picture Library 32 libraries；100, 000 pictures
Face Picture Comparison 16-ch face pictures comparison alarm, Alarm linkage actions: recording, audio warning, notify surveillance center, send email
IP Video Input 16-ch；Up to 12 MP resolution
HDMI 1 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA Simultaneous Output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Incoming Bandwidth 12 MP/8 MP/6 MP/5 MP/4 MP/3MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Outgoing Bandwidth 256 Mbps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Format H.265/H.265+/H.264/H.264+/MPEG4
Decoding Capability 16-ch @ 1080p
Synchronous playback 16-ch
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Remote Connection 128
Network Interface 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
SATA 4 SATA interfaces
eSATA 1 eSATA interface
Capacity Up to 10 TB capacity for each HDD
Serial Interface RS-485 (half-duplex), RS-232, Keyboard
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 16/8
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 30 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90 %
Chassis 19-inch rack-mounted 1.5U chassis
Dimension (W × D × H) 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
Weight ≤ 5 kg (11 lb)

Dokümanlar

Quick Start Guide - 16-ch 1.5U 4K DeepinMind NVR User Manual - 16-ch 1.5U 4K DeepinMind NVR
