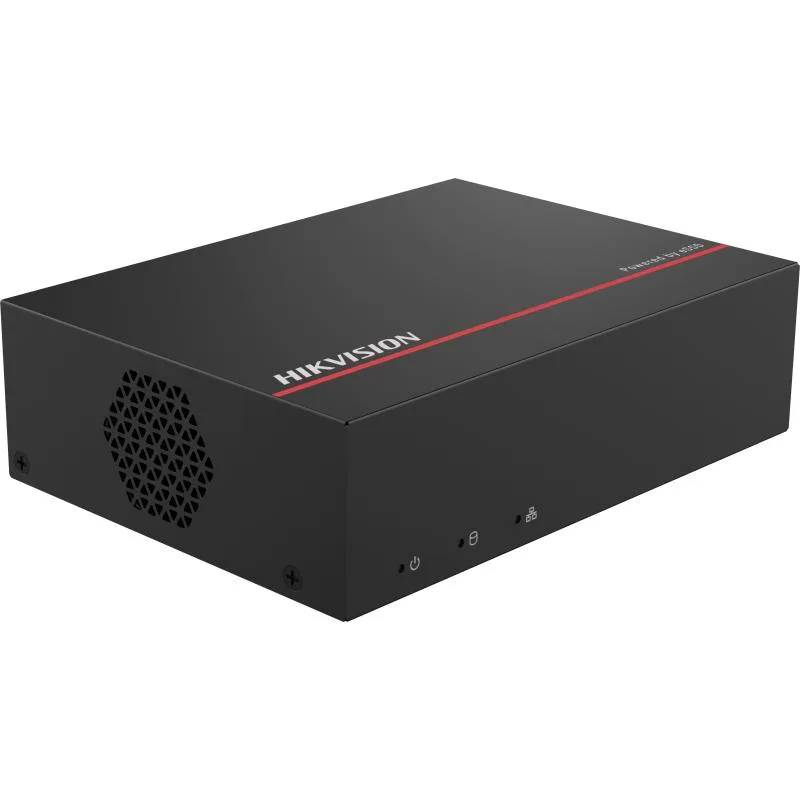

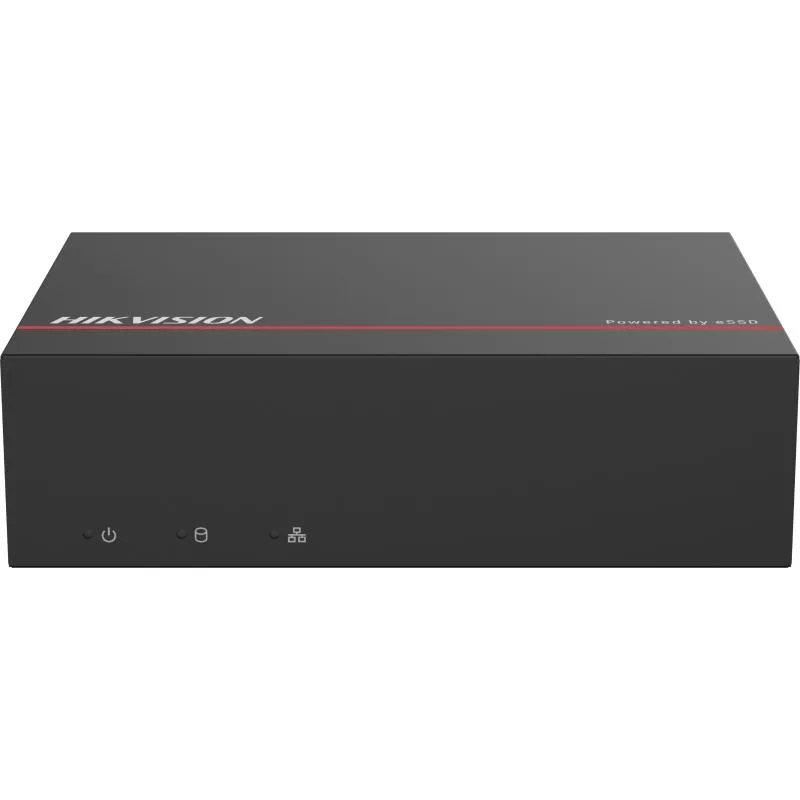

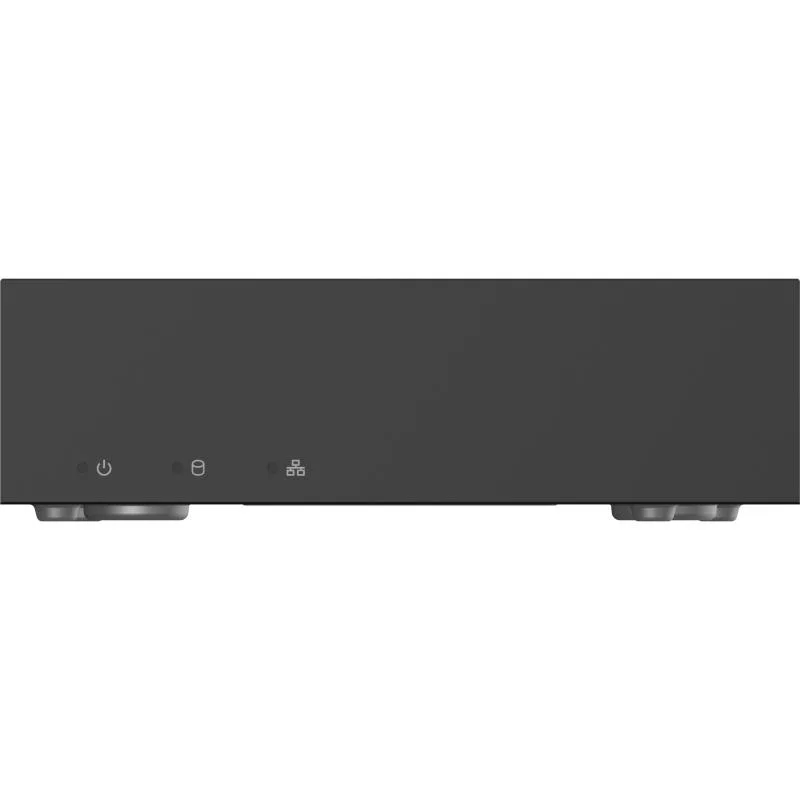

Hikvision iDS-E04HUHI-XD - DVR kayıt cihazı

Markaya göre filtrele

Hikvision iDS-E04HUHI-XD - DVR kayıt cihazı
Hikvision

Hikvision iDS-E04HUHI-XD - DVR kayıt cihazı

Model kodu
iDS-E04HUHI-XD
Sistem
Kamera sistemi
Kategori
DVR kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Powered by M-SATA eSSD technology. Deep learning based human and vehicle targets classification of Motion Detection 2.0. Deep learning-based perimeter protection. Scene-adaptive bitrate control video compression. Up to 8 MP@8 fps encoding capability. Low power consumption. Audio via coaxial cable

Teknik özellikler

Human/Vehicle Analysis Up to 4-ch
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
IP Video Input 2-ch Up to 8 MP resolution Support H.265 IP cameras

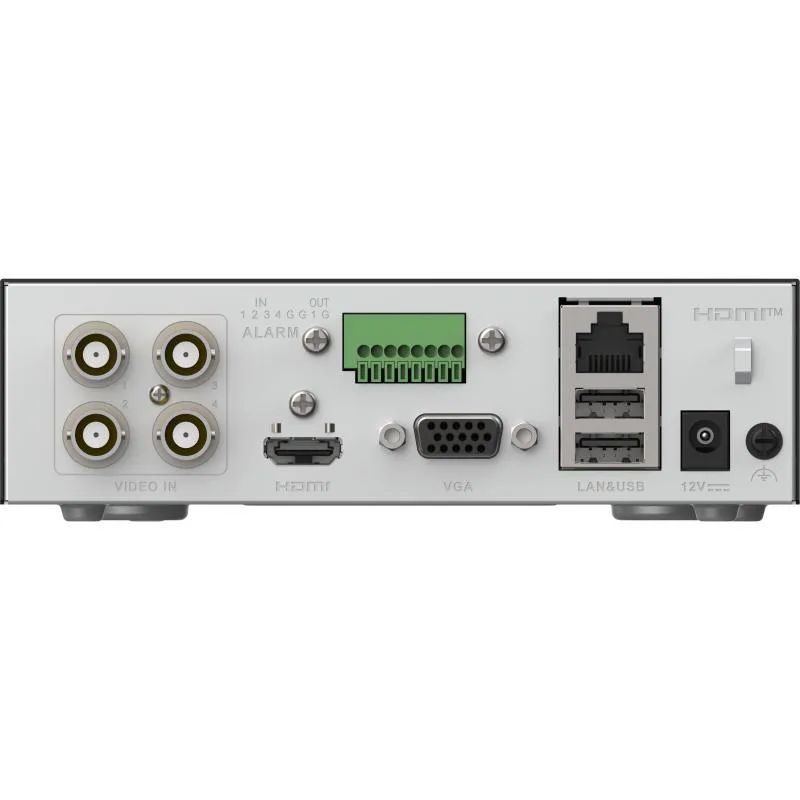

Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 8 MP@15 fps, 8 [email protected] fps, 3K@20 fps, 5 MP@20 fps, 5 [email protected] fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60
AHD Input 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input 8 MP@15 fps, 8 MP@12 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS Input Support
HDMI Output 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input 4-ch via coaxial cable
Audio Output 1-ch via HDMI
Synchronous Playback 4-ch
Video Compression H.265 Pro/H.265
Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/CIF
Frame Rate Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
Stream Type Video, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
Audio Compression G.711u
Audio Bitrate 64 Kbps
Total Bandwidth 96 Mbps Incoming bandwidth: 8 Mbps
Remote Connection 32
Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Capacity Built-in 2048 GB eSSD (1920 GB available) Note: M-SATA interface, capable of plugging and upgrading capacity. The device can store about 4 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only
Alarm In/Out OPTIONAL 4/1
USB Interface Rear panel: 2 × USB 2.0
Power Supply 12 VDC, 1 A
Consumption ≤ 7.5 W (with eSSD)
Working Temperature -10 °C to 45 °C (14 °F to 113 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 151 × 121× 46 mm (5.94 × 4.76 × 1.81 inch)
Weight ≤ 0.5 kg (with eSSD, 1.1 lb.)

Dokümanlar

Data Sheet - 4-ch 5MP 1U H.265 eSSD AcuSense DVR Turbo HD DVR V4.75.030 build250508 Release Notes - 4-ch 5MP 1U H.265 eSSD AcuSense DVR
