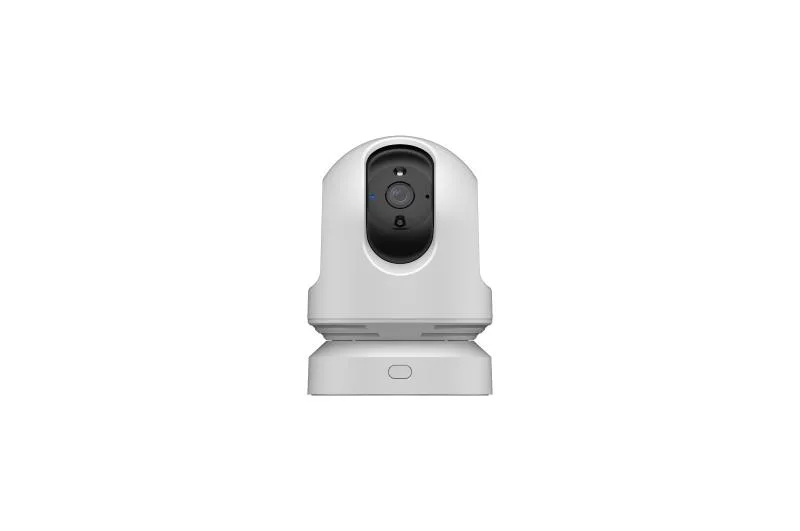

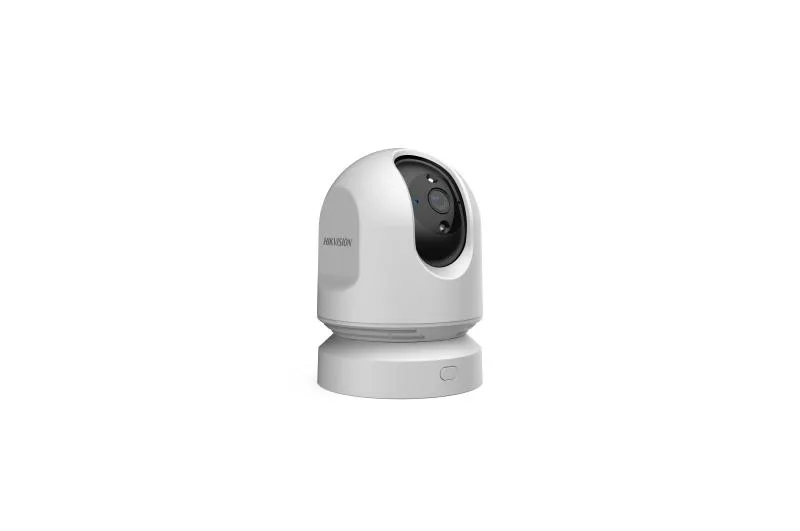

Hikvision iDS-MCD20M - PTZ IP kamera

Markaya göre filtrele

Hikvision iDS-MCD20M - PTZ IP kamera
Hikvision

Hikvision iDS-MCD20M - PTZ IP kamera

Model kodu
iDS-MCD20M
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

1/2.9" progressive scan CMOS; 1920 × 1080/1280 × 720 resolution. H.265/H.264 video compression. Up to 10 m IR distance. Built-in TF card slot, up to 512GB. Support 4G, Wi-Fi, GPS. Quick installation with the magnetic base and the tripod bracket. Wi-Fi AP, which allows you to connect the mobile phone to the camera directly and control the camera conveniently. Built-in battery for continuous work for 12 hours. 355° pan and -2.5° to 52° (auto-flip) tilt movement range for PTZ

Teknik özellikler

Image Sensor 1/2.9" progressive scan CMOS
Zoom 4x Digital
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.015 Lux@ (F1.0, AGC ON)
Day & Night Switch IR Cut Filter Automatically
Focal Length 3.8 mm fixed lens
Aperture F2.0
FOV Horizontal FOV: 80° Vertical FOV: 44° Diagonal FOV: 98°
Video Compression H.264, H.265
Video Format PS
Main Stream 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 704 × 288, 352 × 288)
Sub-Stream 25 fps (1280 × 720, 704 × 576, 704 × 288, 352 × 288)
Audio Compression G.711ulaw, G.711alaw, G.722.1
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1)
Image Format JPEG
RAM 128MB
ROM Default 64 GB, 128 GB/256 /512GB optional
IR Range Up to 10 m
IR Wavelength 850 nm
Positioning Mode GPS
Wi-Fi Frequency Band 2.412 to 2.472 GHz
Cellular Network Available for models with '/GLE', '/GLE/PIR': GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20 TDD -LTE: B38/B40/B41
Wi-Fi Protocol 802.11 a/b/g/n
Protocol HTTPS, RTSP, NTP, FTP
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Indicator 1 Indicator for Charging/Working/Recording/Exception
Button Power
SIM Card Available for models with '/GLE' : 1 (Nano-SIM card slot)
Ethernet 1 RJ45 10M/100M/1000M self-adaptive ethernet port(s)
Charging Interface Type-C
Extended Storage 1 Built-in memory card slot, up to 512 GB, supporting TF card
USB USB 2.0
Audio 1 built-in mic(s),1 speaker(s)
General RJ45 port, USB port
Pan 0°~355°
Tilt -2.5° to 52° (Auto-flip)
Operating Condition -20 °C to 60 °C (-4 °F to 140 °F), Humidity 95% or less (non-condensing)
Operating System Linux
Storage Condition -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
MIC Supported
Speaker 1 Built-in speaker, Max. power consumption: 1.2 W, Max. sound pressure level: 95 dB (10 cm)
Client Hik-Connect, HikCentral Pro, HikCentral Master
Web Browser Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
Dimension 94.5 mm × 94.5 mm × 132 mm (3.72" × 3.72" × 5.2")
Power 5 VDC, 2.0 A, max. 10 W
Weight 380 g (without mounting) (1.54 lb.)
Installation Method Desk-Mounted, Wall-Mounted, Tripod-Mounted, Movable Bracket
Packing List 1 × USB cable, 1 × wall mounted bracket
Battery Type Lithium-ion battery, integral
Capacity 3220 mAh
Charging Time ≤ 4 h
Battery Life Up to 12 h in 720p resolution¹
RF EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
Safety CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020 CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Warranty 2 years for the device, 1 year for the battery

Dokümanlar

Data Sheet - 4G Mini Portable Speed Dome
