Hikvision iDS-MCD402-ES - Plaka tanıma (ANPR) kamera

Markaya göre filtrele

Hikvision iDS-MCD402-ES - Plaka tanıma (ANPR) kamera
Hikvision

Hikvision iDS-MCD402-ES - Plaka tanıma (ANPR) kamera

Model kodu
iDS-MCD402-ES
Sistem
Kamera sistemi
Kategori
Plaka tanıma (ANPR) kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Support for dual cameras, Lens1 : 1/1.8" progressive scan CMOS; Lens2 : 1/1.8" CMOS. 36× optical zoom, 12× digital zoom. 3D DNR/Defog/EIS. Up to 100 m IR distance. Quick installation with the magnetic base and the tripod bracket. Replaceable battery for sustainable work. 360° endless pan and -20° to 90° (auto-flip) tilt movement range for PTZ. Embedded screen for status display, e.g. battery, GPS, 3G/4G, record status, storage capacity, Bluetooth, platform access, Wi-Fi, and smart algorithm mode. Supports accessing via IE browser and client, and remote operation

Teknik özellikler

Image Sensor Lens 1 : 1/1.8" progressive scan CMOS Lens 2 : 1/1.8" progressive scan CMOS
Zoom 36x Optical, 12x Digital
Max. Resolution 3840 x 2160
Min. Illumination Lens 1 : chromatic：0.005 Lux @ (F1.3，AGC ON) ; monochrome：0.0005 Lux @(F1.3，AGC ON) Lens 2 : chromatic：0.02 Lux @ (F1.7，AGC ON) ; monochrome：0.02 Lux @(F1.7，AGC ON)
Day & Night Switch IR Cut Filter Automatically
Optical Image Stabilization Supported
Focal Length Lens 1: 6~216 mm Lens 2: 2.8 mm fixed lens
Aperture Lens 1: F1.3 - F4.6 Lens 2: F1.7
FOV Lens 1: Horizontal FOV: 59° to 2.0°, Vertical FOV: 34.2° to 1.1° , Diagonal FOV: 67.1° to 2.3° Lens 2: Horizontal FOV: 102°, Vertical FOV: 56°, Diagonal FOV: 123°,
Zoom Speed Approx. 4.6 s (optical lens, wide-tele)
Video Compression H.264, H.265, MJPEG
Video Format PS
Main Stream Lens 1 : 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 720 × 576) Lens 2 : 60 Hz; 30 fps (3840 x 2160, 3072 x 1728, 704 × 240, 352 x 240)
Sub Stream Lens 1 : 60 Hz: 12fps(1920 x 1080); 30 fps (1280 × 720, 704 x 480, 704 × 240, 352 x 240) Lens 2 : 60 Hz; 30 fps (1280 x 720, 704 × 240, 352 x 240)
Audio Compression G.711ulaw, G.711alaw, G.722.1
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1)
Wide Dynamic Range (WDR) 120 dB
Image Enhancement 3D DNR, Defog, EIS
Image Format JPEG
Screen Type LCD
Touchscreen Supported
Screen Size 2.0"
Resolution 320 × 240
RAM 2 GB
ROM 4 GB
IR Range Up to 100 m
IR Wavelength 850 nm
Positioning Mode GPS
Wi-Fi Frequency Band 2.412 to 2.472 GHz, 5.15 to 5.25 GHz, 5.725 to 5.875 GHz
Bluetooth BT 4.0
Cellular Network Available for models with '/GLE' : GSM: 850/900/1800 WCDMA: B1/B5/B8 FDD-LTE: B1/B3/B5/B7/B8/B20 TDD-LTE: B38/B40/B41
Wi-Fi Protocol 802.11 a/b/g/n/ac
Protocol HTTPS, RTSP, NTP, FTP
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Indicator 1 status indicator: charging/power on/power off
Button Power on/off
SIM Card Available for models with '/GLE': 1 (Micro-SIM)
Ethernet 1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)
Aviation Plug 10-Core Aviation Plug: supporting RS-232, RJ45 and power input 9-Core Aviation Plug: supporting RS-485, LINE IN/LINE OUT，5V output，Alarm I/O
Extended Storage Built-in 2 memory card slots, supporting TF card, up to 256 GB for each
License Plate Recognition Supported
Smart Event Vehicle recognition, face recognition, helmet detection, phone call, workwear detection, smoking detection, area invasion, intrusion detection (supports 4 areas)
Preset 256 arming locations
Movement Range (Pan) 360° endless
Movement Range (Tilt) -20° to 90° (Auto-flip)
Patrol Scan 8 Patrols
Operating Condition -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Operating System Linux
Storage Condition -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
Light Sensor Supported
MIC Supported
Speaker 2 Built-in speakers, Max. power consumption: 2.5 W, Max. sound pressure level: 102 dB (10 cm)
Web Browser Plug-in required live view: IE 10+
Dimension Kit: 500mm×395mm×257mm (19.7"×15.6"×10.1")
Power 12 VDC, 5.0 A, max. 60 W
Weight 11.75 kg (25.9 lb.)
Client Hik-Connect, HikCentral Pro, HikCentral Master
Installation Method Wall-Mounted, Tripod-Mounted, Movable Bracket

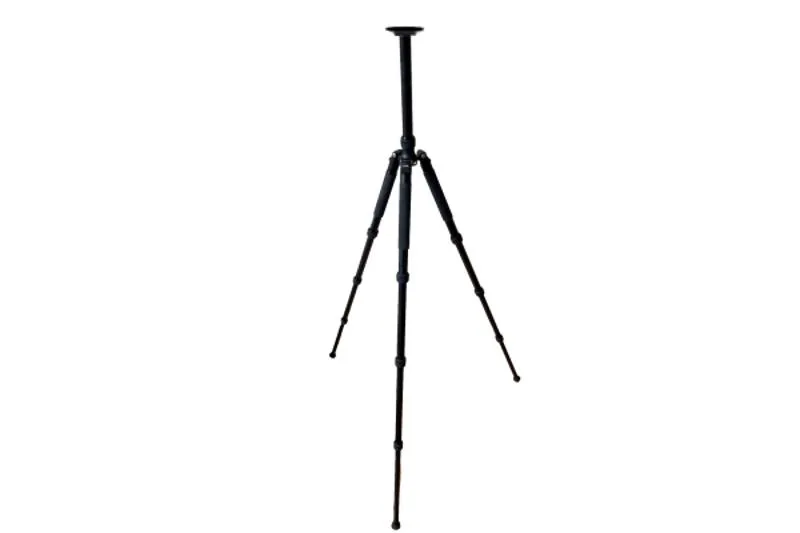

Packing List 1×AC power cord 1×345 cm Composite cable 1×Lithium-ion battery 1×Mounting support plate for tripod 1×Safety rope 1×C92-screwdriver 1×500x395x257 mm portable plastic box 1×Battery Charger DS-MH1491 1×tripod DS-MH1697
Battery Life Up to 9h in 4MP resolution¹
Battery Type Lithium-ion battery, dismountable
Capacity 13400 mAh
Charging Time ≤ 4 h
RF CE-RED : EN 301 489-1 V2.2.3:2019; EN 301 489-3 V2.2.2:2019; EN 301 489-17 V3.2.4:2020; EN 301 489-19 V2.2.1:2022; EN 301 489-52 V1.2.1:2021; EN 55032:2015/A11:2020; EN 55035:2017/A11:2020; EN 50130-4:2011/A1:2014; EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021; EN 300 328 V2.2.2:2019; EN 301 893 V2.1.1.1:2017; EN 301 440 V2.1.1:2017; EN 301 908-1 V15.1.1:2021; EN 301 908-2 V13.1.1:2020; EN 301 908-13 V13.2.1:2022; EN 303 413 V1.2.1:2021; EN 62479:2010; EN 50663:2017; EN 50385:2017; EN IEC 62311:2020; EN 62311:2008; EN 62368-1:2014/A11:2017
EMC CE-EMC：EN 55032:2015/A11:2020;EN 55035:2017/A11:2020;EN 50130-4:2011/A1:2014;EN IEC 61000-3-2:2019/A1:2021;EN 61000-3-3:2013/A2:2021
Safety CB：IEC 62368-1:2018 CE-LVD：EN 62368-1:2014/A11:2017
Environment CE-RoHS: 2011/65/EU
Protection IP66
