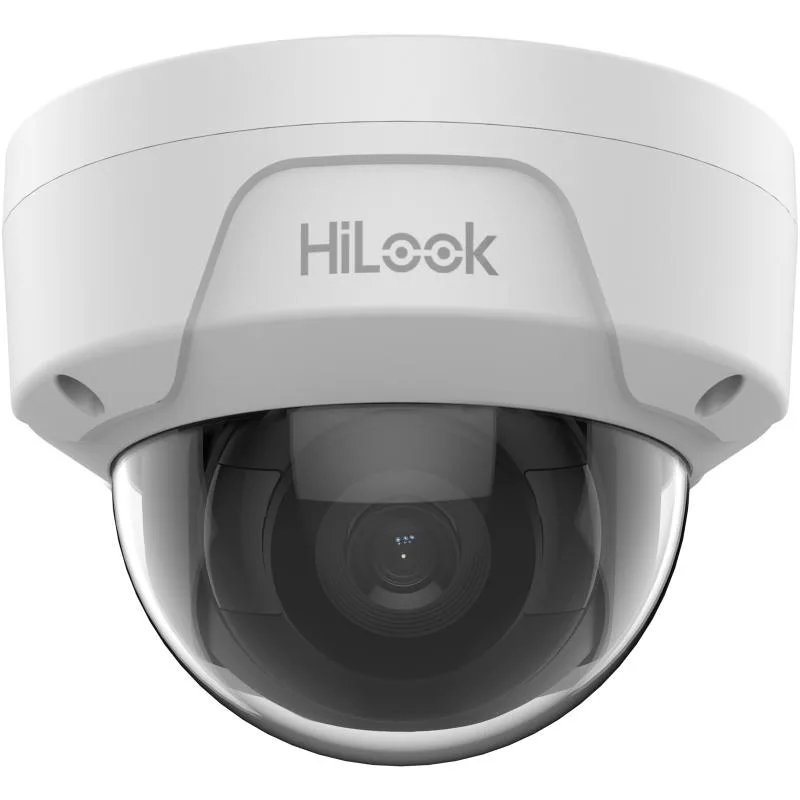

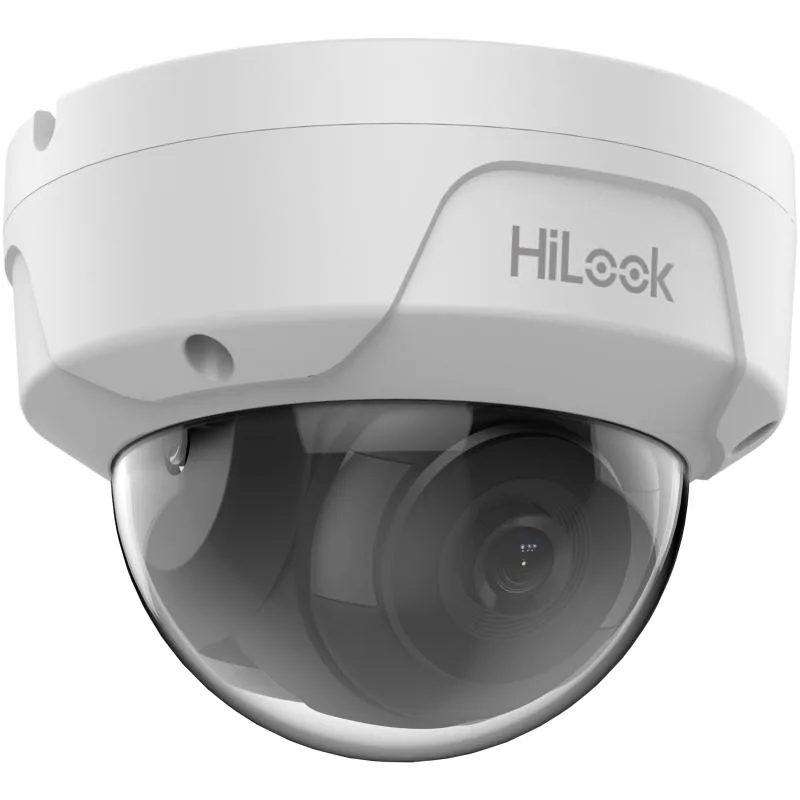

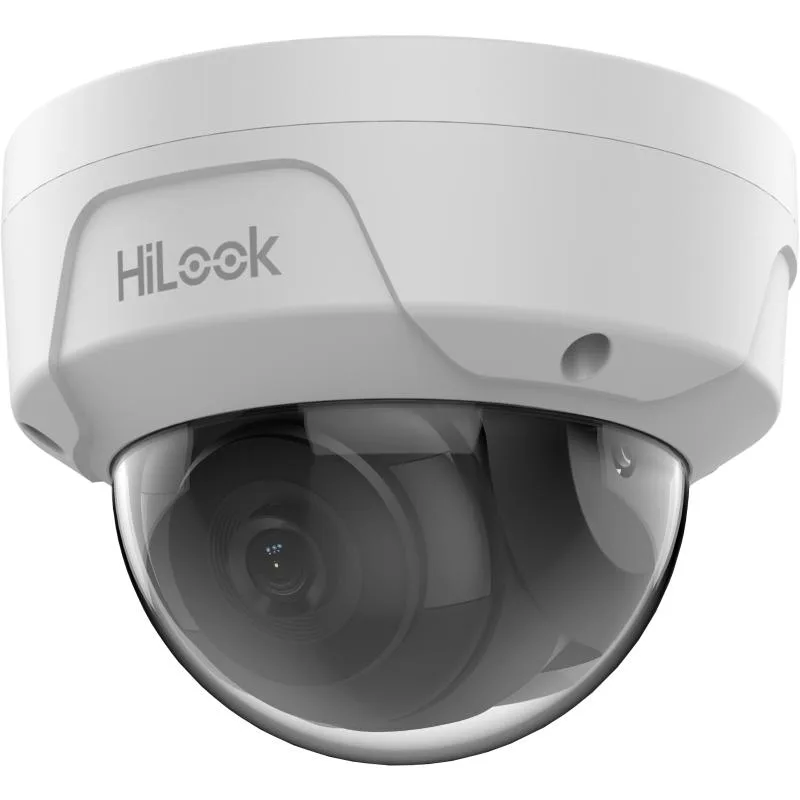

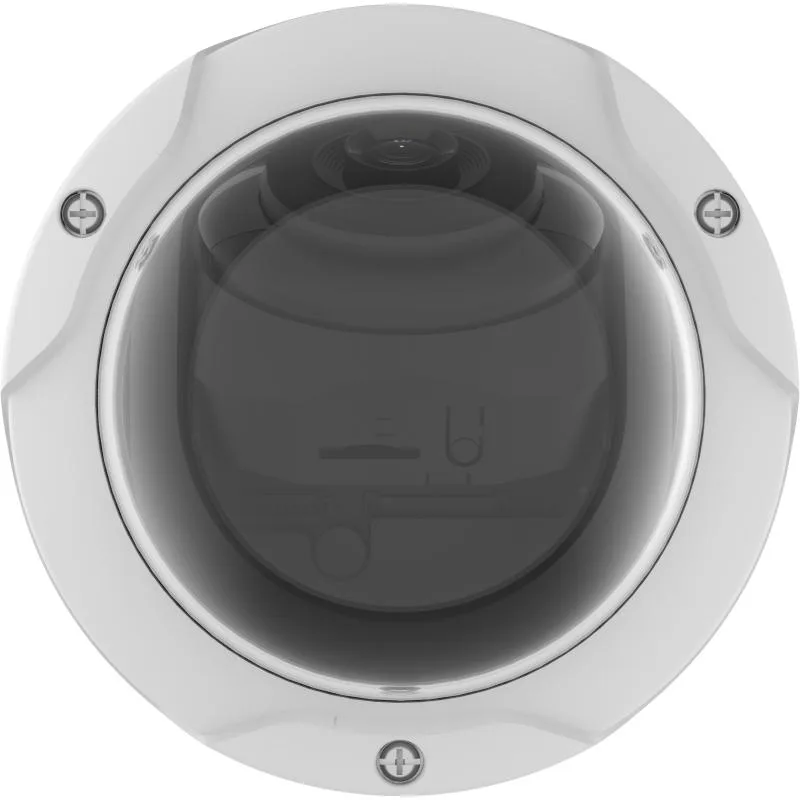

Hikvision IPC-D120HA - Dome IP kamera

Markaya göre filtrele

Hikvision IPC-D120HA - Dome IP kamera
Hikvision

Hikvision IPC-D120HA - Dome IP kamera

Model kodu
IPC-D120HA
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Support Human and Vehicle Detection. Water and dust resistant (IP67) and vandal resistant (IK10). Efficient H.265+ compression technology to save bandwidth and storage. Easy installation with Power over Ethernet (PoE) technology

Teknik özellikler

Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 58°, diagonal FOV 123° 4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96°
Lens Mount M12
Iris Type Fixed
Aperture F2.0
DORI 2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m 4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Region of Interest (ROI) 1 fixed region for main stream
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200, HiLookVision
Web Browser Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, trigger capture, send email
Power 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material Metal & Plastic
Dimension Ø110.8 mm × 84.7 mm (4.4" × 3.3")
Package Dimension 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight Approx. 520 g (1.1 lb.)
With Package Weight Approx. 720 g (1.6 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email
EMC FCC SDoC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014 RCM: AS/NZS CISPR 32: 2015
Safety CB: IEC 62368-1:2014+A11 CE-LVD: EN 62368-1:2014/A11:2017
Environment CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002

Dokümanlar

Data Sheet - 2 MP MD 2.0 Fixed Dome Network Camera User Manual - 2 MP MD 2.0 Fixed Dome Network Camera
