Hikvision IPC-D140H(-M) - Dome IP kamera
Hikvision

Hikvision IPC-D140H(-M) - Dome IP kamera

Model kodu
IPC-D140H(-M)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

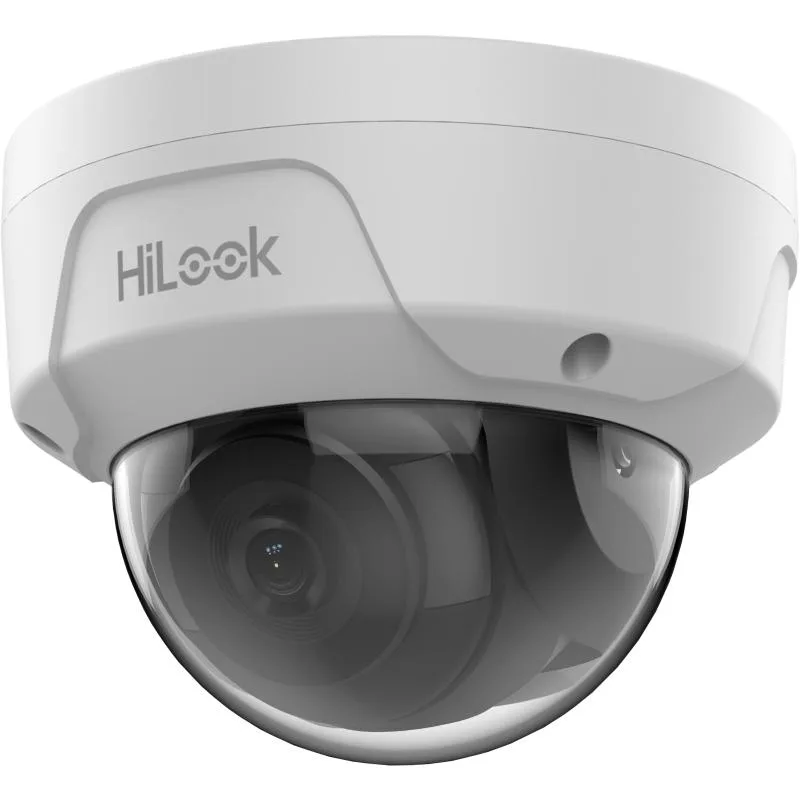

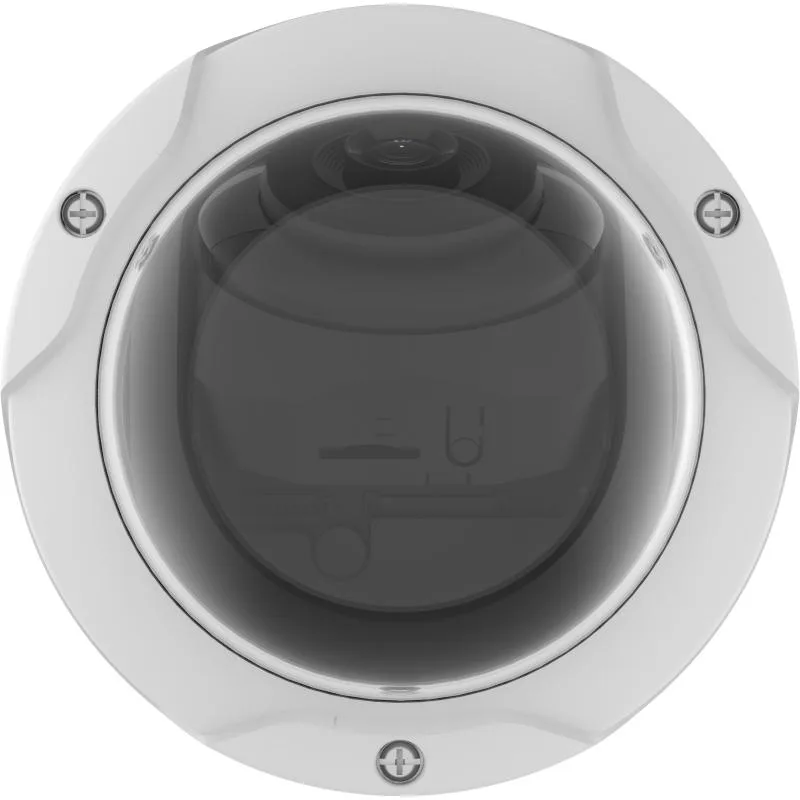

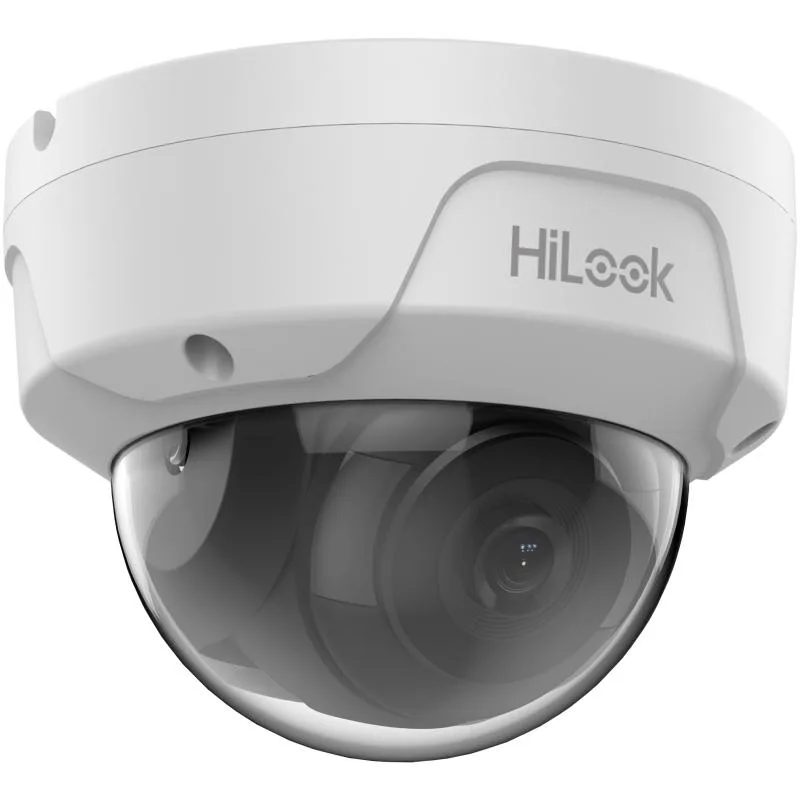

High quality imaging with 4 MP resolution. Efficient H.265+ compression technology to save bandwidth and storage. Clear imaging against strong back light due to 120 dB true WDR technology. Water and dust resistant (IP67) and vandal resistant (IK10). 3D DNR technology delivers clean and sharp images. Easy installation with Power over Ethernet (PoE) technology

Teknik özellikler

Image Sensor 1/3" progressive scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100, 000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°
Focal Length & FOV 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
Lens Mount M12
Focus Fixed
Aperture F2.0
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Iris Type Fixed
Supplement Light Type IR
Supplement Light Range Up to 30 m
IR Wavelength 850 nm
Smart Supplement Light Yes
Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, 3D DNR
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection, video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, send email
Power 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension Ø111 mm × 82.4 mm (Ø 4.4" × 3.2")
Package Dimension 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight Approx. 360 g (0.8 lb.)
With Package Weight Approx. 560 g (1.2 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Dokümanlar

Data Sheet - 4 MP Fixed Dome Network Camera Quick Start Guide - 4 MP Fixed Dome Network Camera User Manual - 4 MP Fixed Dome Network Camera Network Camera-V5.7.26 Release Note-E8 - 4 MP Fixed Dome Network Camera
