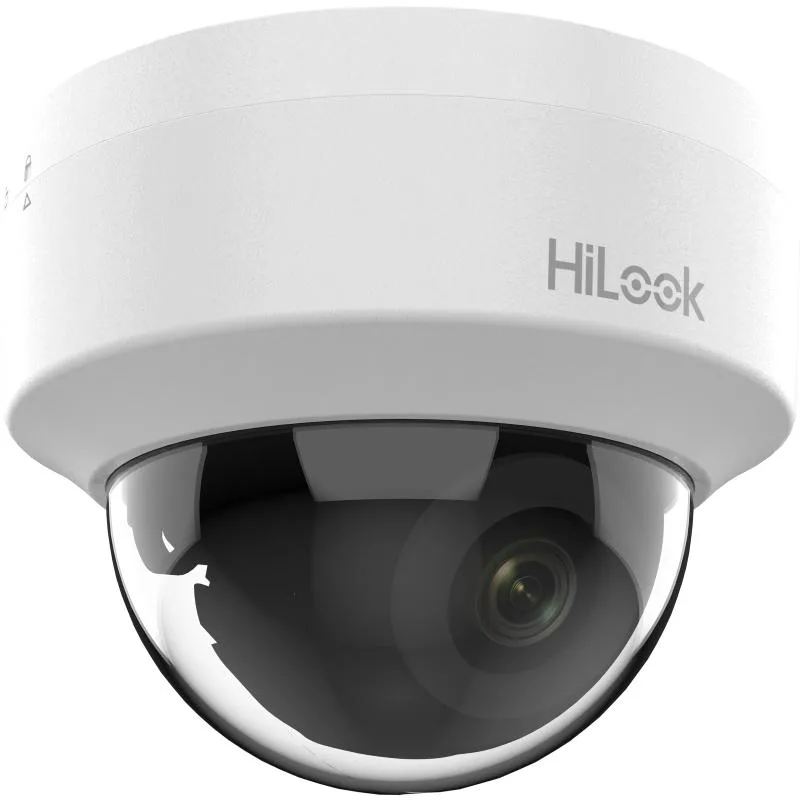

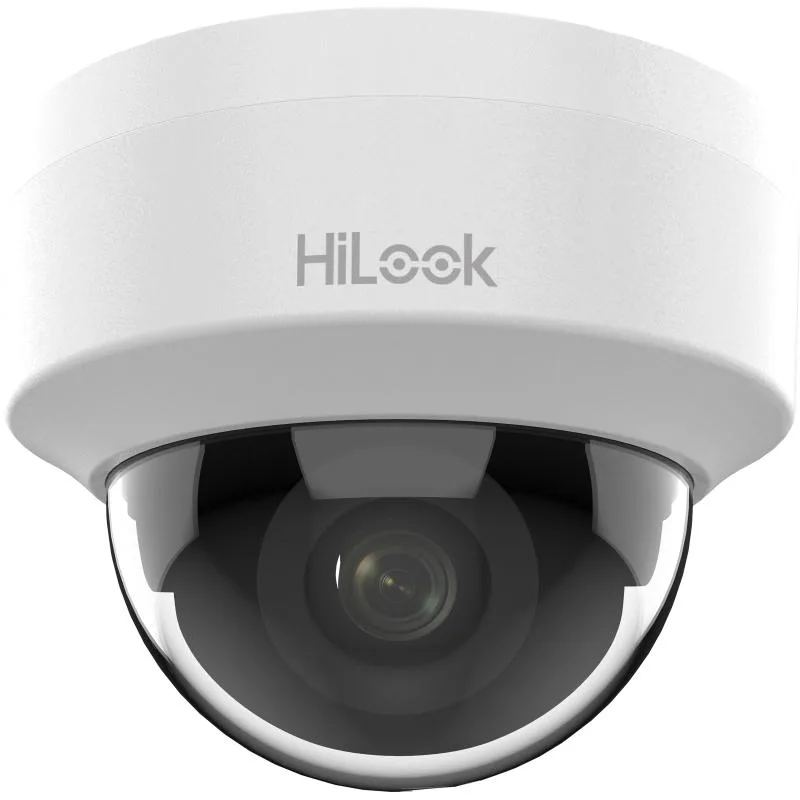

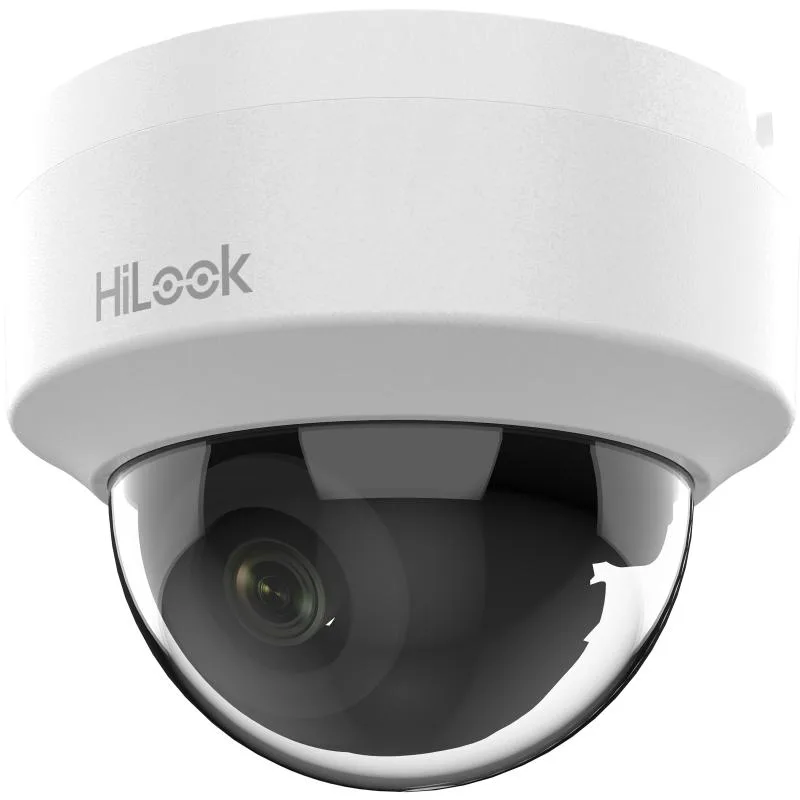

Hikvision IPC-D141H-C - Dome IP kamera

Markaya göre filtrele

Hikvision IPC-D141H-C - Dome IP kamera
Hikvision

Hikvision IPC-D141H-C - Dome IP kamera

Model kodu
IPC-D141H-C
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Easy installation with Power over Ethernet (PoE) technology

Teknik özellikler

Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
Lens Mount M12
Iris Type Fixed
Aperture F2.2
Depth of Field 2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞
DORI 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
Supplement Light Type IR
Supplement Light Range Up to 20 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile T), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Client iVMS-4200
Web Browser Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Privacy Mask 1 programmable polygon privacy mask
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event Motion detection (support alarm triggering by specified target type), exception
Linkage Notify surveillance center, send email, trigger capture
Power 12 VDC ± 25%, 0.4 A, max. 4.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 0, max. 6.5 W
Material Plastic
Dimension Ø110.8 mm × 85.2 mm (Ø4.36" × 3.35")
Package Dimension 163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
Weight Approx. 240 g (0.5 lb.)
With Package Weight Approx. 400 g (0.8 lb.)
Storage Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015
Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Dokümanlar

Data Sheet - 4 MP Fixed Dome Network Camera Quick Start Guide - 4 MP Fixed Dome Network Camera User Manual - 4 MP Fixed Dome Network Camera Installation Guide - 4 MP Fixed Dome Network Camera
