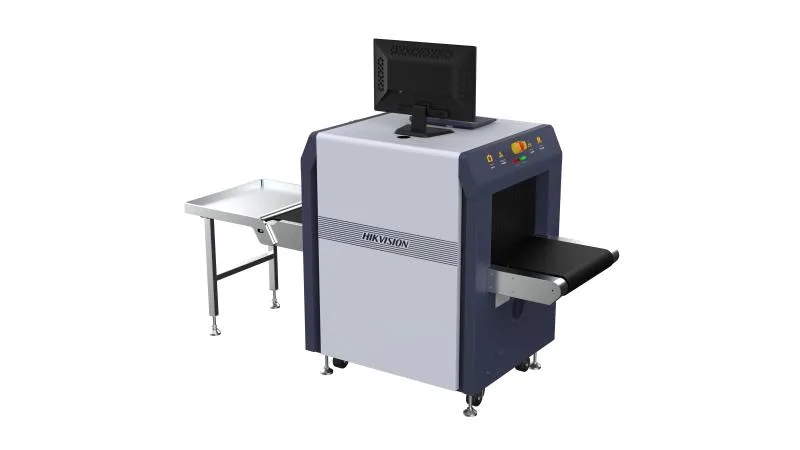

Hikvision ISD-SC5030SA-2CL

Markaya göre filtrele

Hikvision ISD-SC5030SA-2CL
Hikvision

Hikvision ISD-SC5030SA-2CL

Model kodu
ISD-SC5030SA-2CL
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

AI-XSP HD image algorithm:Advanced image processing technology image resolution, the minimum resolution AWG40 (φ0.0787mm) copper wire. Radiation leakage reaches environmental level. Supports access to Hik-central, and implement the data upload. Data storage supports local storage, view and playback of the images and alarm information. Event tracing can correlate combine X-ray image with passenger video information to realize human package tracing. Brand new appearance and exquisite manufacturing technology, high standard quality control give products high reliability and long life

Teknik özellikler

Tunnel Size 500mm(W) × 300mm(H)
Max. load 100 kg (220.46 lb)
Conveyor speed 0.22 m/s
Penetration Standard 8mm, 10+ mm available by customize
Wire resolution 40AWG
Spatial resolution Vertical: 1.0 mm (0.04") Horizontal: 1.0 mm (0.04")
Power Consumption 0.5 kw
Weight 290 kg (639.34 lb)
X-ray dose per inspection < 5 μGy
X-ray leakage < 1μGy/h
X-ray generator Anode Voltage: Standard 80 kV, 100% Oil Cooling
Power Supply 220 VAC/110 VAC (-10% to +15%), 50 Hz /60 Hz(±3 Hz)
Working Temperature 0 °C to 40 ° C (41 °F to 104 °F)
Working Humidity 0% to 90%
Dimension 1586mm × 1160mm × 760mm (L x Hx W)

Dokümanlar

Data Sheet - Intelligent X-Ray Security Inspection System
