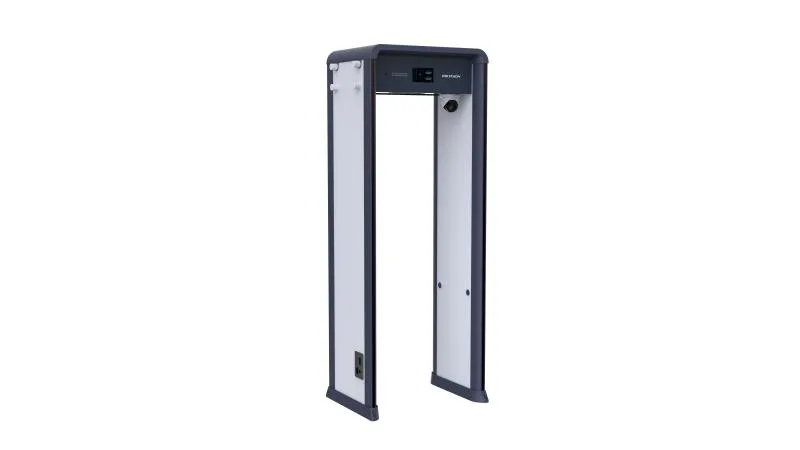

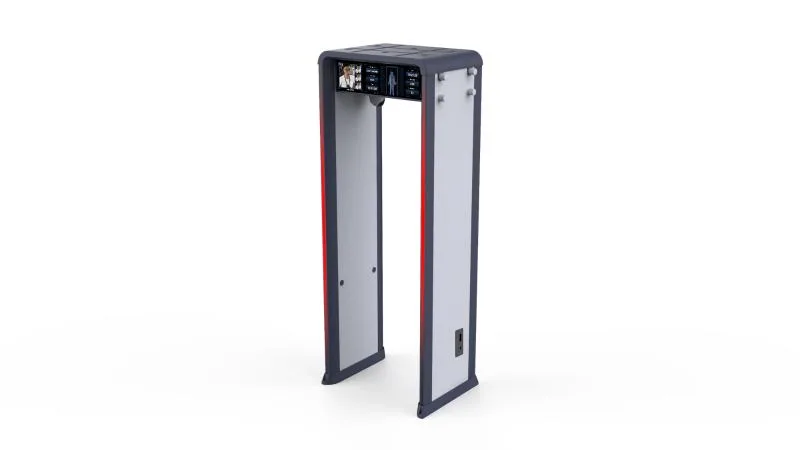

Hikvision ISD-SMG533LC-I

Markaya göre filtrele

Hikvision ISD-SMG533LC-I
Hikvision

Hikvision ISD-SMG533LC-I

Model kodu
ISD-SMG533LC-I
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Metal Detection: Detect metals as small as a paperclip, enable effective inspection of prohibited items.. Network Connectivity: Operate as a standalone unit with the ability to connect to network, allowing parameter configuration through a web-based interface. Additionally, it can be integrated with HCP or other platform for the aggregation of passenger flow and alarm data. Display: Features a 7-inch LCD screen (front) and a 29-inch LCD screen (back). 7-inch screen displays passenger flow and alarm data, while 29-inch screen displays monitoring data, facial captures, zone indications, and alarms.. Remote Control: Equipped with an IR remote control for remote parameter configuration.. Multi-Zone Alarm: Supports up to 33 zones. When metals are located at different areas, the simultaneous alarms will be triggered and indicating the locations accordingly. Additionally, it can accurately detect a thrown-through metal object.. Ultra-Low Detection Height: Can detect metals located higher than 3cm above the ground.. Power-On Self-Diagnosis: The system performs a self-check and displays the diagnostic results upon startup.. Monitor and Capture: Equipped with a 2 million pixel IPC for continuous recording and capturing of images, allowing for easy review and retrieval.

Teknik özellikler

Tunnel Size 2005mm x727mm x 600mm (H x W x D)
Dimension 2287mm x 872mm x 665mm (H x W x D)
Operating Temperature -10°C to 55°C
Power 100~240V, 50/60Hz
Weight 95KG
Network Interface 1
Power Interface 1
Alram Output 2-channel alarm output port

Dokümanlar

Data Sheet - Walk-though Metal Detector 533 series Walk Through Metal Detector V1.2.1_build230726 Release Note - Walk-though Metal Detector
