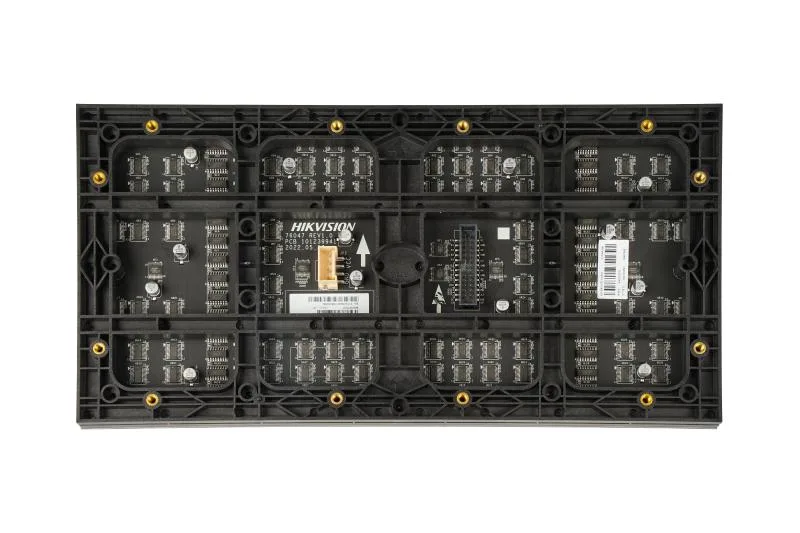

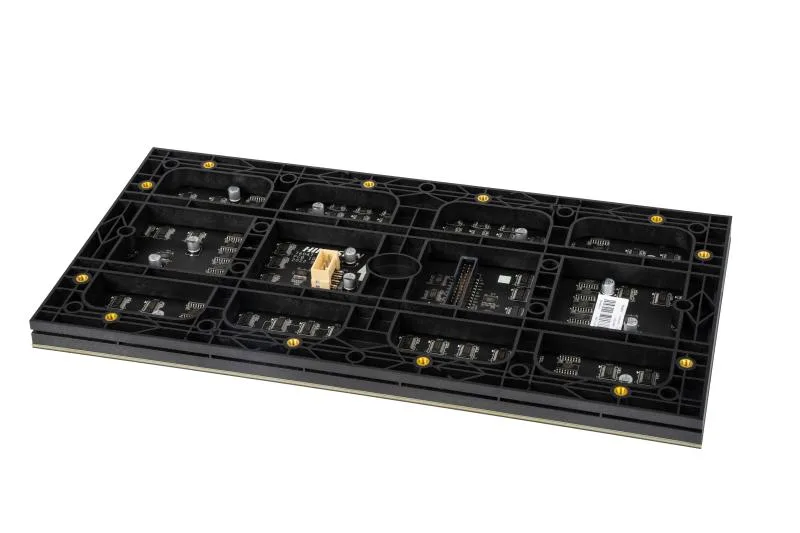

Hikvision LED-D41Q15CA-1PH

Markaya göre filtrele

Hikvision LED-D41Q15CA-1PH
Hikvision

Hikvision LED-D41Q15CA-1PH

Model kodu
LED-D41Q15CA-1PH
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Supports seamless image stitching in any direction, size and shape and displays stitched images uniformly and consistently without black lines. Uses the ultra-high refresh rate to display delicate and smooth video images. Uses the broadcast grayscale processing to show more image details. High brightness and high contrast

Teknik özellikler

Product Model LED-D41Q15CA-1PH
Pixel Configuration SMD
Pixel Pitch 1.538mm
Lamp Bead Dimensions 1212
Dimensions of Module 320 x 160
Module Resolution 208 x 104
Pixel Density 422500
Signal Source Interface HUB320
White Balance Brightness 500 nits
Color Temperature 3000—10000 adjustable
Viewing Angle 160°(H)/160°(V)
Brightness Uniformity ≥97%
Color Uniformity Within ±0.003Cx,Cy
Contrast Ratio 3000:1
Refresh Rate 3840 Hz
Scanning Amount 52
Max. Consumption ≤ 600 W/㎡
Average Consumption ＜ 290 W/㎡
Input Voltage DC：4.5~5V
Working Temperature -10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
Working Humidity 10% to 80% RH (without condensation)
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity 10% to 85% RH (without condensation)
Package Dimensions (W × H × D) 673 (W) mm × 248 (H) mm × 390 (D) mm（（20 cabinets in 1 box））
Packing List Several high magnetic brackets Several LED lamp beads and IC components Several signal cables and power cables
Gross Weight 0.55 Kg
Net Weight 0.48 Kg

Dokümanlar

Data Sheet - LED-D41Q15CA-1PH,indoor,1.5mm,320*160mm,3840hz
