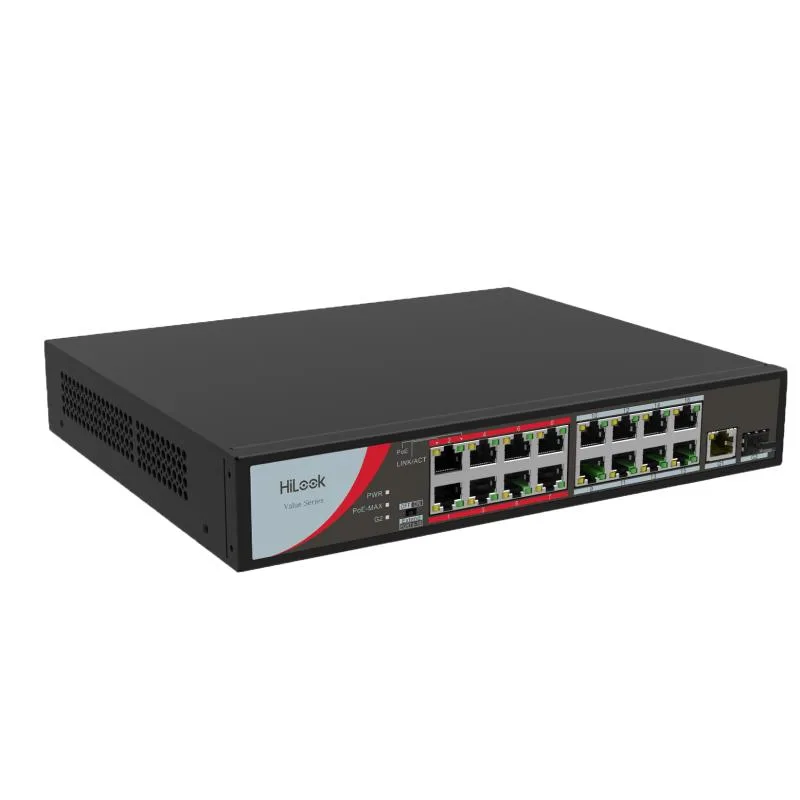

Hikvision NS-0318P-130(B) - Güç kaynağı/adaptör/PoE

Model kodu: NS-0318P-130(B)
Sistem: Kamera sistemi
Kategori: Güç kaynağı/adaptör/PoE

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Unmanaged switch with 16 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port. All ports support 6 kV lighting protection. 130 W PoE power budget. Maximum transmission distance is 250 meters for port 9 to 16 in "extend" mode. MAC address auto learning and auto aging

Teknik özellikler

Shell	Metal material
Operating temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Power supply	100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Storage humidity	5% to 95% (no condensation)
Net weight	1.8 kg (4.0 lb)
Gross weight	2.58 kg (5.69 lb)
Dimension (L × H × D)	266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
Operating humidity	5% to 95% (no condensation)
Power consumption in idle	20 W
Port number	16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Port type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode	Store-and-forward switching
Working mode	Standard mode (default); Extend mode
MAC address table	4 K
Switching capacity	7.2 Gbps
Packet forwarding rate	5.356 Mpps
Internal cache	2.75 Mbits
High priority ports	Ports 1 to 8
Ports for long-distance transmission	Ports 9 to 16
PoE standard	IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply. Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE port	Ports 1 to 16
Max. port power	30 W
PoE power budget	130 W
Max. power consumption	150 W

Dokümanlar

Data Sheet - 16 Port Fast Ethernet Unmanaged POE Switch Communication Matrix - 16 Port Fast Ethernet Unmanaged POE Switch
