Hikvision PTZ-N2C400M-DE - PTZ IP kamera
Hikvision

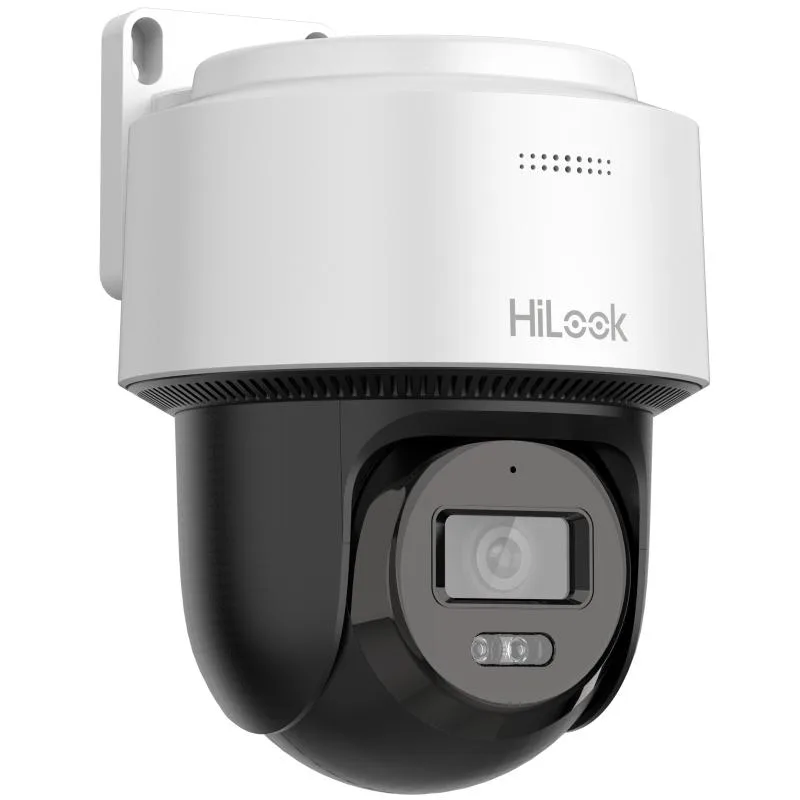

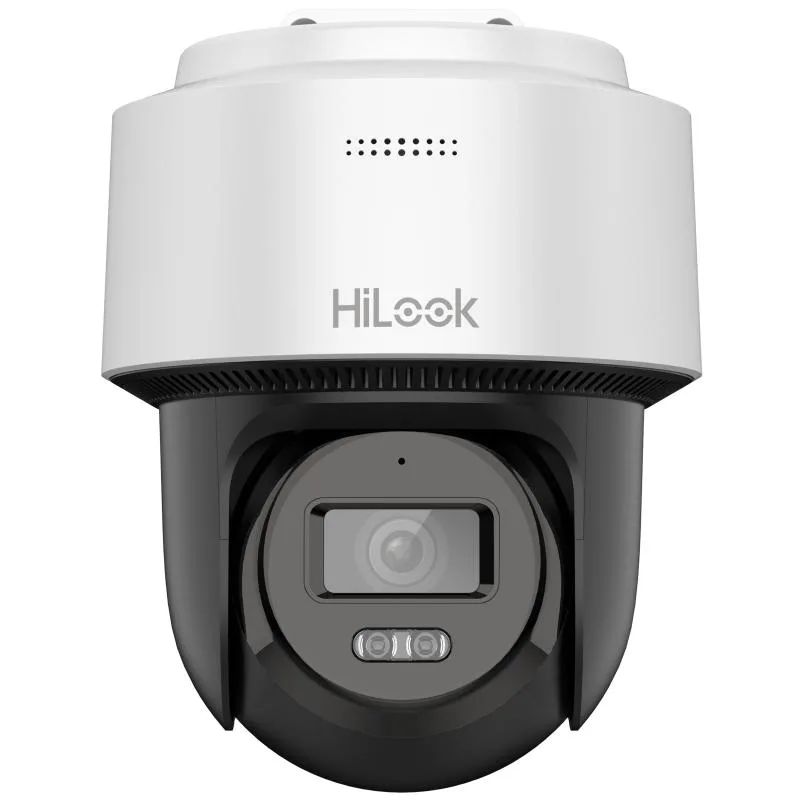

Hikvision PTZ-N2C400M-DE - PTZ IP kamera

Model kodu
PTZ-N2C400M-DE
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 4 MP resolution. Smart Hybrid Light: advanced technology with long range. Hik-Connect cloud service and APP for remote management and views of devices. Built-in microphone and speaker for real-time audio security. Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB. Water and dust resistant IP66

Teknik özellikler

Image Sensor 1/3″ Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @(F1.2, AGC ON), B/W: 0 Lux with IR
Focal Length 2.8 mm/ 4 mm
FOV 2.8 mm, horizontal FOV 97°, vertical FOV 52.3°, diagonal FOV 114.3° 4 mm, horizontal FOV 79°, vertical FOV 42.4°, diagonal FOV 93.3°
Aperture F1.6
Supplement Light Type IR & White Light
Supplement Light Range White Light Distance: up to 30 m IR Distance: up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Movement Range (Pan) 0° to 340°
Movement Range (Tilt) -5° to 105°
Pan Speed Pan speed: configurable from 4° to 21°/s
Tilt Speed Tilt speed: configurable from 4° to 19°/s
Video Compression H.265, H.264, MJPEG
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
Video Bit Rate 32 Kbps to 8 Mbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
Audio Bit Rate 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Protocols IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
API Open Network Video Interface, ISAPI, SDK
Image Settings Saturation, brightness, contrast, sharpness
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC, 3D DNR
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
Built-in Microphone Yes
Built-in Speaker Yes
Reset Yes
Basic Event Motion detection
Alarm Linkage Upload to FTP, notify surveillance center, send email, upload to memory card
Operating Condition With supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing) With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)
General Function Mirror, password protection, watermark
Power 12 VDC ± 25%, 1 A, max. 12 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 12 W
Dimensions Camera dimension: 162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2") Package dimension: 205 mm × 167 mm × 289 mm (8.1" × 6.6" × 11.4")
Weight Camera weight: 600g(1.32lb.) With package weight: 900g(2.0lb.)
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016)
Protection IP66 (IEC 60529-2013)

Dokümanlar

Data Sheet - 2-inch 4 MP 0X Powered by DarkFighter IR Network Speed Dome Quick Start Guide - 2-inch 4 MP 0X Powered by DarkFighter IR Network Speed Dome User Manual - 2-inch 4 MP 0X Powered by DarkFighter IR Network Speed Dome Network Camera-V5.7.26 Release Note-E8 - 2-inch 4 MP 0X Powered by DarkFighter IR Network Speed Dome

Bu ürünü satan firmalar

1 firma
TESAN İLETİŞİM A.Ş
Bahçelievler, İstanbul
