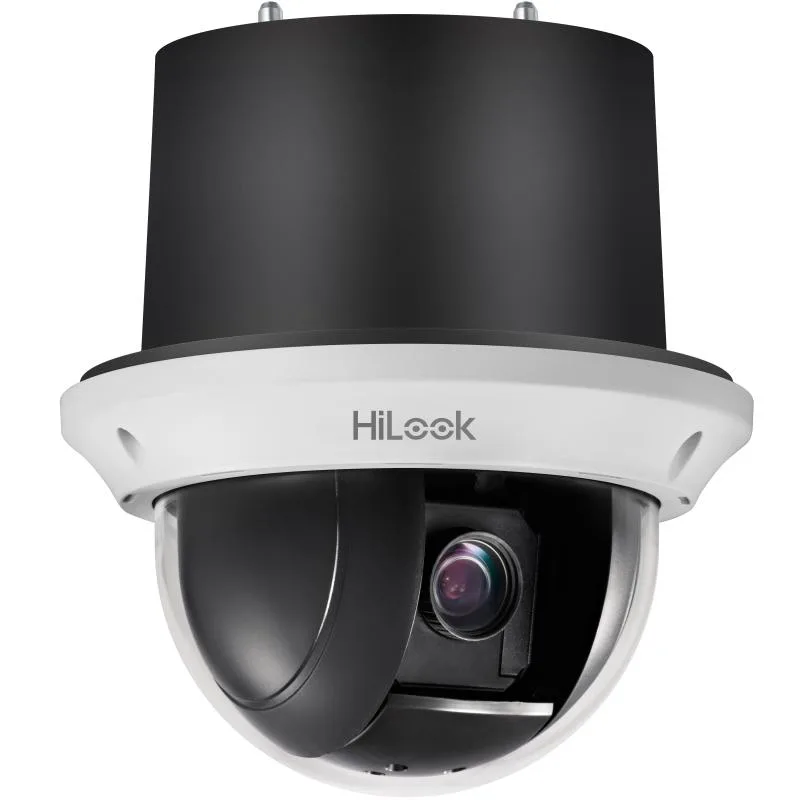

Hikvision PTZ-N4215-DE3 - PTZ IP kamera

Markaya göre filtrele

Hikvision PTZ-N4215-DE3 - PTZ IP kamera
Hikvision

Hikvision PTZ-N4215-DE3 - PTZ IP kamera

Model kodu
PTZ-N4215-DE3
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Four-inch 2 MP camera with pan, tilt and zoom (15x) ability. Efficient H.265+ compression technology to save bandwidth and storage. Clear imaging against strong back light due to 120 dB true WDR technology

Teknik özellikler

FOV Horizontal field of view: 53.8° to 4.0° (wide-tele),Vertical field of view: 31.9° to 2.3° (wide-tele),Diagonal field of view: 60.4° to 4.6°(wide-tele)
Focal Length 5 mm to 75 mm, 15× optical
Zoom Speed Approx. 2.4 s (optical lens, wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.0
Basic Event Detection Motion Detection, Video Tampering Detection, Exception Detection
Smart Detection Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
ROI Main stream, sub-stream and third stream respectively support four fixed areas.
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. ,3 levels: Administrator, Operator and User
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution 1920 × 1080
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Network Interface 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)
AGC Auto/Manual
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON)
White Balance Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16×
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Material ADC 12, PC, PMMA
Dimensions Φ165 mm × 168 mm (Φ 6.5"×6.6") (In-ceiling mounting indoor model)
Weight Approx. 2 kg (4.41 lb)
Protection Level TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power 12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max.: 18 W
Working Temperature -10°C to 55°C (14°F to 131°F)
Working Humidity ≤ 90%
Movement Range (Pan) 360° endless
Pan Speed Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
Movement Range (Tilt) From 0° to 90° (Auto-flip)
Tilt Speed Configurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Status Display Support
Preset Freezing Support
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
H.264+ Support
H.265+ Support
H.264 Type Baseline Profile/Main Profile/High Profile
Video Compression Main Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
H.265 Type Main Profile
Video Bitrate 32 Kbps to 16384 Kbps
SVC Support

Dokümanlar

Data Sheet - 4-inch 2 MP 15X Powered by DarkFighter Network Speed Dome Quick Start Guide - 4-inch 2 MP 15X Powered by DarkFighter Network Speed Dome User Manual - 4-inch 2 MP 15X Powered by DarkFighter Network Speed Dome
