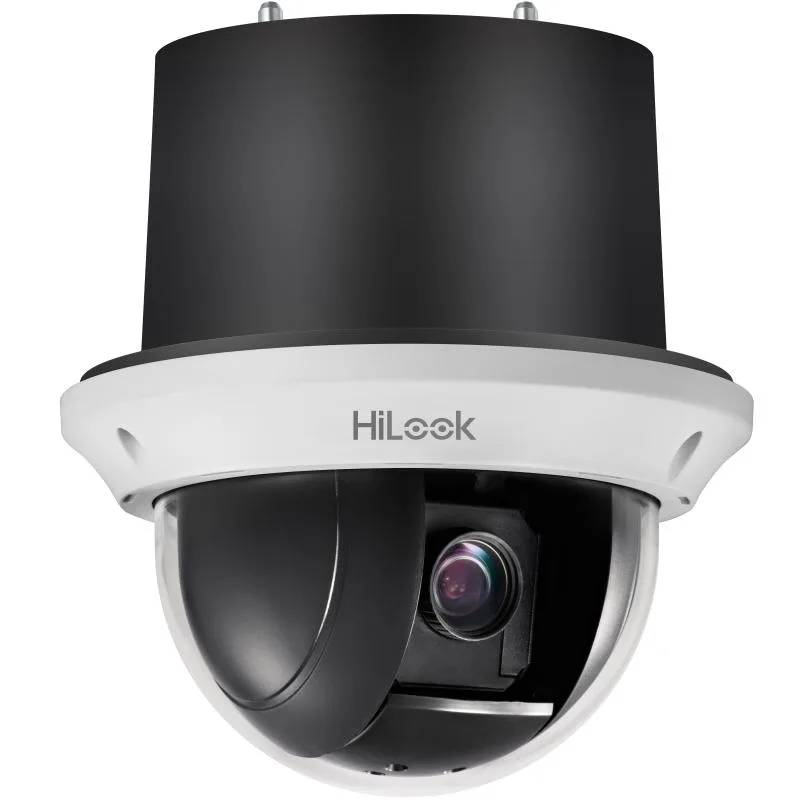

Hikvision PTZ-T4215-D3 - PTZ IP kamera

Markaya göre filtrele

Hikvision PTZ-T4215-D3 - PTZ IP kamera
Hikvision

Hikvision PTZ-T4215-D3 - PTZ IP kamera

Model kodu
PTZ-T4215-D3
Sistem
Kamera sistemi
Kategori
PTZ IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Four-inch 2 MP camera with pan, tilt and zoom (15x) ability. Clear imaging against strong back light due to 120 dB true WDR technology. 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Teknik özellikler

Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON)
Shutter Speed PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Zoom 15 × optical, 16 × digital
Focal Length 5 mm to 75 mm, 15 × optical
FOV Horizontal FOV: 53.8° to 4.0° (wide to tele)
Focus Auto, semi-auto, manual
Aperture F1.6 to F3.5
Zoom Speed Approx. 2.4 s (optical, wide to tele)
Movement Range (Pan) 360° endless
Movement Range (Tilt) -5° to 90° (auto flip)
Pan Speed Pan manual speed: 0.1° to 100°/s Pan preset speed: 100°/s
Tilt Speed Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Preset Freezing Yes
Patrol Scan 10 patrols, up to 32 presets for each patrol
Pattern Scan 5 patterns, record time over 10 minutes for each scan
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display Yes
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory Yes
Frame Rate 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)
Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)
Image Settings AGC, white balance
Wide Dynamic Range (WDR) ≥ 120 dB
Image Stabilization EIS
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 programmable privacy masks
Regional Focus Yes
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm inputs, 1 alarm output
RS-485 Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
Power 12 VDC, max. 12 W
Dimension Ø 165 mm × 168 mm (Ø 6.5" × 6.6")
Weight Approx. 2 kg (4.41 lb.)
Operating Condition -10° C to 50° C (14° F to 122° F). Humidity 90% or less
Language English
Protection TVS 4,000 V lightning protection, surge protection and voltage transient protection

Dokümanlar

Data Sheet - 4-inch 2 MP 15X Powered by DarkFighter Analog Speed Dome Quick Start Guide - 4-inch 2 MP 15X Powered by DarkFighter Analog Speed Dome User Manual - 4-inch 2 MP 15X Powered by DarkFighter Analog Speed Dome
