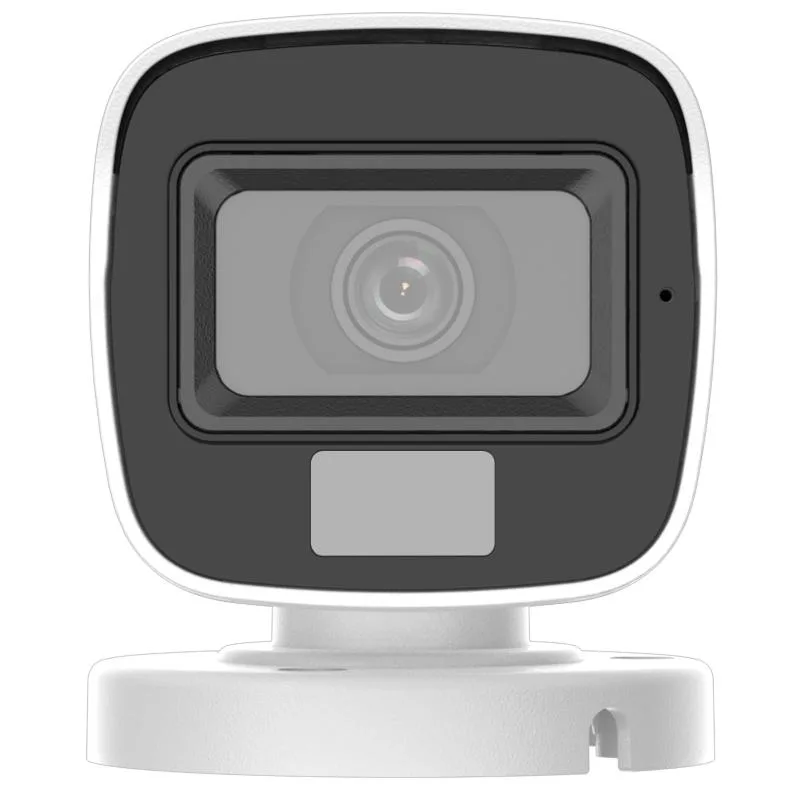

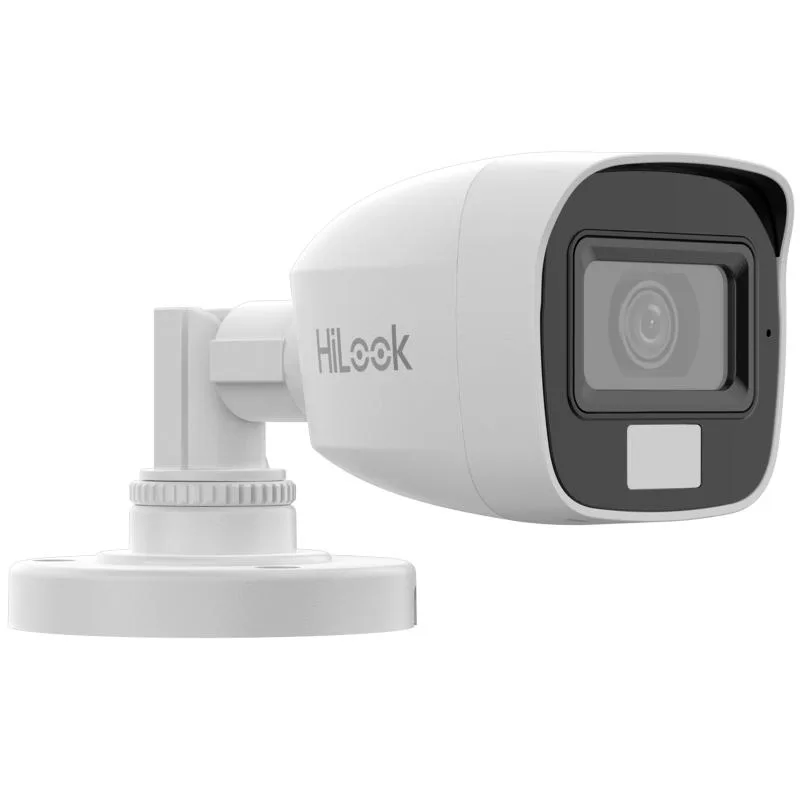

Hikvision THC-B157-LPS - Bullet IP kamera

Markaya göre filtrele

Hikvision THC-B157-LPS - Bullet IP kamera
Hikvision

Hikvision THC-B157-LPS - Bullet IP kamera

Model kodu
THC-B157-LPS
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 3K, 2960 × 1665 resolution. 2.8 mm, 3.6 mm fixed focal lens. Up to 20 m IR distance for bright night imaging. Up to 20 m white light distance for bright night imaging. One port for four switchable signals (TVI/AHD/CVI/CVBS）. Water and dust resistant (IP66). High quality audio with audio over coaxial cable, built-in microphone. Smart-Hybrid light, optimize your security with flexible lighting options

Teknik özellikler

Image Sensor 3K CMOS
Max. Resolution 2960 (H) × 1665 (V)
Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotate: 0 to 360°
Signal System PAL/NTSC
Lens Type 2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8° 3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
Lens Mount M12
Pickup Distance In a radius of up to 5 m
Amount 1
Supplement Light Range IR : up to 20 m White Light : up to 20 m
Supplement Light Type Smart, IR, White Light
Image Settings Brightness, Sharpness, Smart IR
Frame Rate TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps CVI: 4 MP @25 fps/30 fps CVBS: PAL/NTSC
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Day/Night Mode Auto/Color
Video Output Switchable TVI/AHD/CVI/CVBS
Material Plastic
Dimension Ø70 mm × 153.4 mm (Ø2.76" × 6.04")
Weight Approx. 170 g (0.38 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 2.9 W
Protection IP66

Dokümanlar

Data Sheet - 3K Dual Light Audio Fixed Mini Bullet Camera User Manual - 3K Dual Light Audio Fixed Mini Bullet Camera
